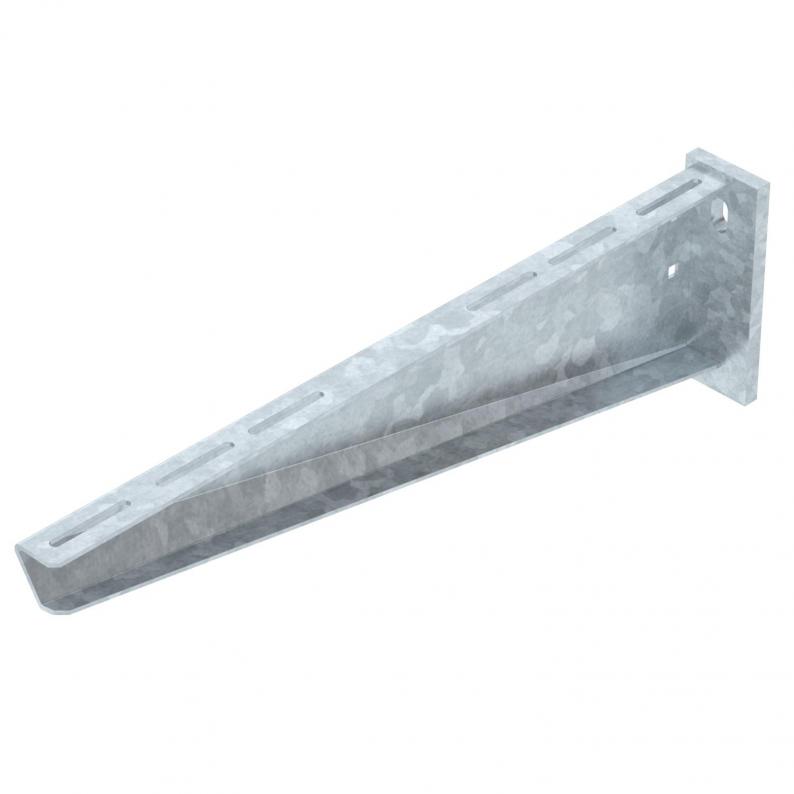

Wall and support bracket AW 55 FT
Item no. 6418607 | EAN 4012196512010
- Product description
-
Product descriptionHeavy-duty wall and support bracket with welded head plate.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B450mm Dimension A 50 mm Dimension B 460 mm Dimension H 130 mm F in kN 5,5 kN Height 130 mm Hole diameter 13,5 mm Length 50 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 460 mm Technical data
Load diagram, bracket, type AW 55
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet AW 55 46 FT / 6418607 , 0.21MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue fire protection systems , 2.10MB , pdfCatalogue Cable support systems , 2.10MB , pdfCatalogue Cable support systems , 45.23MB , pdfEU declaration of conformity AW 55 46 FT / 6418607 , 0.11MB , pdfUK Declaration of Conformity AW 55 46 FT / 6418607 , 0.09MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, U support systems , 1.76MB , pdf
