Underfloor duct MD 3-compartment, duct height 38 mm 2500 | 300 | 38 | 1.6 | 3
morepic-1 morepic-2

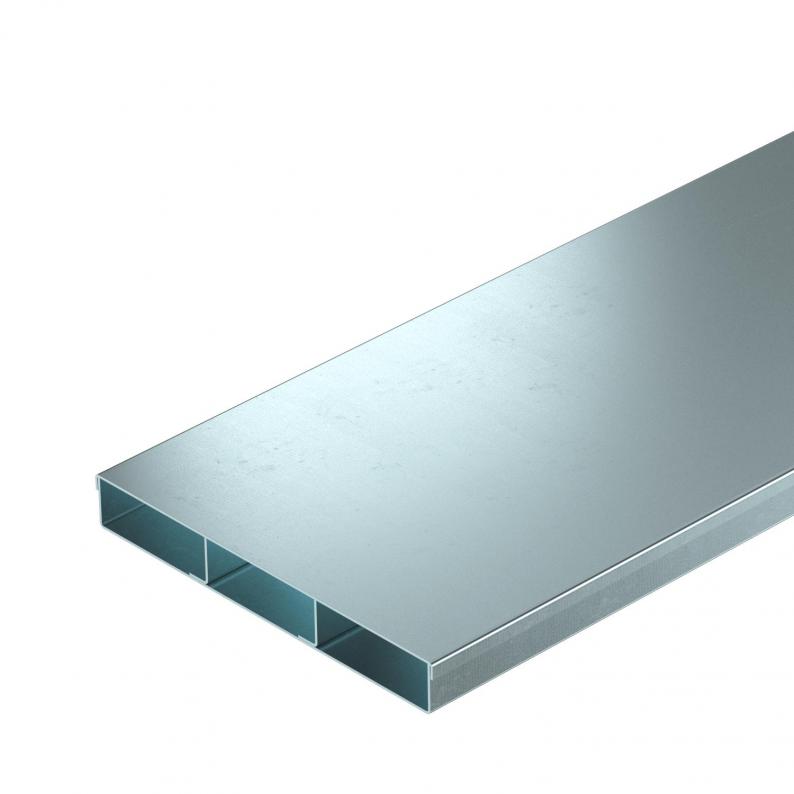

Underfloor duct MD 3-compartment, duct height 38 mm

Item no. 7490434 | EAN 4012197007232

2500 mm
1.6 mm
Product description

Product description

Underfloor installation duct for routing cables under the screed.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Application area Screed-covered
Decouplable no
Dimension 2500x300x38
Duct height, min. 38 mm
Floor plate yes
Material Steel
Material thickness 1,6 mm
Number of compartments 3 St.
Removable cover no
Surface Strip galvanized
Trunking width, min. 300 mm

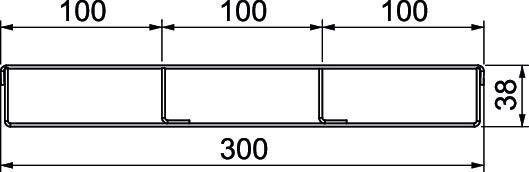

Dimensions

Dimension h 38 mm
Height 38 mm
Length 2500 mm
Width 300 mm
All types

All types

Types Length Width Height Material thickness Number of compartments Item no. Quantity SSU
MD 10025 1.6C1 2500 mm 100 mm 25 mm 1.6 mm 1 St. 7490323
2,5 m
MD 15025 1.6C1 2500 mm 150 mm 25 mm 1.6 mm 1 St. 7490333
2,5 m
MD 10038 2+2 C1 2500 mm - 25 mm 1.6 mm 1 St. 7490418
2,5 m
MD 30038 2+2 C3 2500 mm 300 mm 38 mm 1.6 mm 3 St. 7490434
2,5 m
