Underfloor duct MD 3-compartment, duct height 38 mm 2500 | 200 | 38 | 1.6 | 3
morepic-1 morepic-2

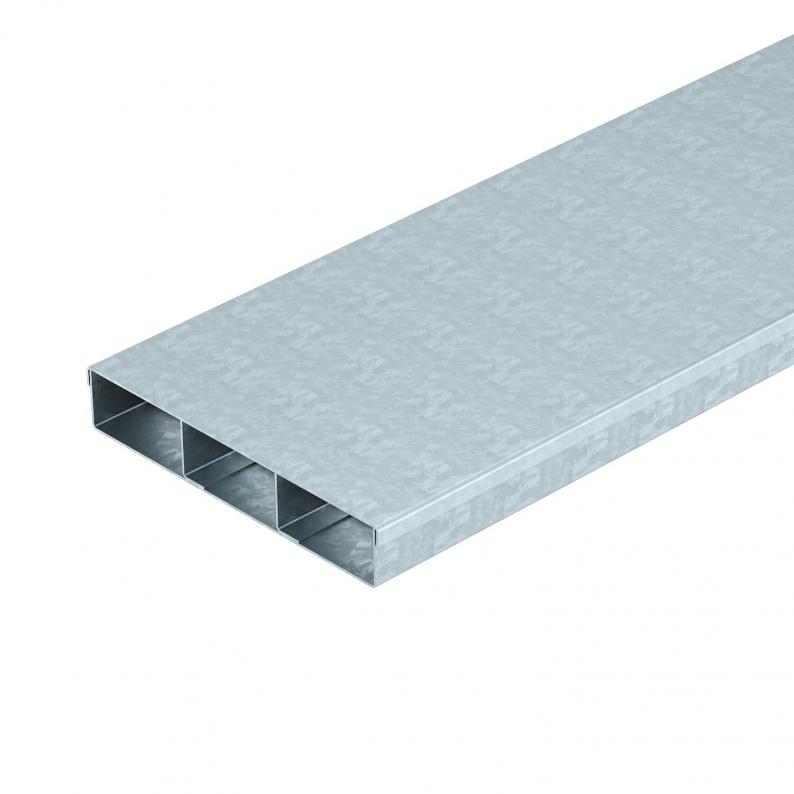

Underfloor duct MD 3-compartment, duct height 38 mm

Item no. 7490359 | EAN 4012196618682

2500 mm
38 mm
1.6 mm
3 St.
Product description

Product description

Underfloor installation duct for routing cables under the screed.
  • Nail device
Technical data

Technical data

Application area Screed-covered
Decouplable no
Dimension 2500x200x38
Duct height, min. 38 mm
Floor plate yes
Material Steel
Material thickness 1,6 mm
Number of compartments 3 St.
Removable cover no
Surface Strip galvanized
Trunking width, min. 200 mm

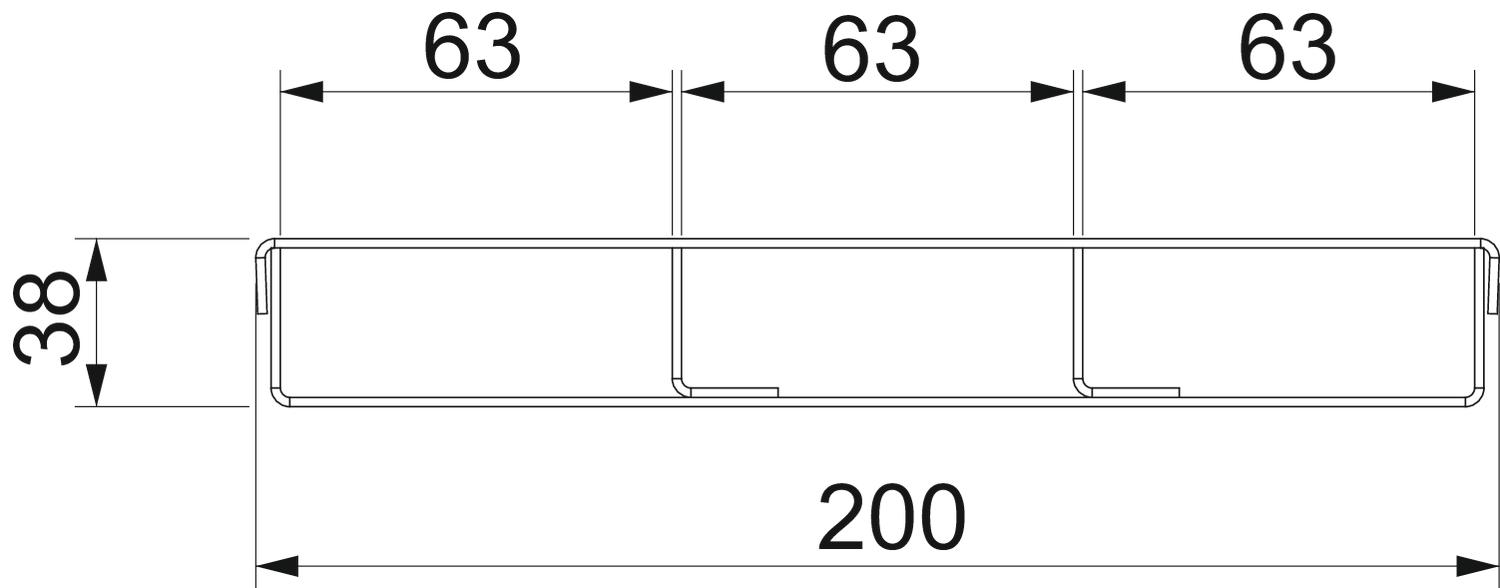

Dimensions

Dimension a 63 mm
Dimension b 63 mm
Dimension c 63 mm
Dimension h 38 mm
Height 38 mm
Length 2500 mm
Width 200 mm
All types

All types

Types Length Width Height Material thickness Number of compartments Item no. Quantity SSU
MD 20038 1.6C3 2500 mm 200 mm 38 mm 1.6 mm 3 St. 7490359
2,5 m
MD 22538 1.6C3 2500 mm 225 mm 38 mm 1.6 mm 3 St. 7490363
2,5 m
MD 25038 1.6C3 2500 mm 250 mm 38 mm 1.6 mm 3 St. 7490373
2,5 m
MD 30038 C3 1.6 2500 mm 300 mm 38 mm 1.6 mm 3 St. 7490383
2,5 m
MD 22538 2+2 C3 2500 mm 225 mm 38 mm 1.6 mm 3 St. 7490426
2,5 m
MD 25038 2+2 C3 2500 mm 250 mm 38 mm 1.6 mm 3 St. 7490430
2,5 m
MD 7538 2+2 C1 2500 mm - 38 mm 1.6 mm 3 St. 7490414
2,5 m
