Underfloor duct MD 3-compartment, duct height 25 mm

Item no. 7490352 | EAN 4012196511853

Item no. / Types

Length	2500 mm

Width

Height	25 mm

Material thickness	1.5 mm

Number of compartments	3 St.

Product description

Product description

Underfloor installation duct for routing cables under the screed.

Technical data

Technical data

Dimension	200x25x2500
Duct height, min.	25 mm
Material	Steel
Material thickness	1,5 mm

Number of compartments	3 St.
Surface	Strip galvanized
Trunking width, min.	200 mm

Dimensions

Dimension a	63 mm
Dimension b	63 mm
Dimension c	63 mm
Dimension h	25 mm

Height	25 mm
Length	2500 mm
Width	200 mm

All types

All types

Types	Length	Width	Height	Material thickness	Number of compartments	Item no.	Quantity	SSU
MD 20025 1.5C3	2500 mm	200 mm	25 mm	1.5 mm	3 St.	7490352	m	2,5 m
MD 22525 1.5C3	2500 mm	225 mm	25 mm	1.5 mm	3 St.	7490360	m	2,5 m
MD 25025 1.5C3	2500 mm	250 mm	25 mm	1.5 mm	3 St.	7490370	m	2,5 m
MD 30025 1.5 C3	2500 mm	300 mm	25 mm	1.5 mm	3 St.	7490380	m	2,5 m

Downloads

Data sheet MD 20025 1.5C3 / 7490352 , 0.24MB , pdf

Catalogue Underfloor systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, underfloor systems , 2.10MB , pdf

Label approval VDE symbol approval, EÜK , 0.12MB , pdf

Download

Selection aid Quick selection for screed-covered duct system with underfloor box in system size 350-3 , 1.24MB , pdf

Selection aid Quick selection for screed-covered duct system with underfloor box in system size 250-3 , 1.07MB , pdf

Mounting instructions Estrichüberdecktes Kanalsystem EÜK , 76.05MB , pdf

Download

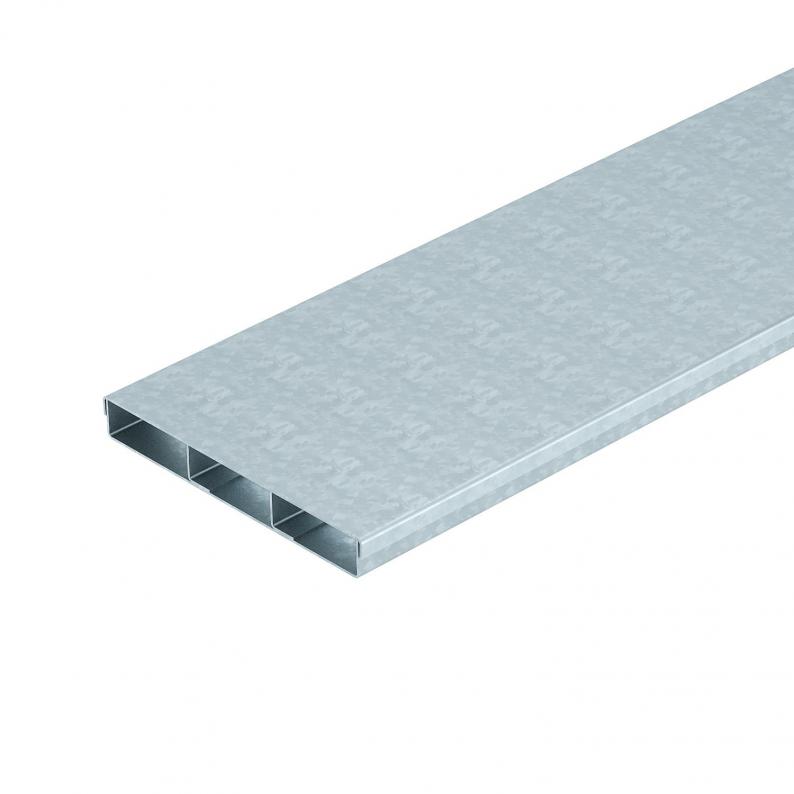

Product graphic MD 20025 1.5C3 / 7490352, 73.40 kB, jpg

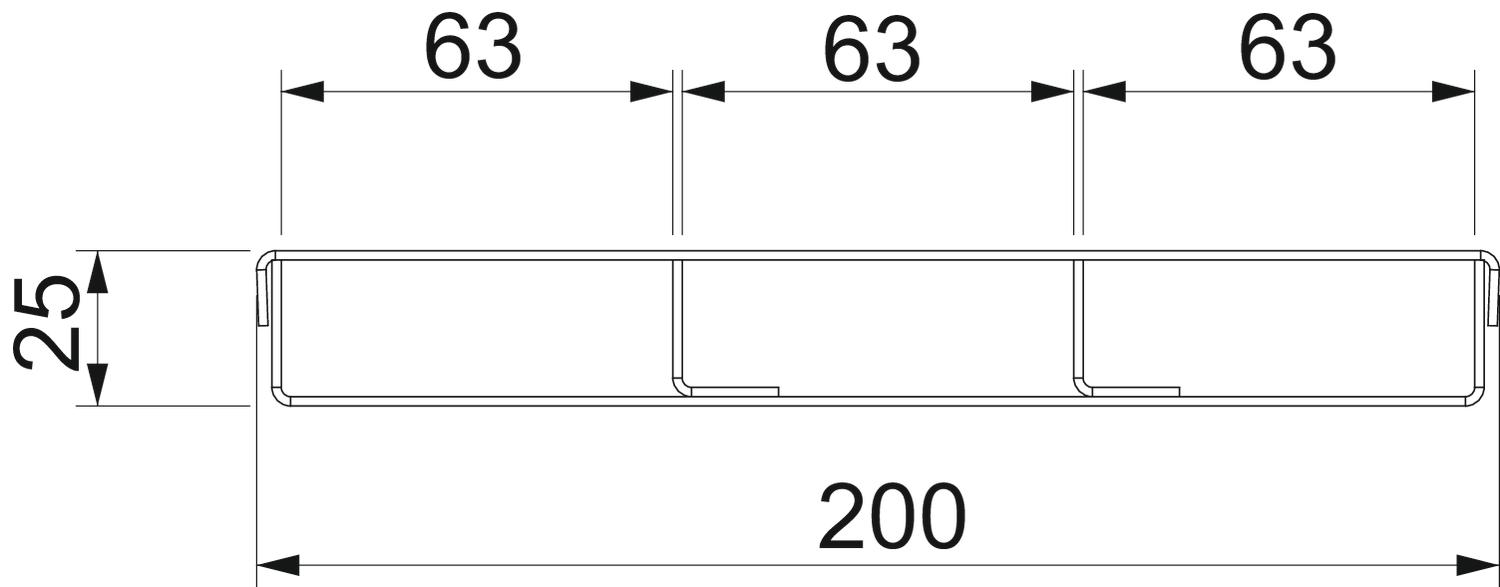

Scale drawing MD 20025 1.5C3 / 7490352, 38.18 kB, jpg

MD 20025 1.5C3 / 7490352
