Underfloor duct MD 1-compartment, duct height 38 mm

Item no. 7490314 | EAN 4012196581801

Item no. / Types

Length	2500 mm

Width

Height	38 mm

Material thickness	1.6 mm

Number of compartments	1 St.

Product description

Product description

Underfloor installation duct for routing cables under the screed.

Technical data

Technical data

Application area	Screed-covered
Decouplable	no
Dimension	75x38x2500
Duct height, min.	38 mm
Floor plate	yes
Material	Steel

Material thickness	1,6 mm
Number of compartments	1 St.
Removable cover	no
Surface	Strip galvanized
Trunking width, min.	75 mm

Dimensions

Dimension a	67 mm
Dimension h	38 mm
Height	38 mm

Length	2500 mm
Width	75 mm

All types

All types

Types	Length	Width	Height	Material thickness	Number of compartments	Item no.	Quantity	SSU
MD 7538 1.6C1	2500 mm	75 mm	38 mm	1.6 mm	1 St.	7490314	m	2,5 m
MD 10038 1.6C1	2500 mm	100 mm	38 mm	1.6 mm	1 St.	7490327	m	2,5 m
MD 15038 1.6C1	2500 mm	150 mm	38 mm	1.6 mm	1 St.	7490337	m	2,5 m
MD 5038 2+2 C1	2500 mm	-	38 mm	1.6 mm	1 St.	7490410	m	2,5 m

Downloads

Data sheet MD 7538 1.6C1 / 7490314 , 0.22MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Label approval VDE symbol approval, EÜK , 0.12MB , pdf

Download

Mounting instructions Estrichüberdecktes Kanalsystem EÜK , 76.05MB , pdf

Download

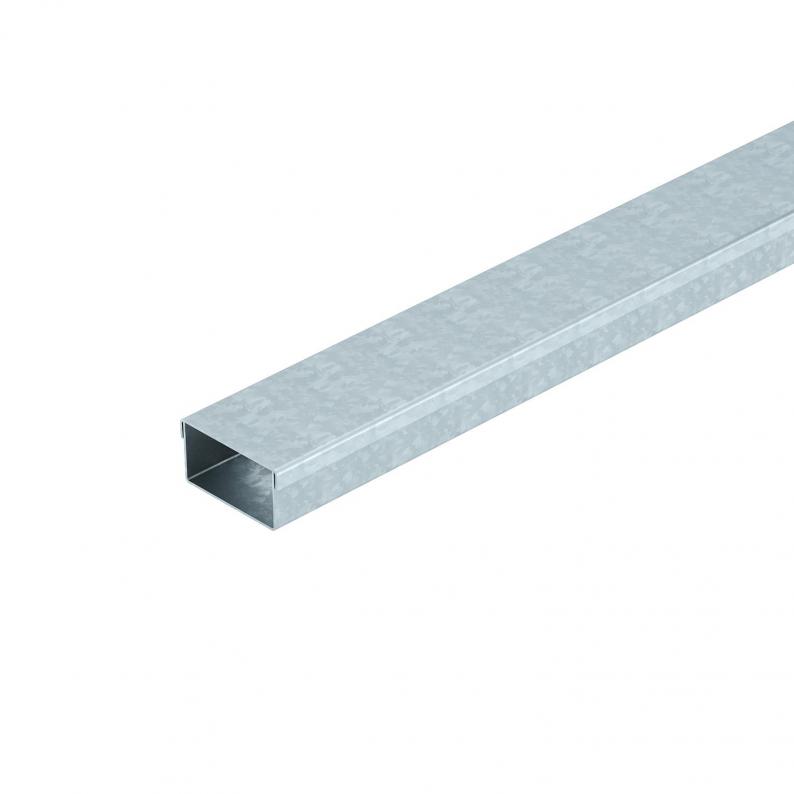

Product graphic MD 7538 1.6C1 / 7490314, 50.15 kB, jpg

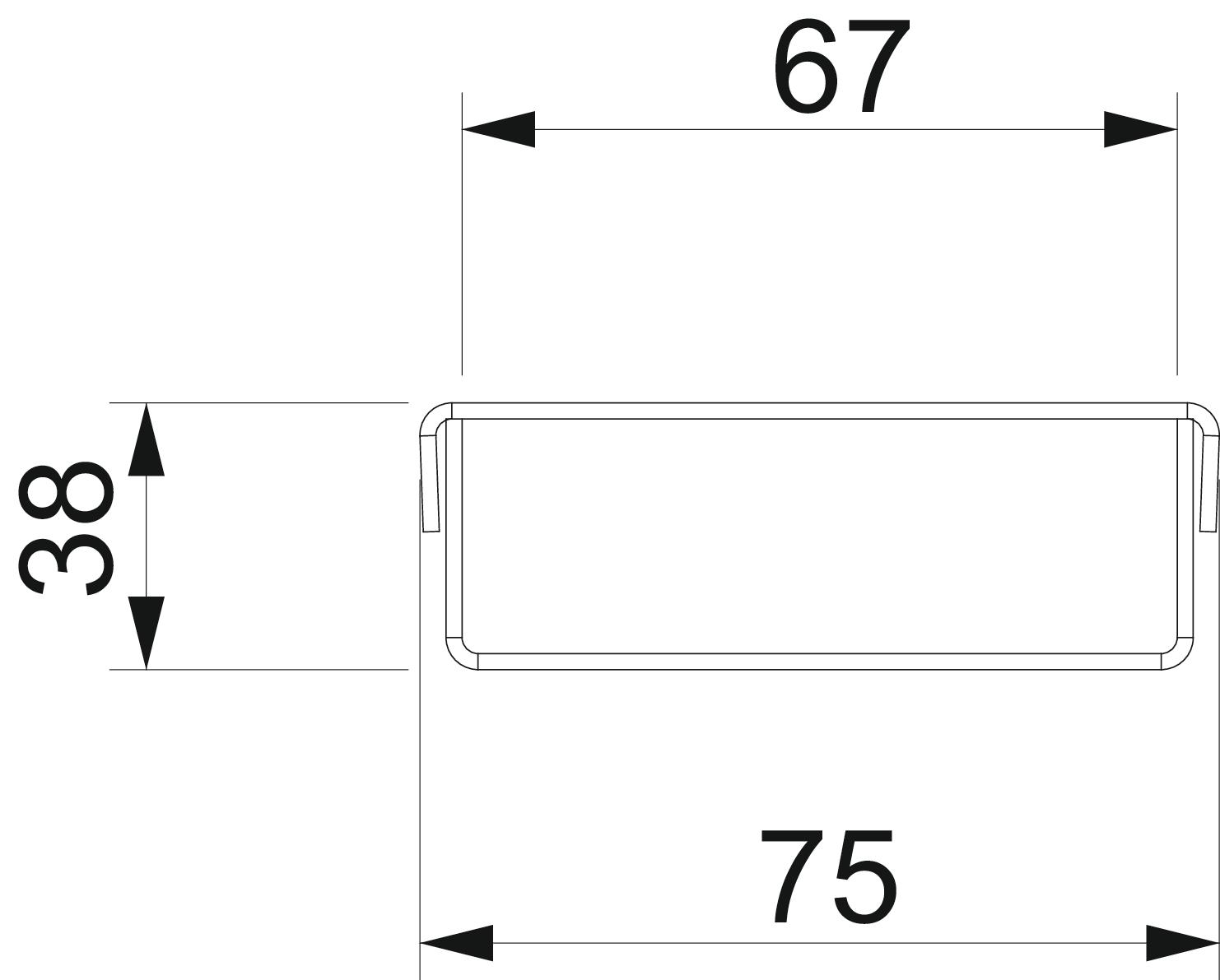

Scale drawing MD 7538 1.6C1 / 7490314, 44.03 kB, jpg
