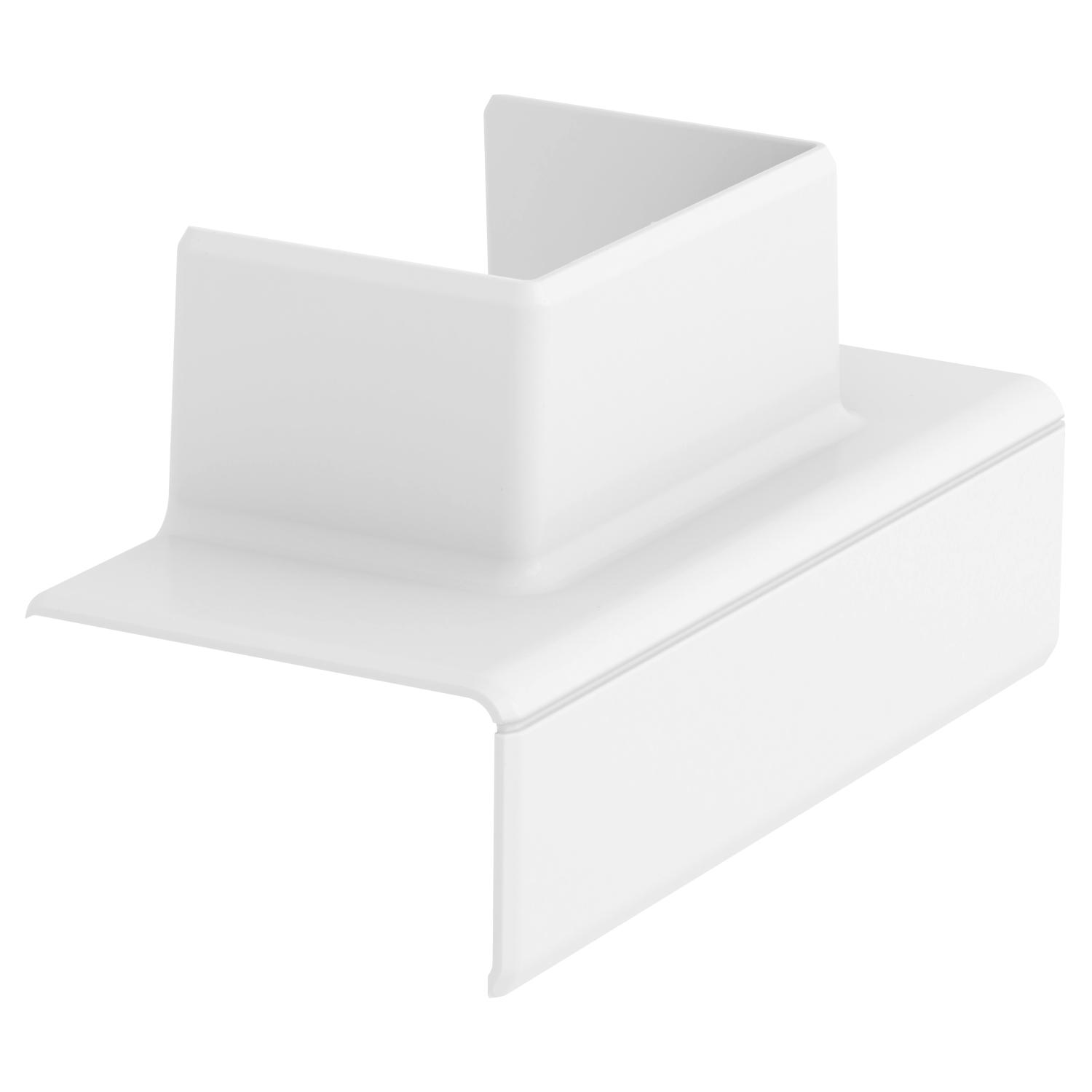

T piece adapter WDK 40060
Item no. 6113310 | EAN 4012196419845
- Product description
-
Product description
T-piece adapter to create a 90° junction from the system size Rapid 45-2 53100 and 53165 on a cable trunking WDK40060.
-
- Technical data
-
Technical data
Antibacterial treatment no Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Cross-over Dimension 120x62x56 Duct connector no for duct width 100 mm for trunking height 53 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical no Version for Hood fitting Width of the branch 60 mm Dimensions

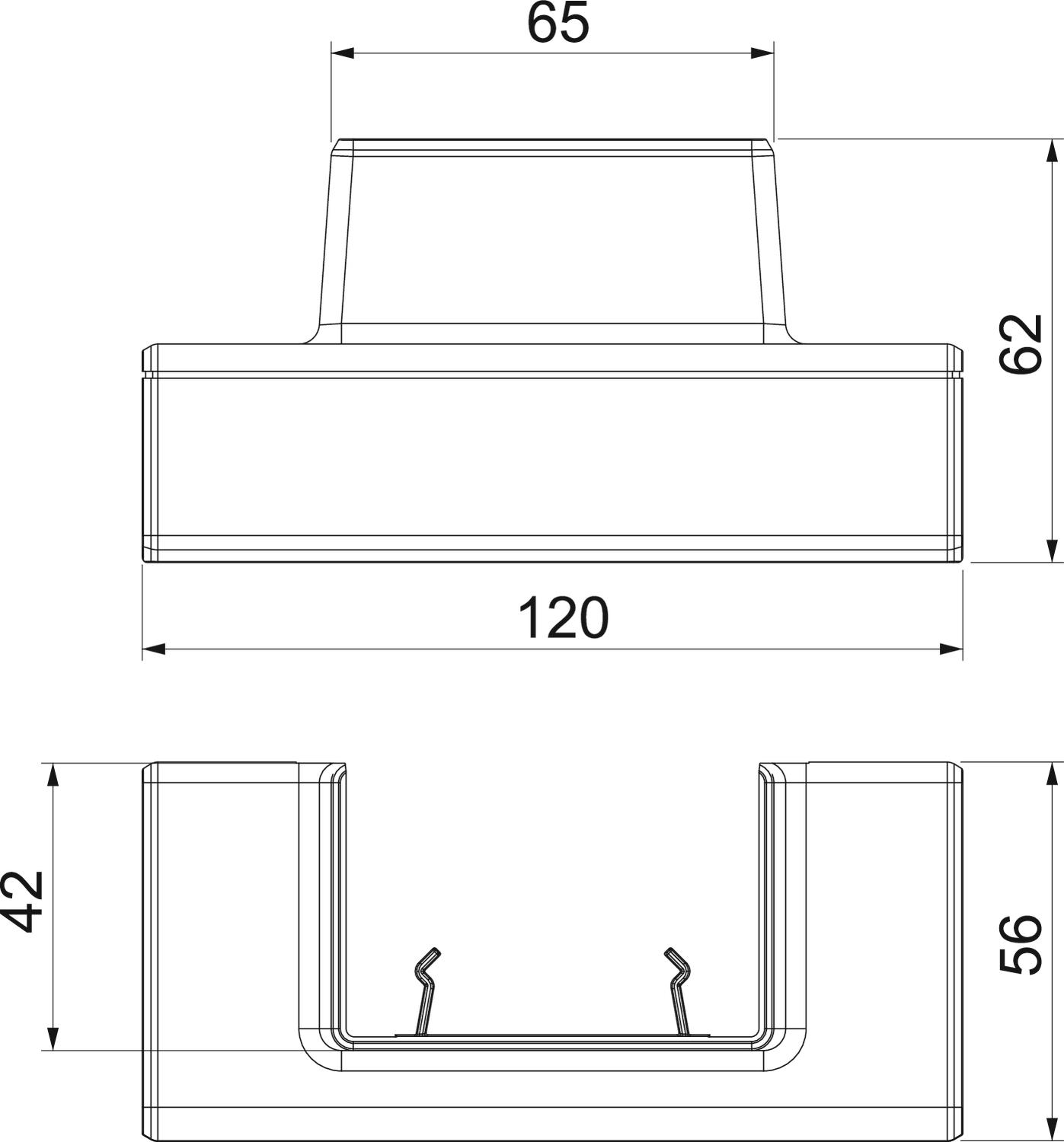

Height 55,5 mm Length 120 mm Width 62 mm - All types
- Downloads
-
Data sheet GK-TA WDK 1RW / 6113310 , 0.22MB , pdfDeclaration of conformity GK-TA WDK 1RW / 6113310 , 0.13MB , pdfREACH Declaration of conformity GK-TA WDK 1RW / 6113310 , 0.27MB , pdfRoHS Declaration of conformity GK-TA WDK 1RW / 6113310 , 0.28MB , pdfMounting instructions Mounting instructions, T piece adapter GK-TA WDK..., GK-TR... , 0.14MB , pdfNo invitation to tender text is available for this product.
