Note: This article is discontinued.
SurgeController V20, plug-in arrester 48 V
Item no. 5099574 | EAN 4012195044987
- Product description
-
Product descriptionSurge arrester, type 2
• Plug-in arrester, can be separated from base without tools

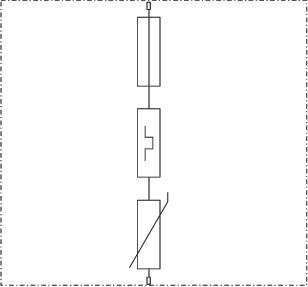

• Including thermal and dynamic separating device and visual status display
• High current conductivity and long service life
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 20 kA Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 48V Installation type DIN rail 35 mm Integrated back-up fuse no Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 4 kA Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage AC 48 V Maximum continuous voltage DC 60 V Maximum discharge current (8/20 μs) 40 kA Network form TN Nominal discharge current (8/20 µs) 15 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal voltage AC (50/60 Hz) 48 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 1 Protection rating IP20 Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 2 yes - All types
-
All types
- Downloads
-
Data sheet V20-C 0-48 / 5099574 , 0.25MB , pdfEU declaration of conformity V20-C 0-48 / 5099574 , 0.06MB , pdfLabel approval VDE symbol approval, V20 , 0.12MB , pdfLabel approval KEMA-KEUR certificate V20 , 2.00MB , pdfLabel approval EZU certificate V20 , 2.00MB , pdfNo invitation to tender text is available for this product.
