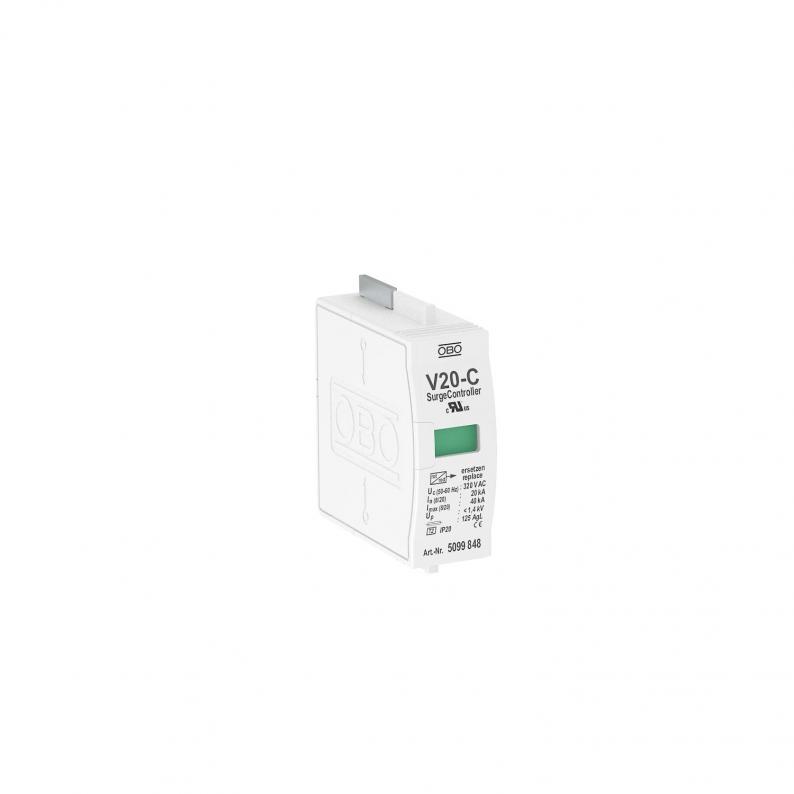

SurgeController V20, plug-in arrester 320 V
Item no. 5099848 | EAN 4012195570318
- Product description
-
Product descriptionSurge arrester, type 2
• Plug-in arrester, can be separated from base without tools
• Including thermal and dynamic separating device and visual status display
• High current conductivity and long service life
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 20 kA Blow-out no Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 320V Installation type On basic element Integrated back-up fuse no Lightning protection zone LPZ 1→2 Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage AC 320 V Maximum continuous voltage DC 420 V Maximum discharge current (8/20 μs) 40 kA Network form TN Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 1 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 2 yes Version for 1-pin cover; 320 V - All types
-
All types
- Downloads
-
Data sheet V20-C 0-320 / 5099848 , 0.26MB , pdfEU declaration of conformity V20-C 0-320 / 5099848 , 0.06MB , pdfREACH Declaration of conformity V20-C 0-320 / 5099848 , 0.12MB , pdfRoHS Declaration of conformity V20-C 0-320 / 5099848 , 0.12MB , pdfLabel approval VDE symbol approval, V20 , 0.12MB , pdfLabel approval KEMA-KEUR certificate V20 , 0.45MB , pdfLabel approval UL certificate V20 , 0.29MB , pdfLabel approval EZU certificate V20 , 2.00MB , pdfMounting instructions Mounting instructions, V20-...-320 , 0.06MB , pdfNo invitation to tender text is available for this product.
