Surge arrester V10 Compact 385 V 3+N/PE | 385 | IP20

Surge arrester V10 Compact 385 V

Item no. 5093384 | EAN 4012195126041

Item no. / Types	5093384 / V10 COMPACT 385

Pole version	3+N/PE

Maximum continuous voltage AC	385 V

Protection rating	IP20

Product description

Product description

Surge protective device, compact module, type 2+3

• Surge protection in sub-distributors to VDE 0100-443 (IEC 60364-4-44)

• Arresting capacity up to 60 kA (8/20) in total

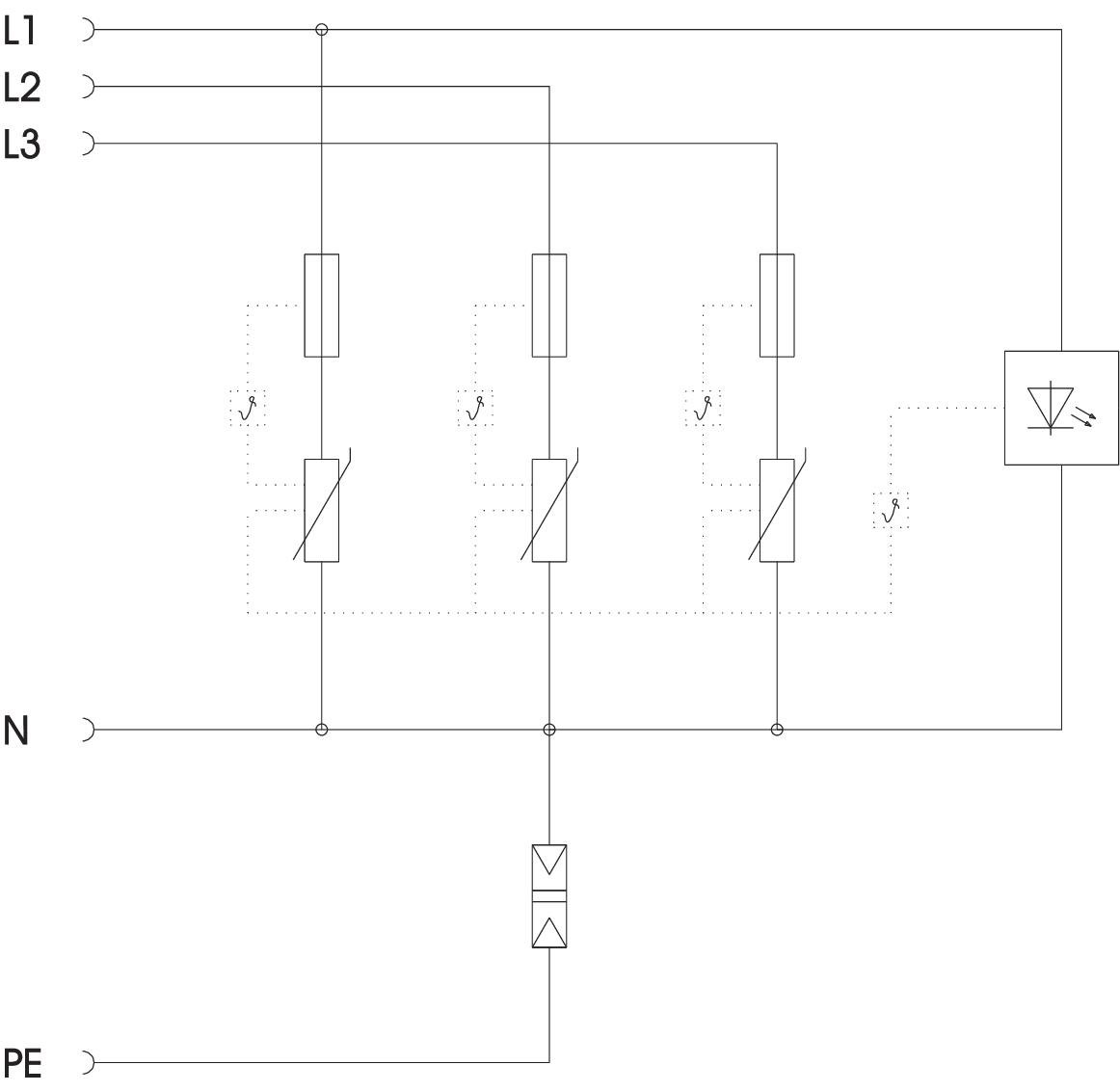

• Integrated 3+1 solution for TN and TT network systems on 45 mm module width

• High-performance varistor technology

• Incl. thermal and dynamic cut-off unit and visual function display

Application: Sub/storey distribution as well as device protection in rotational current systems.

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	60 kA
Blow-out	no
Cable type for surge protection devices	Power cable AV
Conductor cross-section, flexible (fine-wire), min.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
Dimension	385V
Follow current quenching capacity (eff) [N-PE]	0,1 kA
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
Lightning protection zone LPZ	1→3
Max. mains-side overcurrent protection	63
Maximum back-up fuse	63 A
Maximum continuous voltage AC	385 V
Maximum discharge current (8/20 μs)	20 kA
Network form	Other
Nominal discharge current (8/20 µs)	10 kA

Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole version	3+N/PE
Protection rating	IP20
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2+3
SPD to IEC 61643-1	Class II+III
Test class, type 2	yes
Test class, type 3	yes
TN network form	yes
TN-C-S network form	yes
TN-S network form	yes
TT network form	yes
Version for	3+NPE
