- Product description
-
Product description

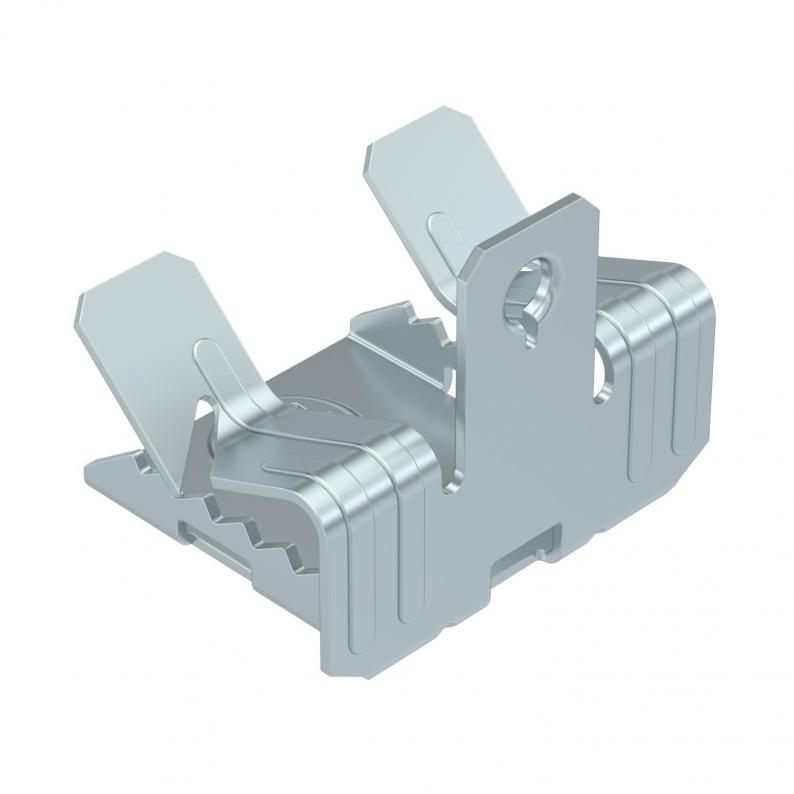

Support clamp with M6 female thread for individual mounting solutions. Fastening through knocking onto steel girders.
-
- Technical data
-
Technical data
Connection type/component Thread Dimension 7-13mm Fastening type Clamp Flange thickness F max. 13 mm Flange thickness F min. 7 mm Hinge, adjustable no Hinged no Material Steel Surface Zinc slat Thread metric 6 Dimensions

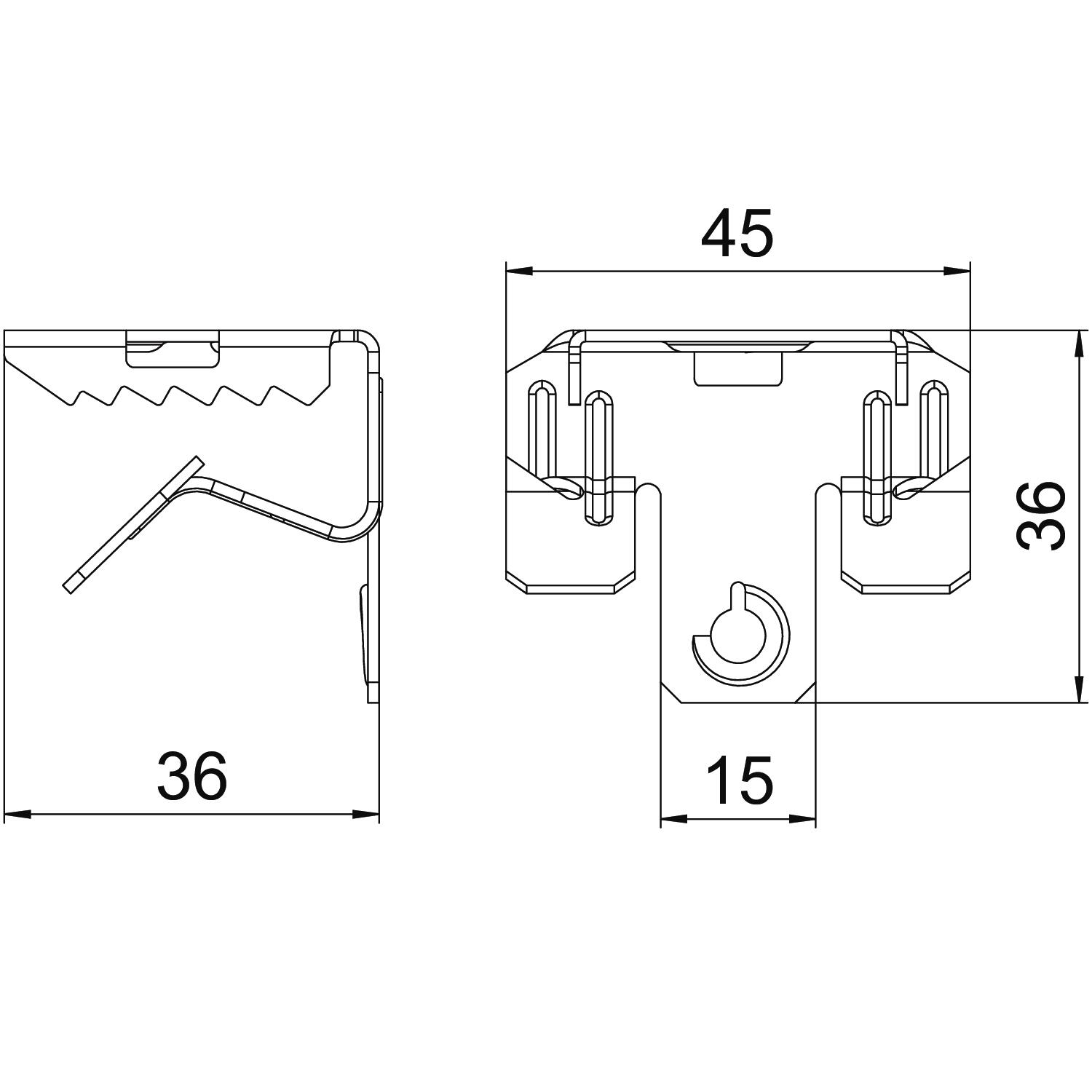

Dimension L 36 mm Height 36 mm Length 36 mm Width 45 mm - All types
- Downloads
-
Data sheet SCUIT 7-13 M6 / 1488283 , 0.20MB , pdf
