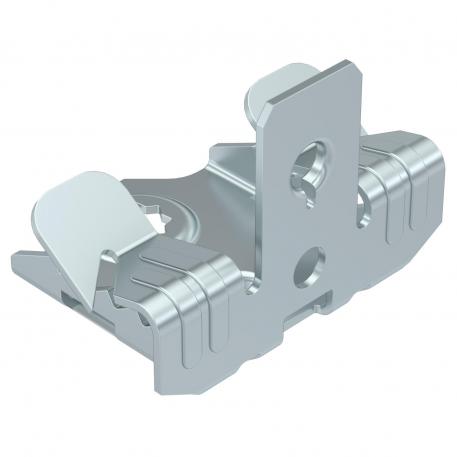

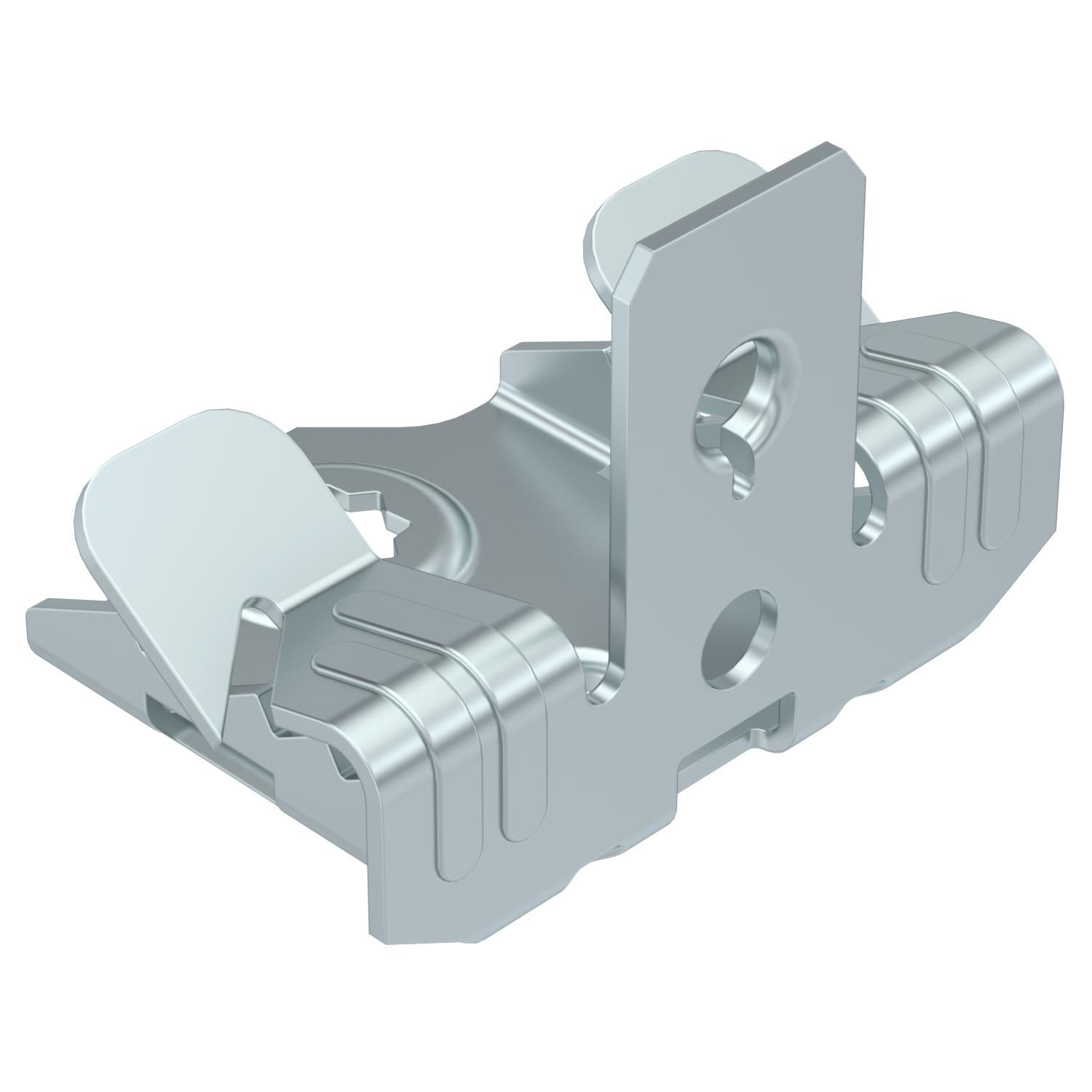

Support clamp, with female thread

Item no. / Types

Length

Width	45 mm

Height	36 mm

Dimension L

Flange thickness F min.

Flange thickness F max.

Product description

Product description

Support clamp with M6 female thread for individual mounting solutions. Fastening through knocking onto steel girders.

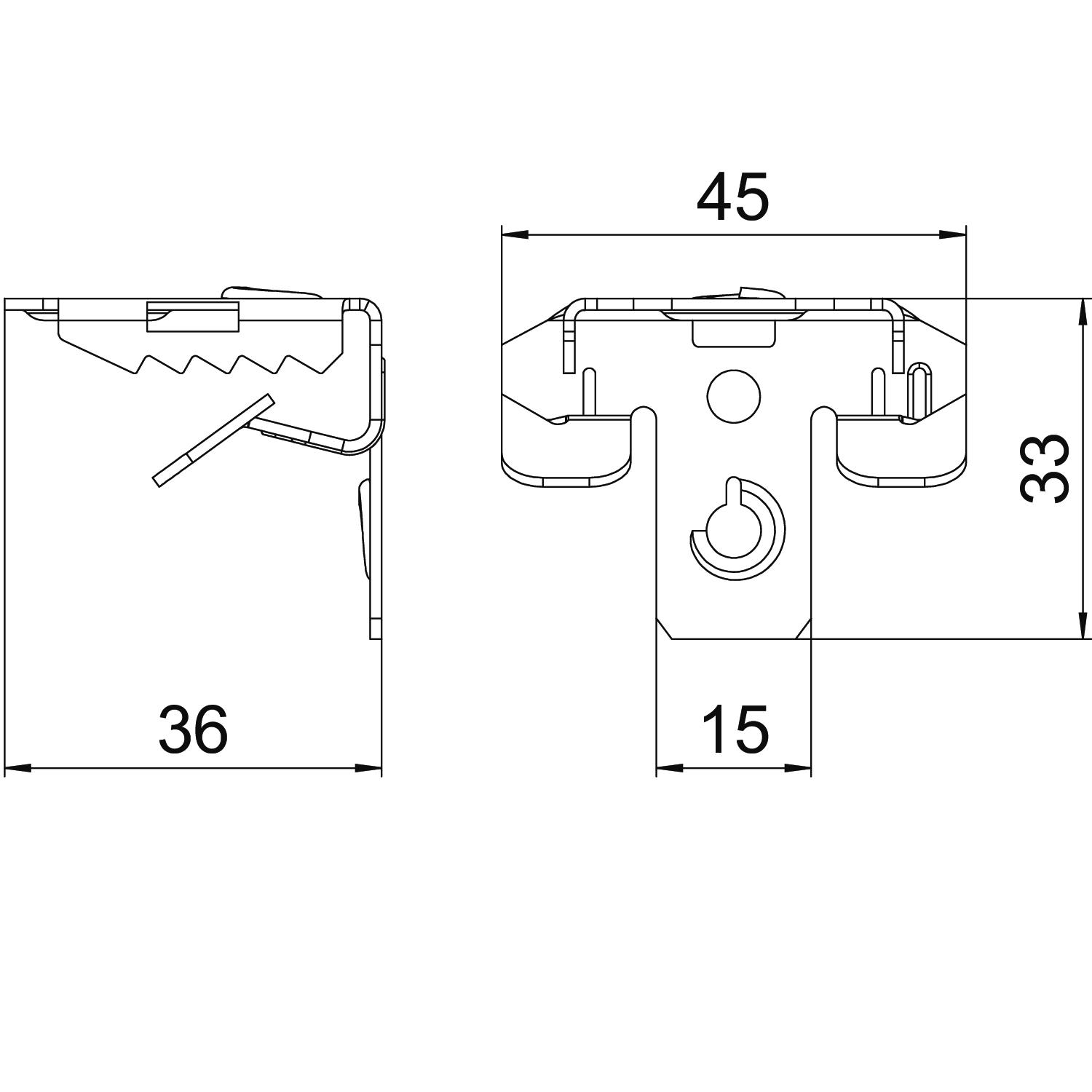

Technical data

Dimension L	33 mm
Height	36 mm

Length	33 mm
Width	45 mm

All types

Types	Length	Width	Height	Dimension L	Flange thickness F min.	Flange thickness F max.	Item no.	Quantity	SSU
SCUIT 3-7 M6	33 mm	45 mm	36 mm	33 mm	3 mm	7 mm	1488281	piece	100 piece
SCUIT 7-13 M6	36 mm	45 mm	36 mm	36 mm	7 mm	13 mm	1488283	piece	100 piece
SCUIT 14-20 M6	43 mm	45 mm	36 mm	43 mm	14 mm	20 mm	1488285	piece	100 piece
