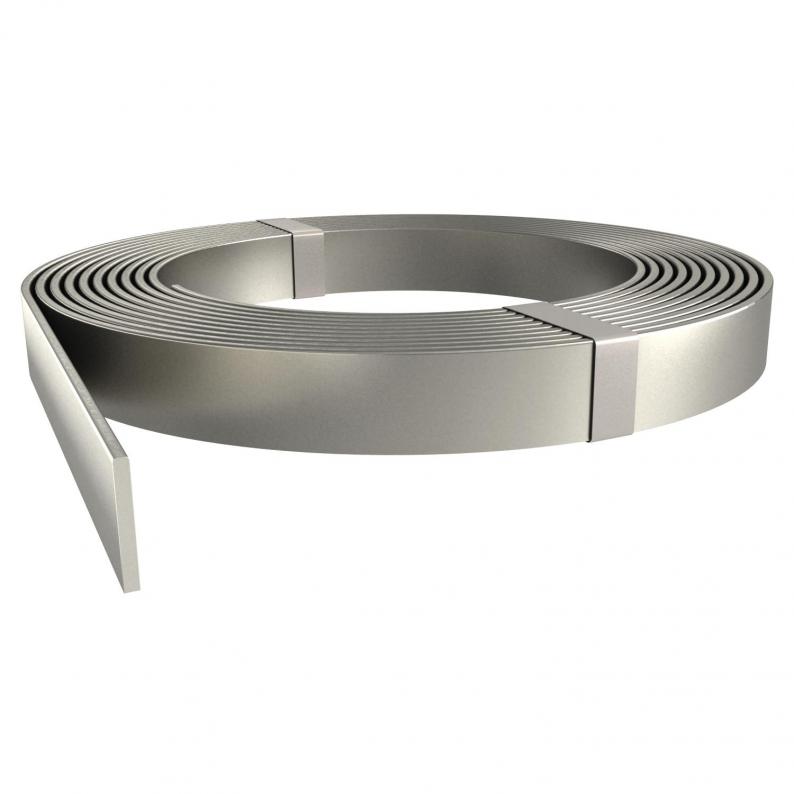

Stainless steel flat conductor A4
Item no. 5018706 | EAN 4012195800477
- Product description
-
Product description
• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding
-
- Technical data
-
Technical data
Cross-section 105 mm² Dimension 30x3,5mm Length tolerance ± 5 % Material Stainless steel Nomal ring (approx. m) 50 Normal ring (ca. kg) 42 Dimensions

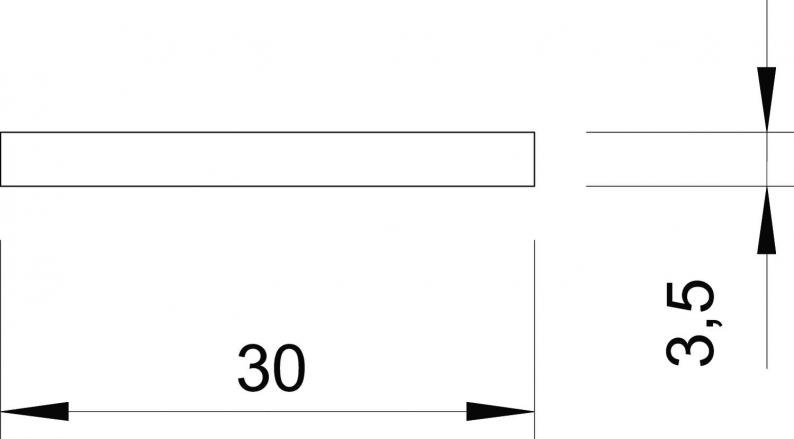

Dimension B 30 mm Dimension H 3,5 mm Height 3,5 mm Width 30 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Cross-connector with intermediate plate for Rd 8−10 mm A4
252 8-10 V4A 5312318 10 piece
Cross-connector for round conductors and flat conductors A4
252 8-10xFL30V4A 5312656 10 piece
Expansion strip for foundation earth electrode systems
1807 DB 5016160 1 piece - Downloads
-
