SLAB BOX for PVC duct systems

Item no. / Types

Trunking width, min.	60 mm

Trunking width, max.	90 mm

Duct height, min.	25 mm

Trunking height, max.	35 mm

Product description

Product description

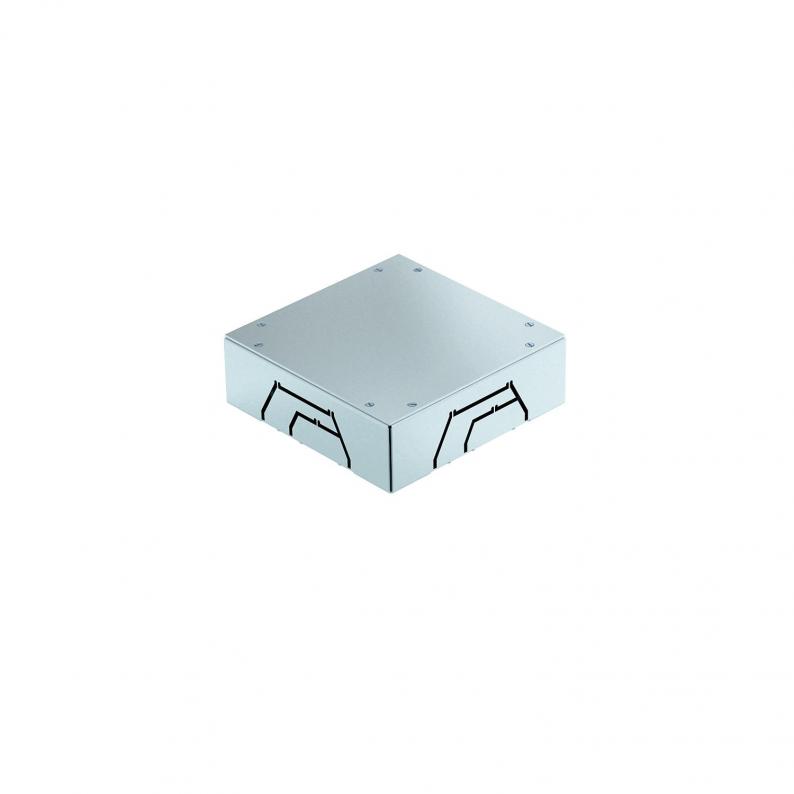

Underfloor junction box for PVC ducts in heights of 25 mm and 35 mm.

Technical data

Decouplable	no

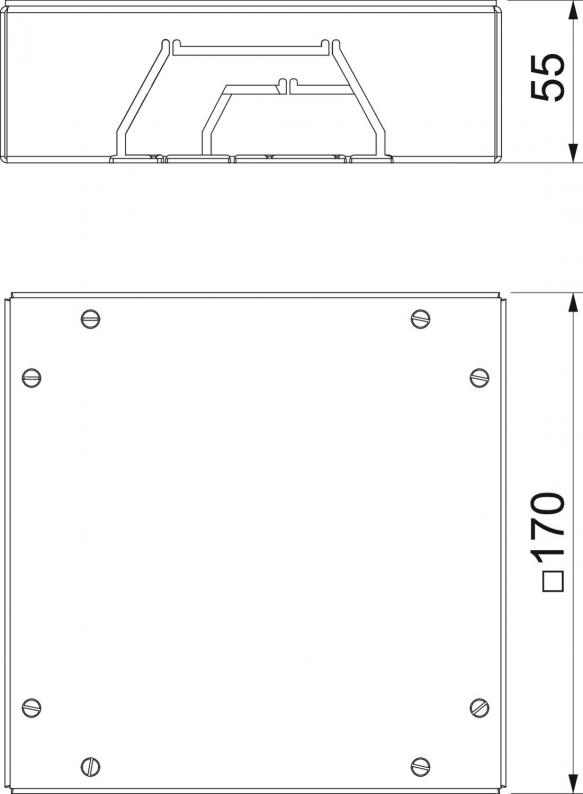

Dimension	170x170x55
Duct height, min.	25 mm
Expansion option	For installation of accessories
Floor plate	yes
For pipe connection	no

Installation opening for on-floor tank	no
Material	Steel
Suitable for screed-covered underfloor ducts	yes
Trunking height, max.	35 mm
Trunking width, max.	90 mm
Trunking width, min.	60 mm

Dimension h	55 mm
Height	55 mm

Length	170 mm
Width	170 mm

All types

Types	Trunking width, min.	Trunking width, max.	Duct height, min.	Trunking height, max.	Item no.	Quantity	SSU
SB 9035 1 C1	60 mm	90 mm	25 mm	35 mm	7490280	piece	1 piece
SB 9035 2 C2	60 mm	90 mm	25 mm	35 mm	7490282	piece	1 piece
SB 9035 3 C3	60 mm	90 mm	25 mm	35 mm	7490284	piece	1 piece
