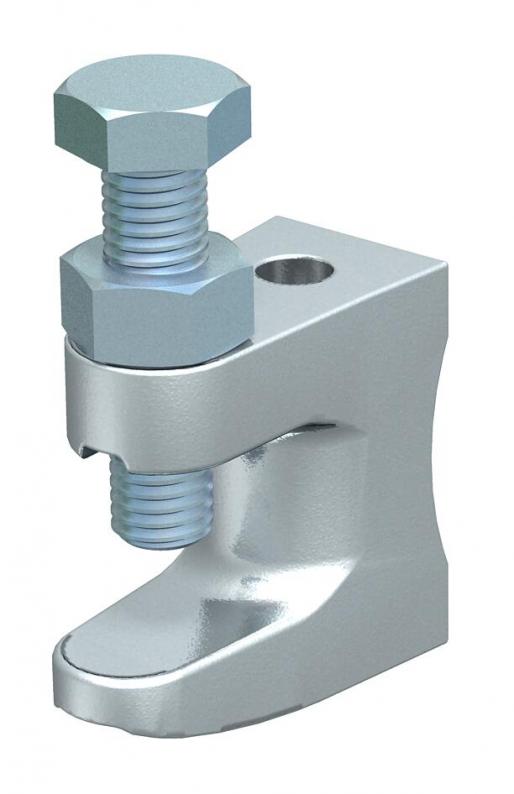

Screw-in beam clamp, with thread

Item no. 1488090 | EAN 4012195151159

Product description

Product description

With thread.

Max. tightening torque: 21 Nm
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 3,5 kN
Connection type/component Thread
Dimension 0-26mm
Fastening type Bolts
Flange thickness F max. 26 mm
Hinge, adjustable no
Hinged no
Material Cast iron
Max. Tightening torque 21 Nm
Suitable for metric threaded rod 12
Thread metric 12

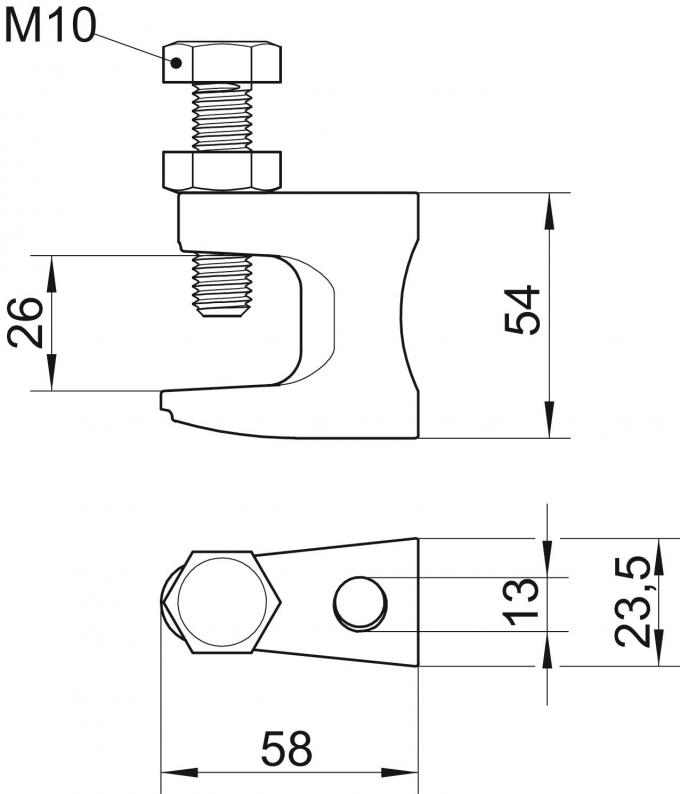

Dimensions

Dimension B 23,5 mm
Dimension F 26 mm
Dimension G (mm) M10
Dimension H 54 mm
Dimension L 58 mm
Height 54 mm
Length 58 mm
Width 23,5 mm
All types

All types

Types Length Width Height Flange thickness F max. Breaking load Item no. Quantity SSU
FL1-G M8 TG 38 mm 19 mm 35 mm 18 mm 1.2 kN 1488074
50 piece
FL2-G M10 TG 44 mm 21 mm 42 mm 20 mm 2.5 kN 1488082
50 piece
FL3-G M12 TG 58 mm 23.5 mm 54 mm 26 mm 3.5 kN 1488090
25 piece
Downloads

Download

Declaration of conformity FL3-G M12 TG / 1488090 , 0.06MB , pdf
Download
REACH Declaration of conformity FL3-G M12 TG / 1488090 , 0.12MB , pdf
Download
RoHS Declaration of conformity FL3-G M12 TG / 1488090 , 0.12MB , pdf
Download

FL3-G M12 TG / 1488090
