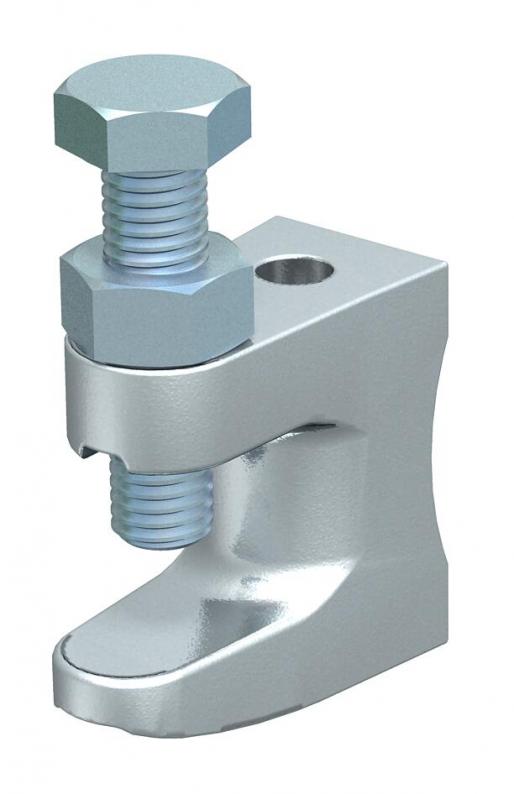

Screw-in beam clamp, with thread

Item no. 1488074 | EAN 4012195151036

Product description

Product description

With thread.

Max. tightening torque: 8 Nm
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 1,2 kN
Connection type/component Thread
Dimension 0-17mm
Fastening type Bolts
Flange thickness F max. 18 mm
Hinge, adjustable no
Hinged no
Material Cast iron
Max. Tightening torque 8 Nm
Suitable for metric threaded rod 8
Thread metric 8

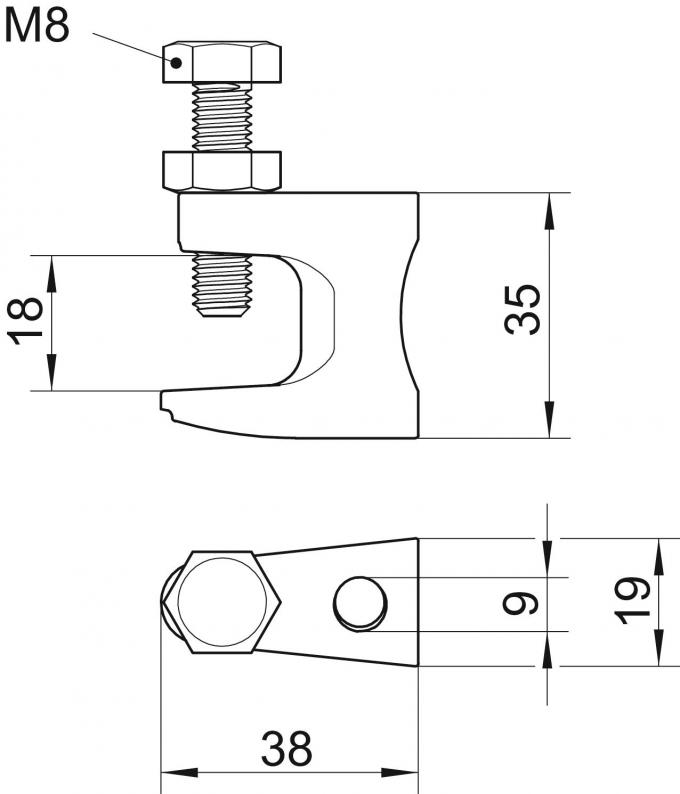

Dimensions

Dimension B 19 mm
Dimension F 18 mm
Dimension G (mm) M8
Dimension H 35 mm
Dimension L 38 mm
Height 35 mm
Length 38 mm
Width 19 mm
All types

All types

Types Length Width Height Flange thickness F max. Breaking load Item no. Quantity SSU
FL1-G M8 TG 38 mm 19 mm 35 mm 18 mm 1.2 kN 1488074
50 piece
FL2-G M10 TG 44 mm 21 mm 42 mm 20 mm 2.5 kN 1488082
50 piece
FL3-G M12 TG 58 mm 23.5 mm 54 mm 26 mm 3.5 kN 1488090
25 piece
