Round conductor, copper sheathed 10 | | | 78 | Steel

Round conductor, copper sheathed

Item no. 5021384 | EAN 4012196640386

Item no. / Types

Diameter

Cross-section

Material	Steel

Product description

Product description

• Can be used as a conductor and earthing conductor according to IEC/EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Copper layer thickness: Min. 250 µm

Technical data

Technical data

Cross-section	78 mm²

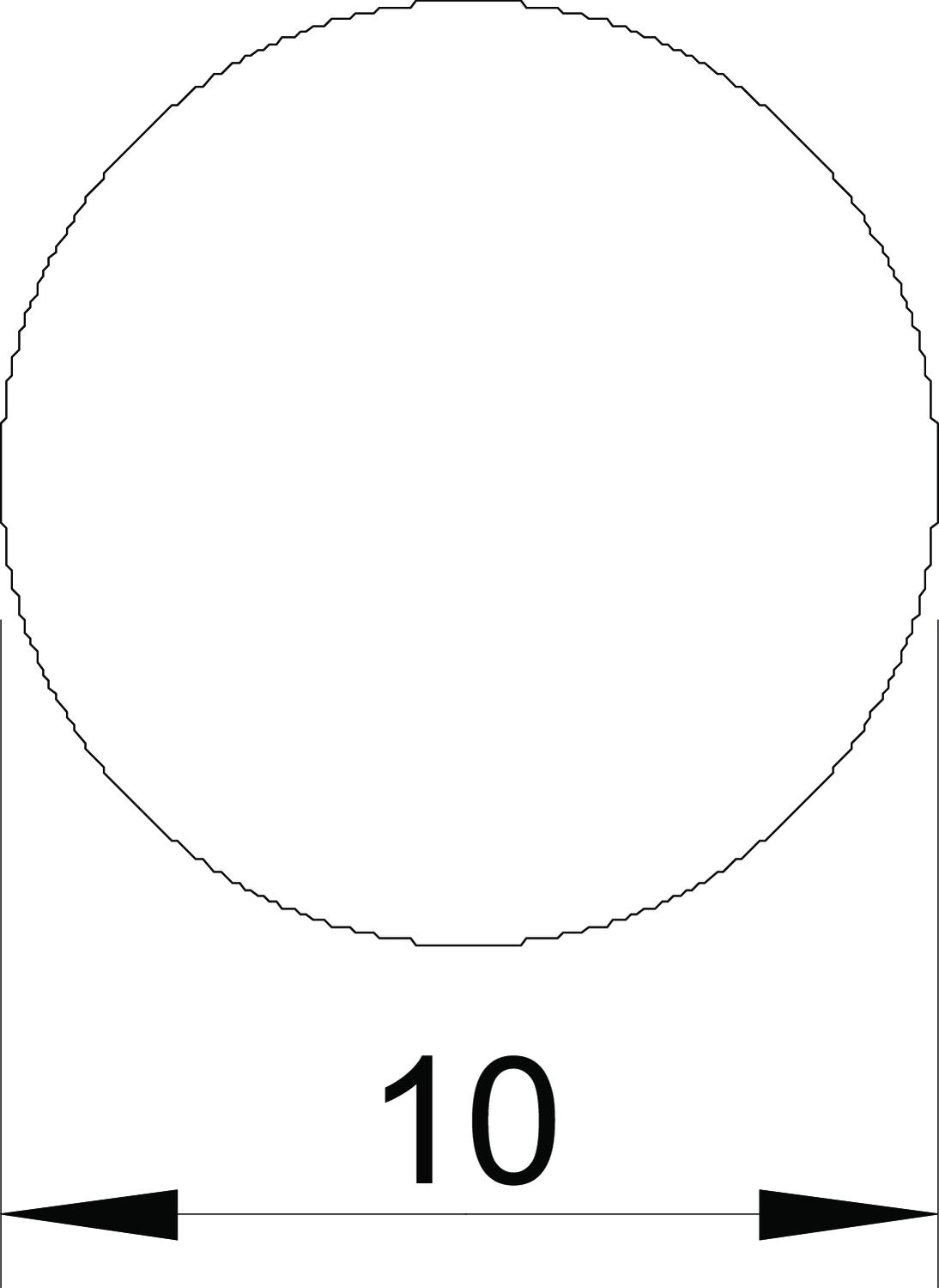

Diameter	10 mm
Dimension	10mm
High voltage-resistant, insulated version	no

Length tolerance ±	5 %
Material	Steel
Number of individual wires	1
Surface	Copper-plated

All types

All types

Types	Diameter	Cross-section	Material	Item no.	Quantity	SSU
RD 8-ST CU IN	8 mm	50 mm²	Steel	5021382	m	100 m
RD 10-ST CU IN	10 mm	78 mm²	Steel	5021384	m	100 m
