Round conductor, copper

Item no. / Types

Diameter

Normal ring (ca. kg)

Nomal ring (approx. m)

Cross-section

Material

Product description

Product description

• According to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Technical data

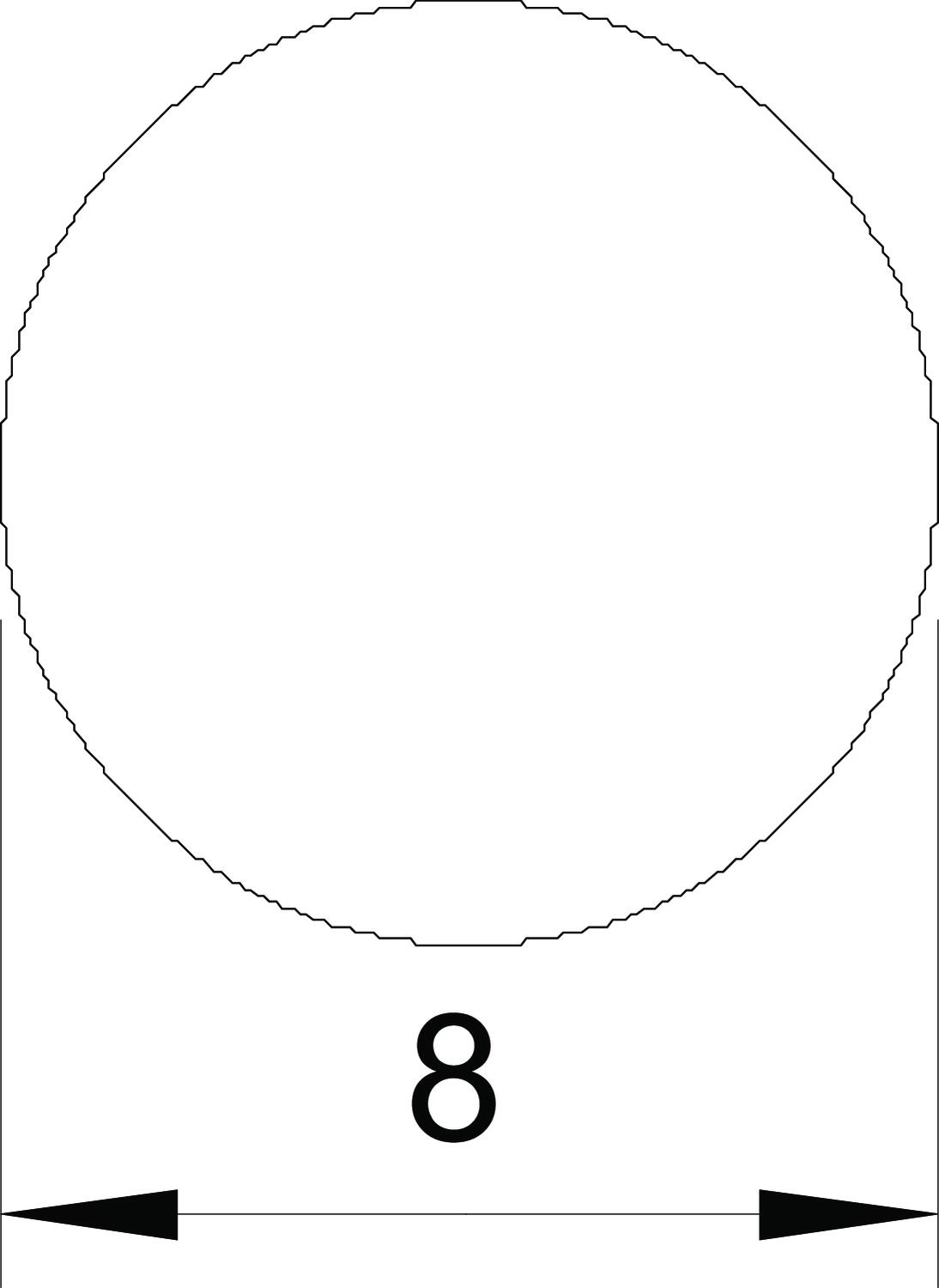

Diameter	8 mm
Dimension	8mm
Dimension D	8 mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8-CU	8 mm	45	100	50 mm²	Copper	5021480	m	100 m
RD 10-CU	10 mm	35	50	78 mm²	Copper	5021502	m	50 m
RD 8-ST CU 100	8 mm	-	-	-	Steel	5450083	m	25 m

Downloads

Data sheet RD 8-ST CU 100 / 5450083 , 0.20MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf
