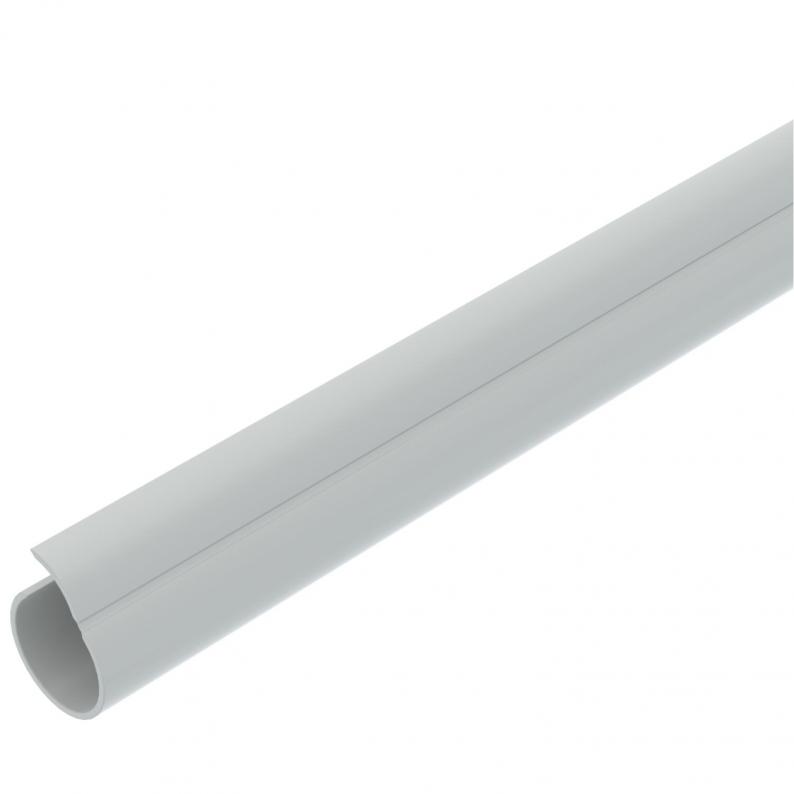

Quick pipe, light grey
Item no. 2153939 | EAN 4012195025153
- Product description
-
Product description
Open plastic Quick pipe pipe for surface-mounted routing of cables in interiors and protected outdoor areas. Mounting on wall and ceiling with Quick clip, starQuick clip and Multi-Quick clip. Toolless closing and opening through turning in the clip. Can be used in a temperature range of –25 to +60 °C.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Concealed no Concrete installation no Dimension M32 Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M32 Surface-mounted yes Underfloor installation (screed) no With sleeve no Dimensions

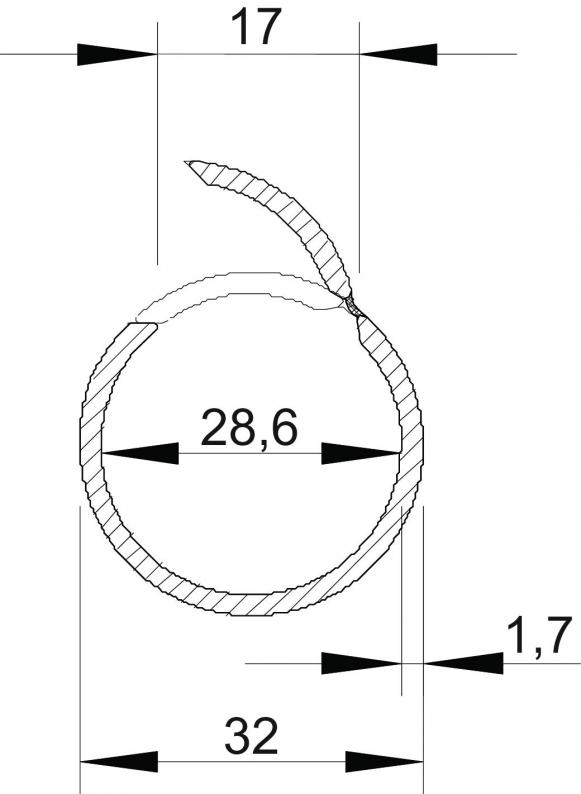

Dimension C 17 mm Dimension D 32 mm Dimension m (mm) 28,6 Dimension t 1,7 mm Length 2000 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Quick pipe connecting sleeve, light grey
3000 MMS M32 LGR 2154087 10 piece
90° Quick pipe bend, light grey
3000 BMS M32 LGR 2154058 5 piece Mounting accessories
Products Types Item no. Quantity SSU
Quick clip, light grey
2955 M32 2149022 50 piece - Downloads
-
Data sheet 2953 M32 LGR / 2153939 , 0.27MB , pdfBrochure Quick Pipe , 1.41MB , pdfDeclaration of conformity 2953 M32 LGR / 2153939 , 0.05MB , pdfREACH Declaration of conformity 2953 M32 LGR / 2153939 , 0.12MB , pdfRoHS Declaration of conformity 2953 M32 LGR / 2153939 , 0.12MB , pdf
