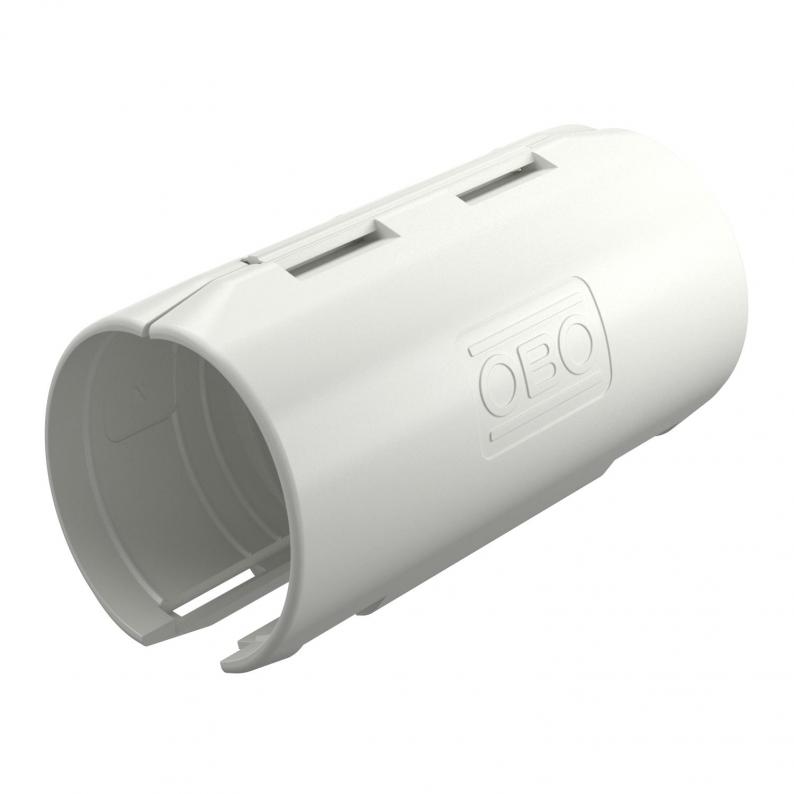

Quick pipe connecting sleeve, pure white

Quick pipe connecting sleeve, pure white

Type 3000 MMS M32 RW
|
Item no. 2154097
|
EAN 4012196870165
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

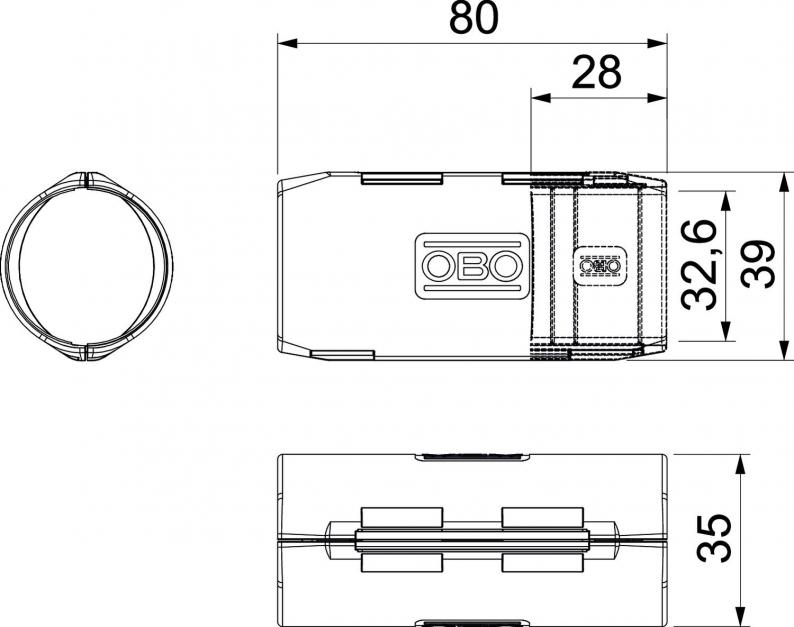

Dimensions

Dimension L80 mm
Dimension d32,6 mm
Dimension B39 mm
Dimension L128 mm

Technical data

Halogen-freeyes
SizeM32
Polished surfaceno
Permitted temperature range, min.0 °C
Permitted temperature range, max.60 °C
DimensionM32
MaterialPolypropylene
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,0684 kg CO2e / 1 Piece
