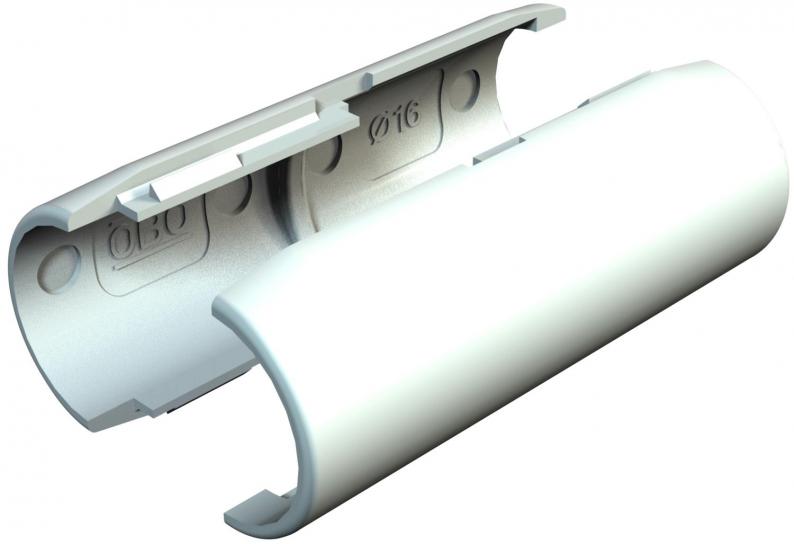

Quick pipe connecting sleeve, light grey

Quick pipe connecting sleeve, light grey

Type 2953 M M32 LGR
|
Item no. 2153835
|
EAN 4012195510079
Show all variants
Item no. / Type
Thread

This item is a discontinued product!

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric

Technical data

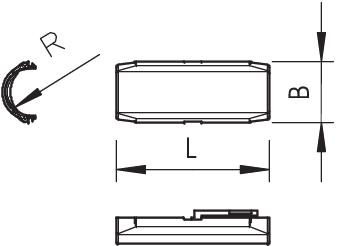

Dimensions

Dimension L80 mm
Dimension B38,7 mm
Dimension R15,95 mm

Technical data

Halogen-freeno
ThreadM32
SizeM32
Polished surfaceno
Permitted temperature range, min.0 °C
Permitted temperature range, max.60 °C
DimensionM32
MaterialPolyvinylchloride
ColourLight grey; RAL 7035

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Product images (3)
Tender specifications (2)

Variants

Thread
2953 M M16 LGR
Item no.
2153829
Thread
M16
2953 M M32 LGR
Item no.
2153835
Thread
M32
