PYROPLUG® MagicBox, four-sided, interior height 60 mm 64 | 605

PYROPLUG® MagicBox, four-sided, interior height 60 mm

Item no. 7204020 | EAN 4012196812035

Item no. / Types

Internal height	64 mm

Internal width

Product description

Product description

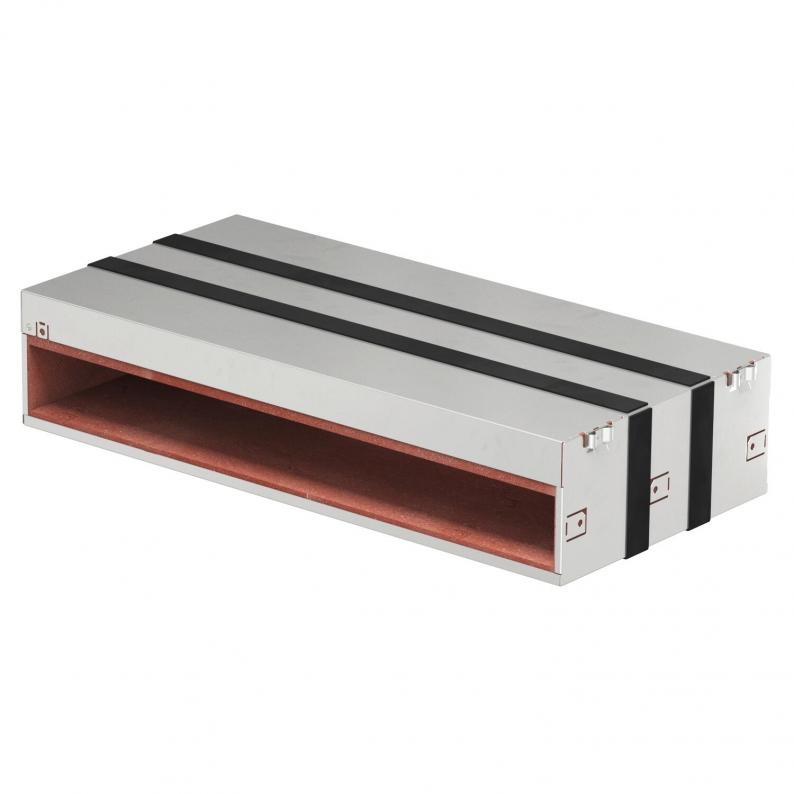

Fire protection box as an insulation system, made of two-part stainless steel housing with intumescent fire protection inlays. Can be used in walls and ceilings. Quick mounting through the releasable Magic connection. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Technical data

Technical data

Accessories required	yes

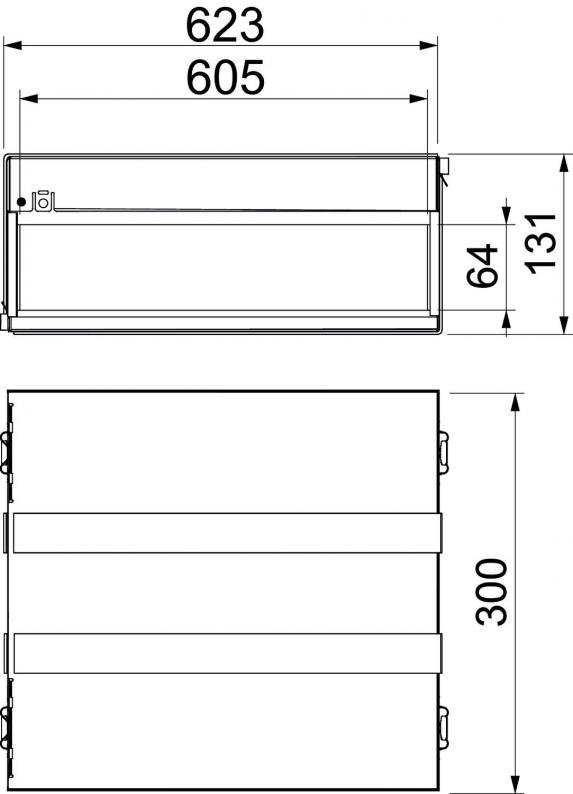

Dimension	300x623x130
Dimension d	605 mm
Dimension d min.	623 mm
Fire protection version	Box body
Height	131 mm
Internal height	64 mm

Internal width	605 mm
Length	300 mm
Material	Stainless steel
Shape	Rectangular
Surface	Bright, treated
Width	623 mm

All types

All types

Types	Internal height	Internal width	Item no.	Quantity	SSU
PMB 610-4 A2	64 mm	105 mm	7204000	piece	1 piece
PMB 620-4 A2	64 mm	205 mm	7204004	piece	1 piece
PMB 630-4 A2	64 mm	305 mm	7204008	piece	1 piece
PMB 640-4 A2	64 mm	405 mm	7204012	piece	1 piece
PMB 650-4 A2	64 mm	505 mm	7204016	piece	1 piece
PMB 660-4 A2	64 mm	605 mm	7204020	piece	1 piece
