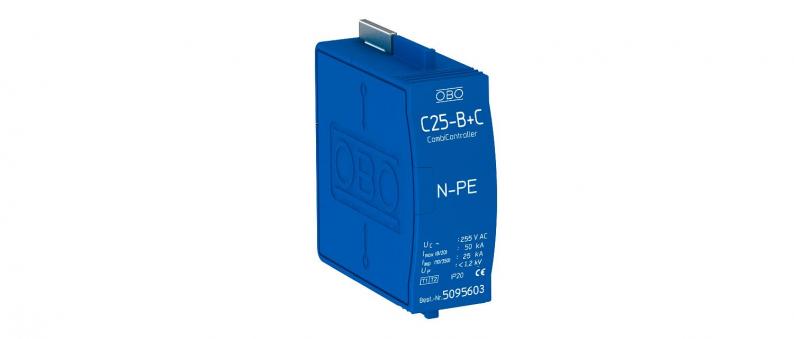

Plug-in arrester, total spark gap between N and PE 255 V

Plug-in arrester, total spark gap between N and PE 255 V

Type C 25-B+C 0
|
Item no. 5095603
|
EAN 4012195919391
Show all variants
Item no. / Type
Maximum continuous voltage AC
Pole version
Protection rating
IP20

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Plug-in total discharge gap for use between neutral lines (N) and protector (PE) Suitable for use in combination with:

• CombiController, type V 25-B+C
• SurgeController, type V 20-C
• SurgeController, type V 10-C
* Complete = Plug-in arrester and base
  • Russia, GOST The State Committee for Standards
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Network formOther
Blow-outno
Signalling on deviceNone
Protection ratingIP20
Nominal discharge current (8/20 µs) [N-PE]30 kA
Remote signallingno
Nominal voltage AC (50/60 Hz)230 V
Lightning surge current (10/350 μs)25 kA
Maximum continuous voltage AC255 V
Nominal discharge current (8/20 µs)30 kA
Pole versionN/PE
Installation typeOn basic element
Max. mains-side overcurrent protection160
Version for1-pole cover; 255 V
Operating temperature, min.-40 °C
Operating temperature, max.80 °C
SPD to IEC 61643-1Class I+II
SPD to EN 61643-11Type 1+2
Lightning protection zone LPZ0→2
Maximum discharge current (8/20 μs)50 kA
Follow current quenching capacity (eff) [N-PE]0,1 kA
Response time<100 ns
Maximum back-up fuse160 A
Permitted temperature range, min.-40 °C
Permitted temperature range, max.80 °C
Dimension255V
CO2 Footprint (GWP) Cradle-to-Gate0,35 kg CO2e / 1 Piece

Connectivity options

Arrester surge current (8/20 µs) [total]30 kA
Conductor cross-section, rigid (single-wire/multiwire), min.2,5 mm²
