Mesh cable tray GR 55

Item no. / Types

Length	3000 mm

Width

Height	58 mm

Wire diameter

Usable cross-section

Maintain electrical functions	no

Product description

Product description

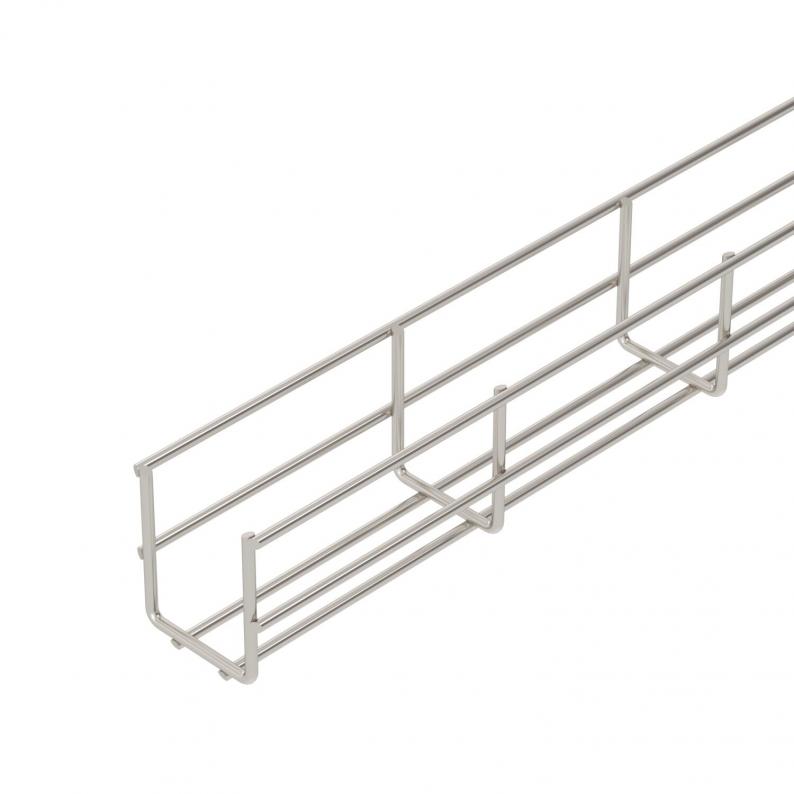

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Colour	stainless steel
Connector version	Without connectors
Dimension	55x50x3000
Dimension B	50 mm
Height	58 mm
Integrated partition	Without
Length	3000 mm
Maintain electrical functions	no
Material	Stainless steel
Profile shape	U-shaped
Rustproof steel, pickled	yes

Support spacing 1.0 m	0,35 kN/m
Support spacing 1.5 m	0,2 kN/m
Support spacing 2.0 m	0,1 kN/m
Support spacing 2.5 m	0,1 kN/m
Surface	Pickled
Type of connector, cable support system	Screwed
Usable cross-section	19 cm²
Usable cross-section	1900 mm²
Wide-span version	no
Width	50 mm
Wire diameter	3,8 mm

All types

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GR 55 050 A2	3000 mm	50 mm	58 mm	3.8 mm	19 cm²	no	6000904		1
GR 55 100 A2	3000 mm	100 mm	58 mm	3.8 mm	40 cm²	no	6000908	m	3 m
GR 55 150 A2	3000 mm	150 mm	58 mm	3.8 mm	63 cm²	no	6000912	m	3 m
GR 55 200V A2	3000 mm	200 mm	58 mm	4.8 mm	87 cm²	no	6000916	m	3 m
GR 55 300 A2	3000 mm	300 mm	58 mm	4.8 mm	129 cm²	no	6000924	m	3 m
GR 55 400 A2	3000 mm	400 mm	58 mm	4.8 mm	175 cm²	no	6000932	m	3 m
GR 55 500 A2	3000 mm	500 mm	58 mm	4.8 mm	220 cm²	no	6000940	m	3 m
GR 55 600 A2	3000 mm	600 mm	58 mm	4.8 mm	265 cm²	no	6000959	m	3 m

Downloads

Data sheet GR 55 050 A2 / 6000904 , 0.23MB , pdf

Download

Environmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
