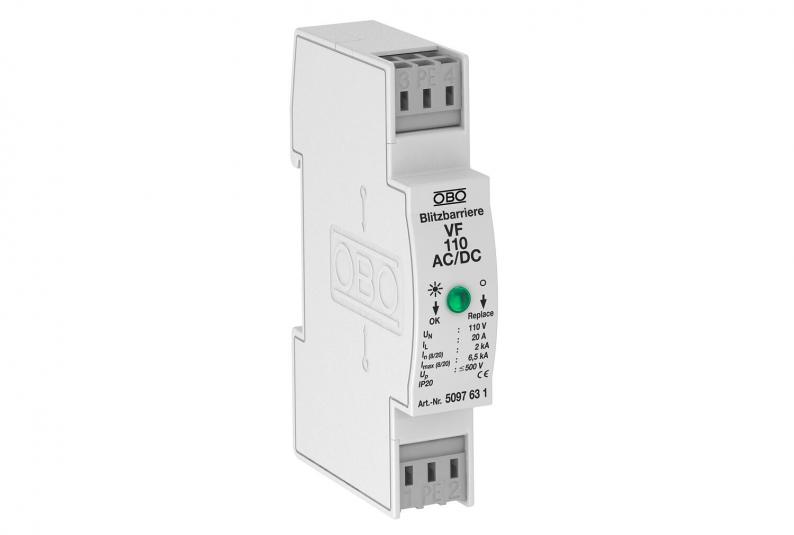

MCR protection for 2-pole for power supply, 110 V
Item no. 5097631 | EAN 4012195578154
- Product description
-
Product description
Surge protective device/fine protection type 3 to EN 61643-11
• Suitable for DC and AC voltage systems
• With visual function display
• With installation-friendly, screwless connection terminals

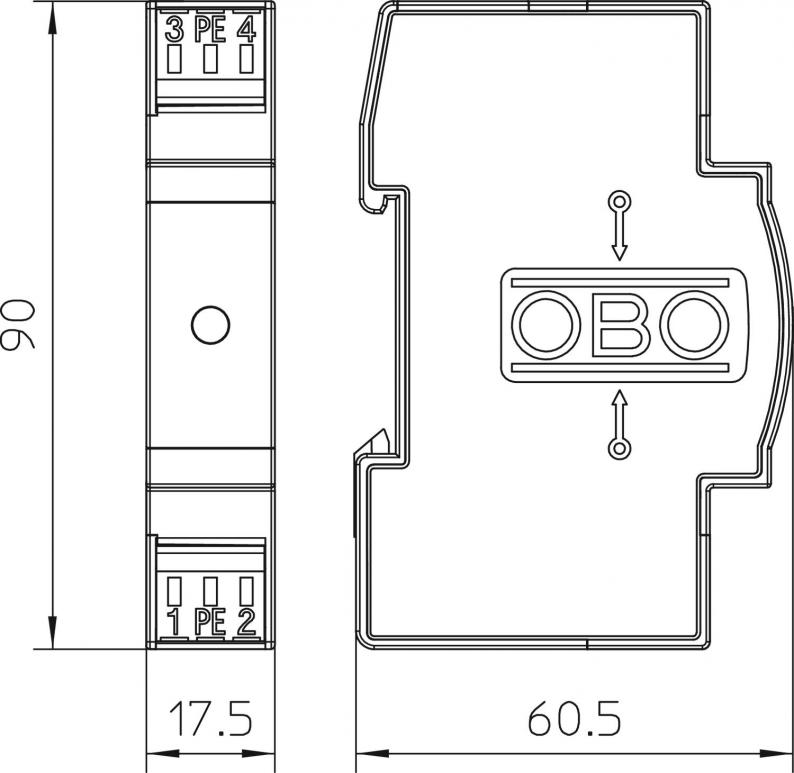

• In a space-saving 17.5 mm grid
• Y circuit
Application: Universal use on 35 mm DIN profile rail in every normal commercially available distributor housing.
-
- Technical data
-
Technical data
Blow-out no Cable type for surge protection devices Power cable AV Conductor cross-section, flexible (fine-wire), min. 2,5 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2,5 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 0,14 mm² Dimension 110V AC Explosion-tested version no Installation type DIN rail 35 mm Lightning protection zone LPZ 2→3 Max. mains-side overcurrent protection 20 Maximum back-up fuse 20 A Maximum continuous voltage AC 150 Maximum continuous voltage DC 200 Maximum discharge current (8/20 μs) 6,5 kA Network form Other Nominal discharge current (8/20 µs) 2 kA Nominal voltage AC (50/60 Hz) 110 V OBO_Nominal load current (input/output terminal) 20 A Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 3 Pole version 2 Protection level wire-earth <1400 V Protection level wire-wire <500 V Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Test class, type 3 yes Version for 110 V version - All types
-
All types
- Downloads
-
Data sheet VF110-AC DC / 5097631 , 0.26MB , pdfDeclaration of conformity VF110-AC DC / 5097631 , 0.11MB , pdfREACH Declaration of conformity VF110-AC DC / 5097631 , 0.28MB , pdfRoHS Declaration of conformity VF110-AC DC / 5097631 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, VF...AC/DC; VF...AC/DC-FS; VF 230 AC-FS , 0.06MB , pdf
