Joint plate FS 385 | 4 | 400 | 1.5
morepic-1 video-1

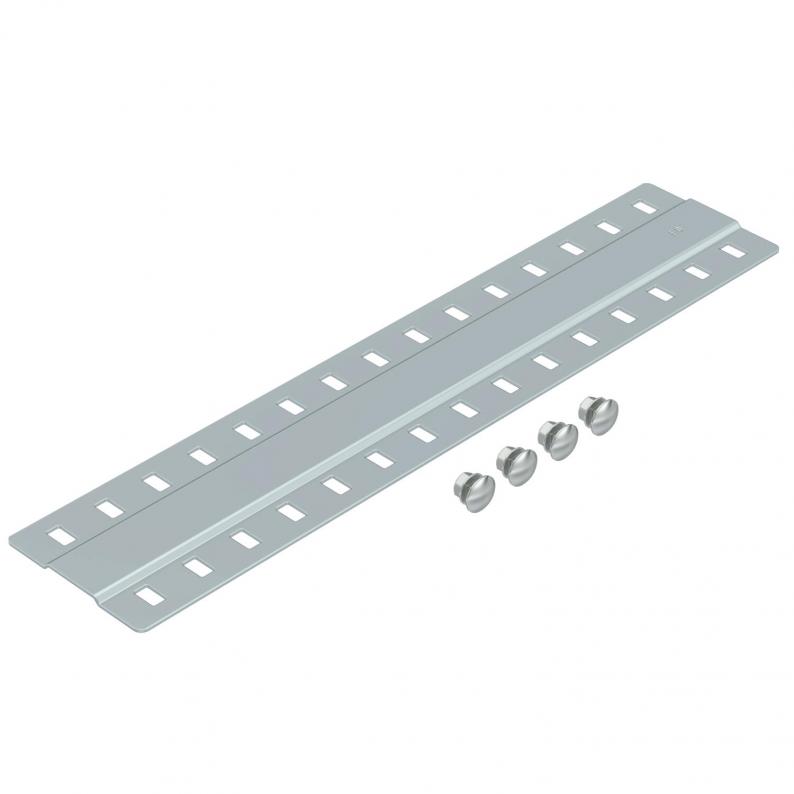

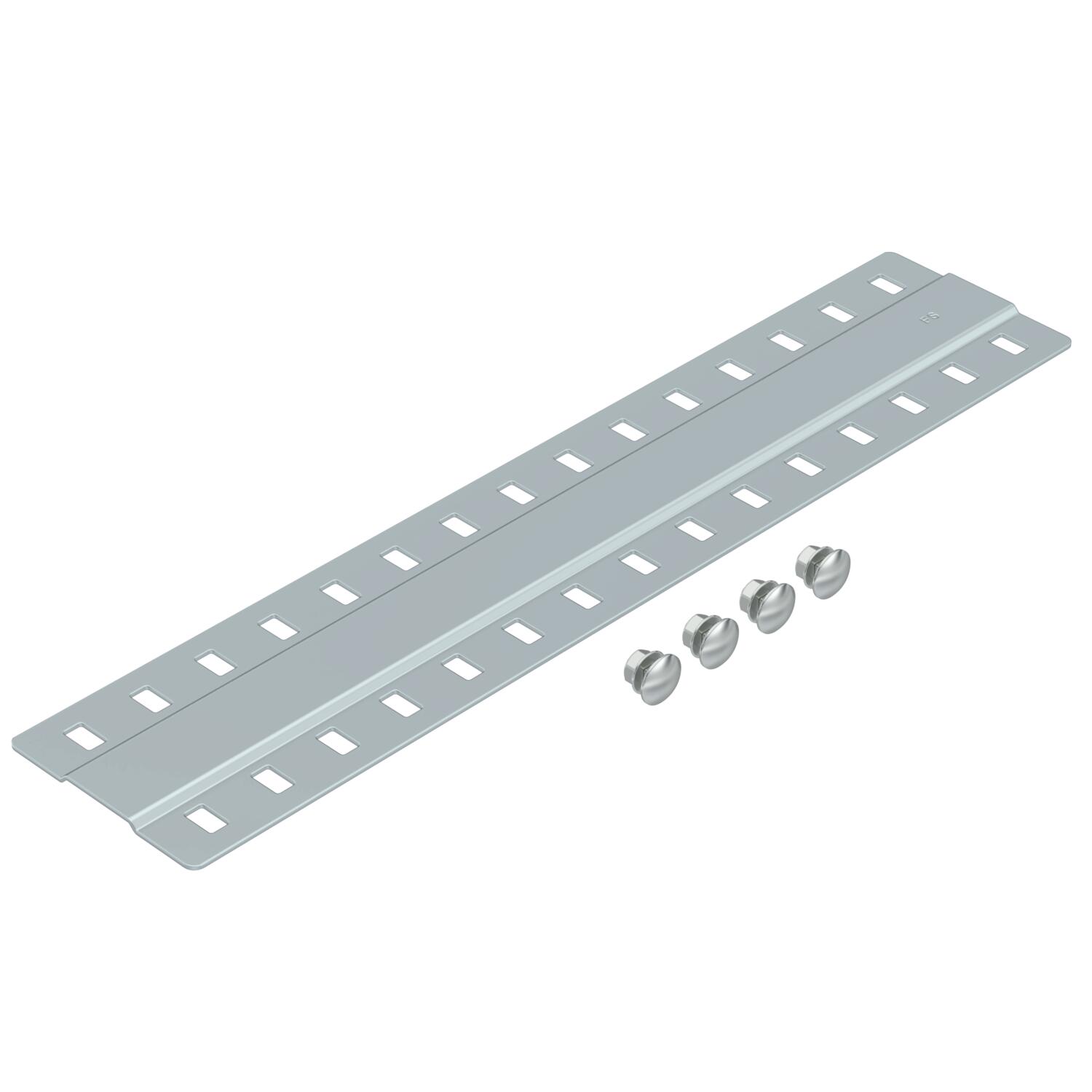

Joint plate FS

Item no. 7070221 | EAN 4012196095001

4 mm
1.5 mm
Product description

Product description

Wide joint plate for use in all cable trays and wide span cable trays.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector

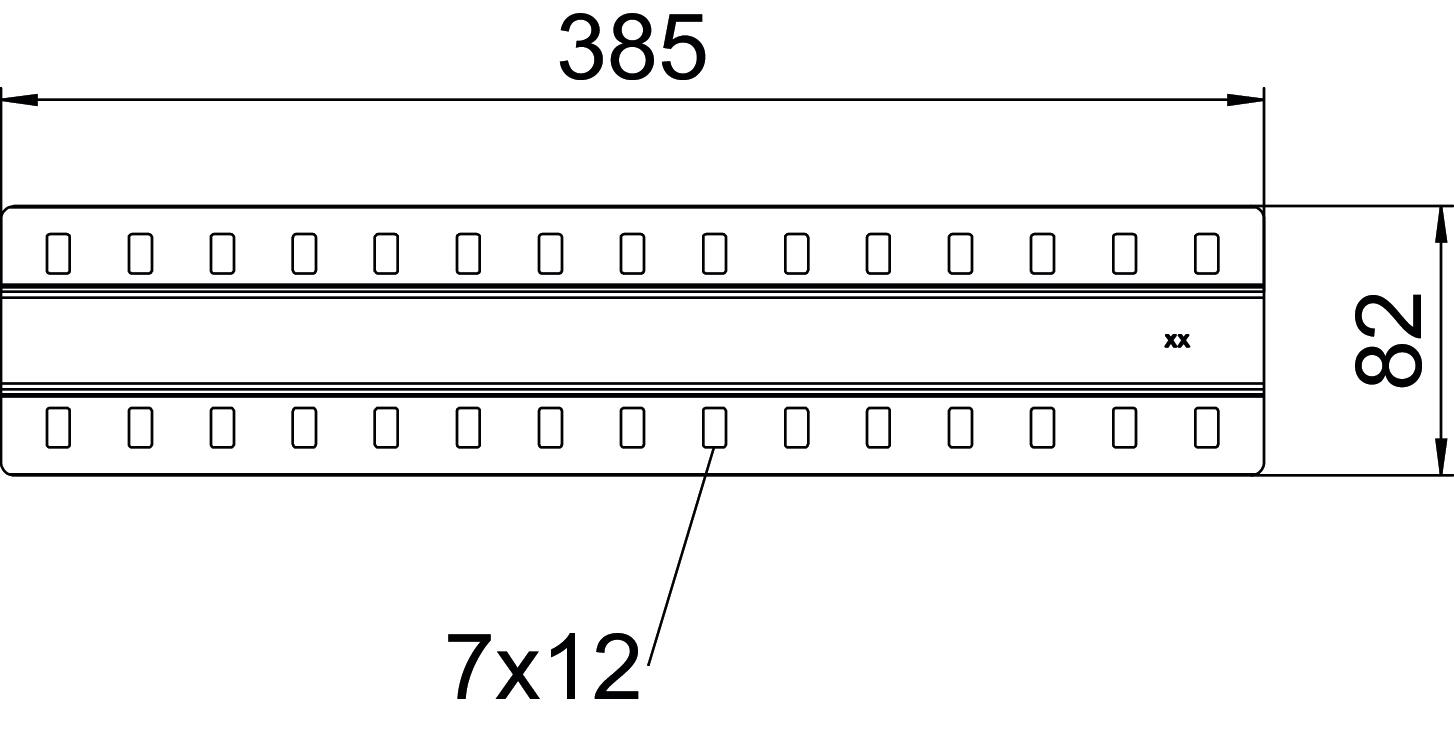

Dimension B400mm
Dimension B 400 mm
Height 4 mm
Length 400 mm
Maintain electrical functions yes
Material Steel
Plate thickness 1,5 mm
Quantity of bolts 4 St.
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for cable tray system height 35 mm
Suitable for mesh cable tray no
Surface Strip galvanized
Version for Joint plate
Wide-span version yes
Width 16 in
Width 385 mm
All types

All types

Types Width Height Dimension B Plate thickness Item no. Quantity SSU
SSLB 100 FS 85 mm 4 mm 100 mm 1.5 mm 7070205
20 piece
SSLB 150 FS 135 mm 4 mm 150 mm 1.5 mm 7070209
20 piece
SSLB 200 FS 185 mm 4 mm 200 mm 1.5 mm 7070213
20 piece
SSLB 300 FS 285 mm 4 mm 300 mm 1.5 mm 7070217
20 piece
SSLB 400 FS 385 mm 4 mm 400 mm 1.5 mm 7070221
20 piece
SSLB 500 FS 485 mm 4 mm 500 mm 1.5 mm 7070225
20 piece
SSLB 600 FS 585 mm 4 mm 600 mm 1.5 mm 7070233
20 piece
Downloads

Download

Download
Download
Download
Download

Declaration of conformity SSLB 400 FS / 7070221 , 0.10MB , pdf
Download
UK Declaration of Conformity SSLB 400 FS / 7070221 , 0.14MB , pdf
Download
REACH Declaration of conformity SSLB 400 FS / 7070221 , 0.12MB , pdf
Download
RoHS Declaration of conformity SSLB 400 FS / 7070221 , 0.12MB , pdf
Download

Download
Download
Download

SSLB 400 FS / 7070221
