- Product description
-

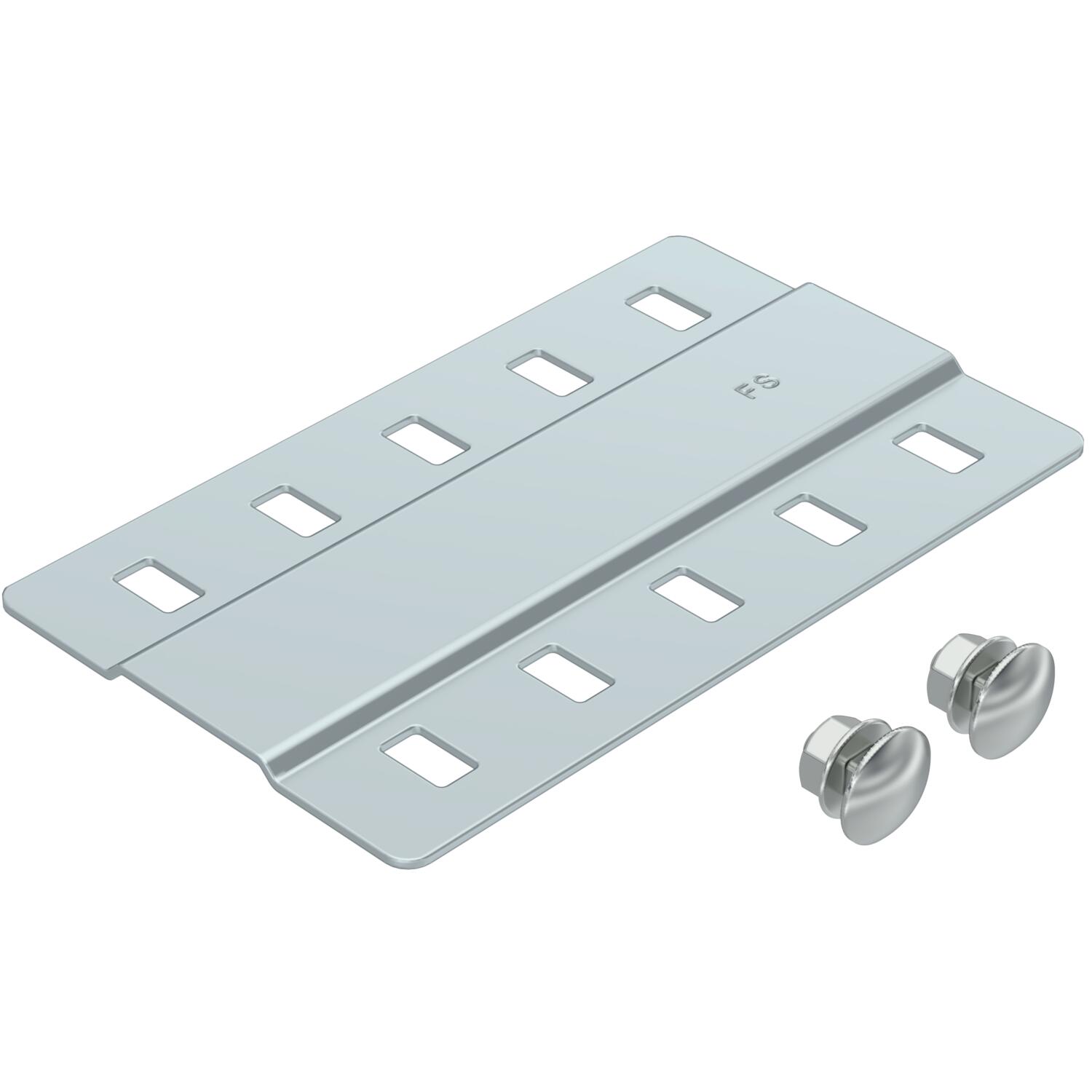

Product descriptionWide joint plate for use in all cable trays and wide span cable trays.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector Dimension B150mm Dimension B 150 mm Height 4 mm Length 150 mm Maintain electrical functions yes Material Steel Plate thickness 1,5 mm Quantity of bolts 2 St. Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 35 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Joint plate Wide-span version yes Width 6 in Width 135 mm - All types
-
All types
- Downloads
-
Data sheet SSLB 150 FS / 7070209 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SSLB 150 FS / 7070209 , 0.10MB , pdfUK Declaration of Conformity SSLB 150 FS / 7070209 , 0.14MB , pdfREACH Declaration of conformity SSLB 150 FS / 7070209 , 0.12MB , pdfRoHS Declaration of conformity SSLB 150 FS / 7070209 , 0.12MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
