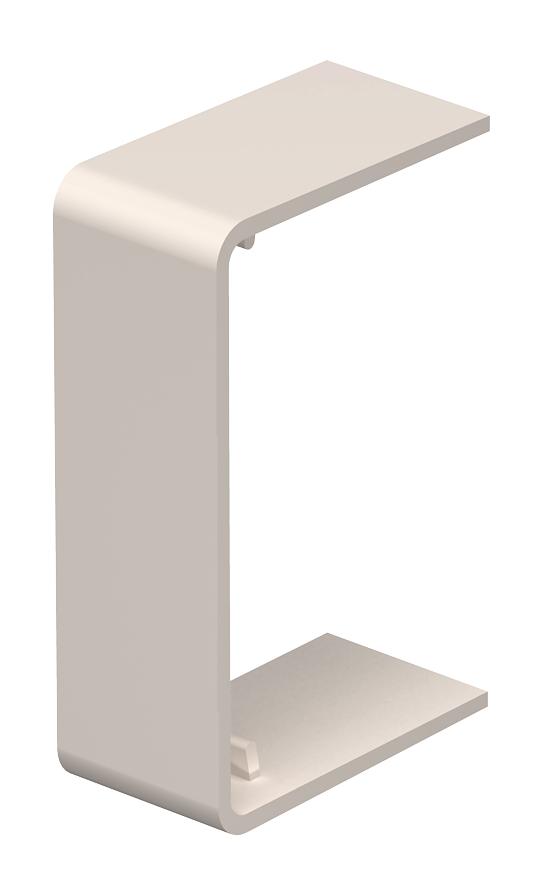

Joint cover, for trunking, type WDK 60090

Item no. 6193592 | EAN 4012195462217

Product description

Product description

Joint cover for hiding cut edges and for smooth connection of trunking segments.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Colour Cream; RAL 9001
Dimension 62x93x18mm
Fastening type Lockable
Halogen-free no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Version for Trunking cut cover

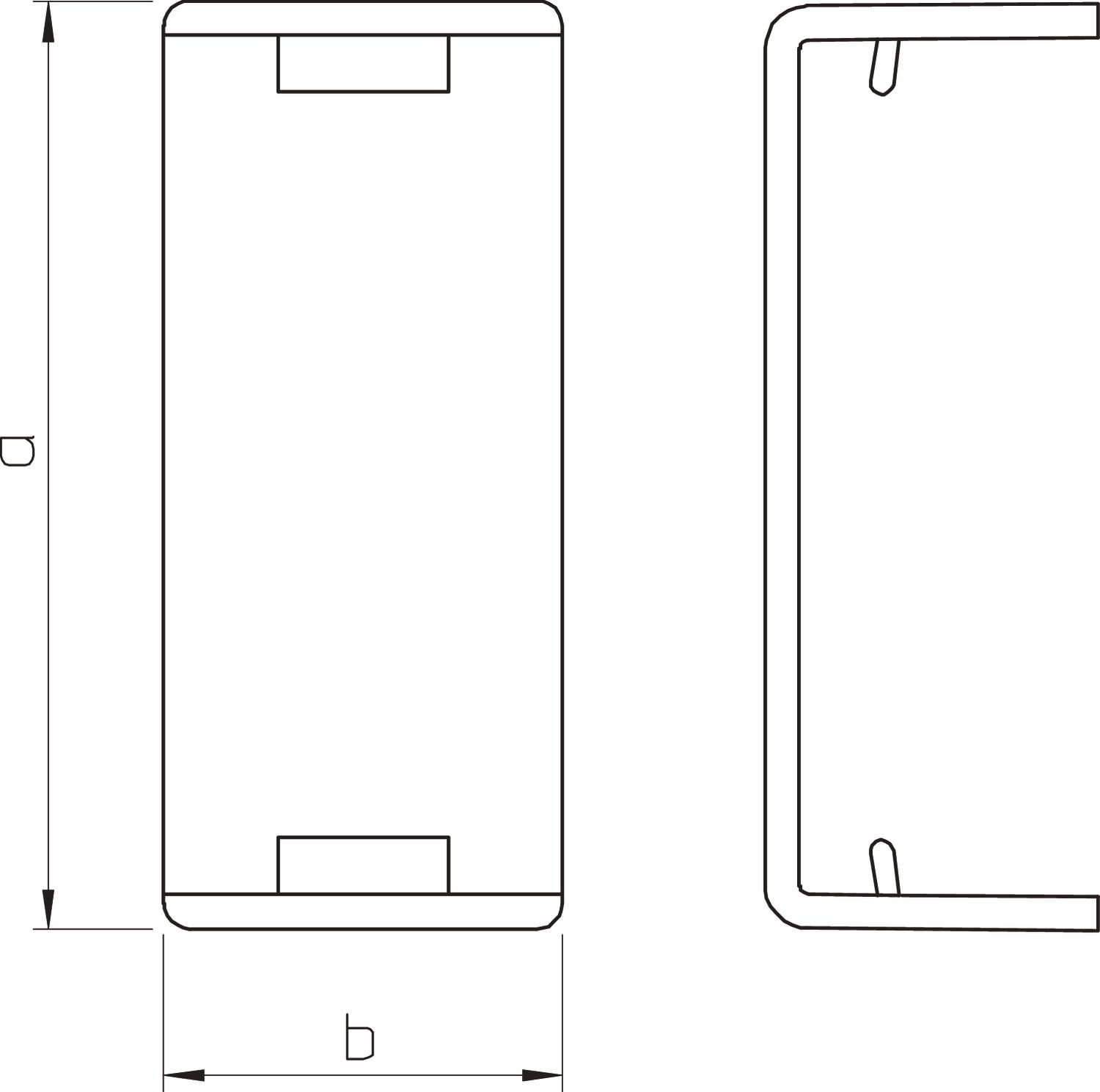

Dimensions

Dimension a 94 mm
Dimension b 18 mm
Height 62 mm
Length 18 mm
Width 94 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS60090RW Pure white; RAL 9010 6193590
20 piece
WDK HS60090CW Cream; RAL 9001 6193592
20 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
