- Product description
-
Product description

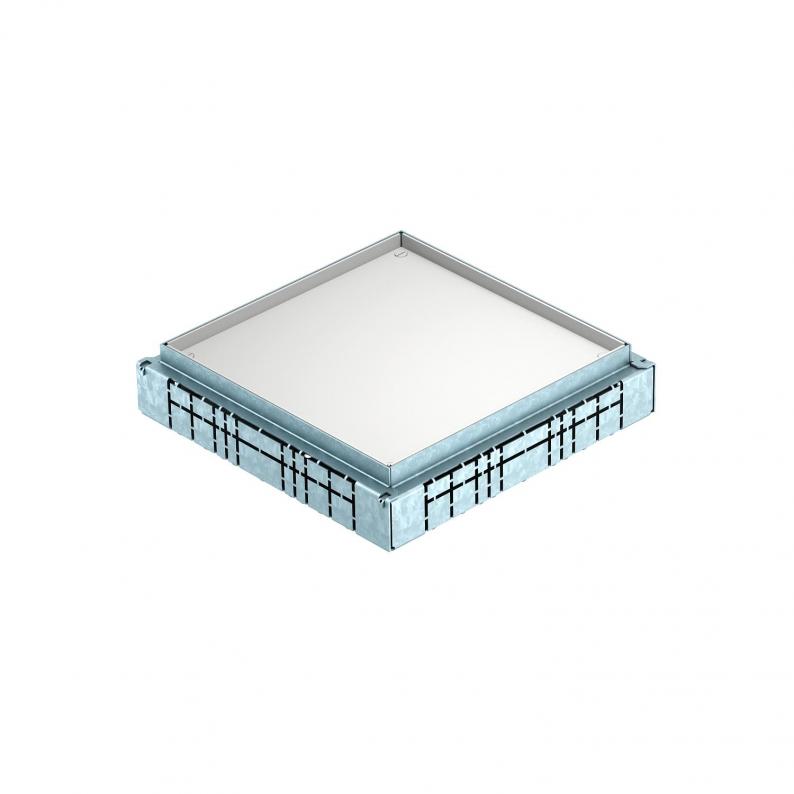

Underfloor junction box for metal ducts in the heights 25 mm and 38 mm.
-
- Technical data
-
Technical data
Decouplable no Depth of floor covering recess 10 mm Dimension 272x272x60 Duct height, min. 25 mm Expansion option For installation of accessories Floor plate yes For pipe connection no Installation opening for on-floor tank no Material Steel Material thickness 1,5 mm Suitable for screed-covered underfloor ducts yes Surface Strip galvanized Trunking height, max. 38 mm Trunking width, max. 200 mm Trunking width, min. 50 mm Dimensions

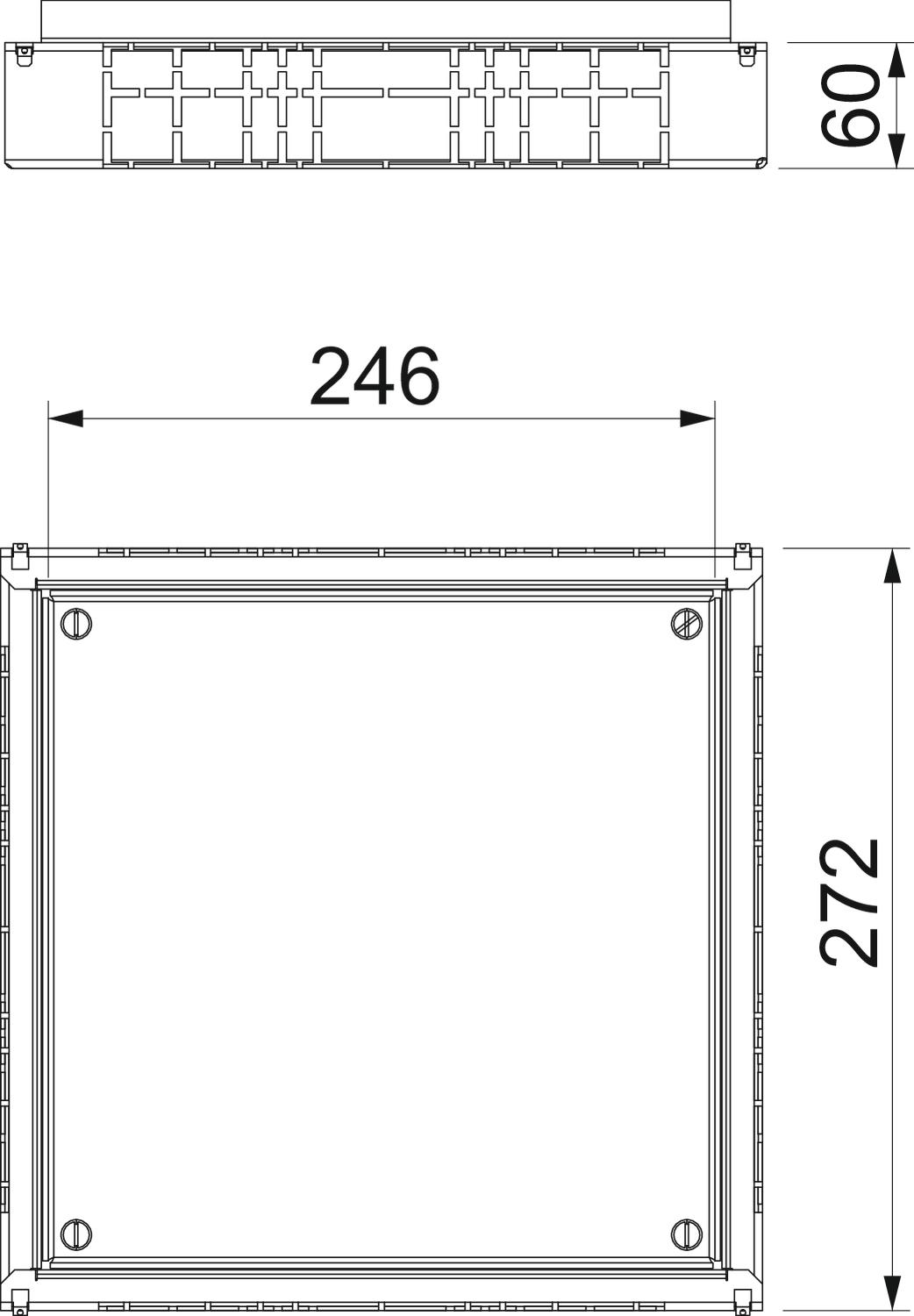

Dimension A 272 mm Dimension a 246 mm Dimension b 246 mm Dimension B 272 mm Dimension h 60 mm - All types
- Downloads
-
Data sheet JBT 20038 10 / 7490103 , 0.26MB , pdfCatalogue Underfloor systems , 2.10MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdf
