- Product description
-
Product description

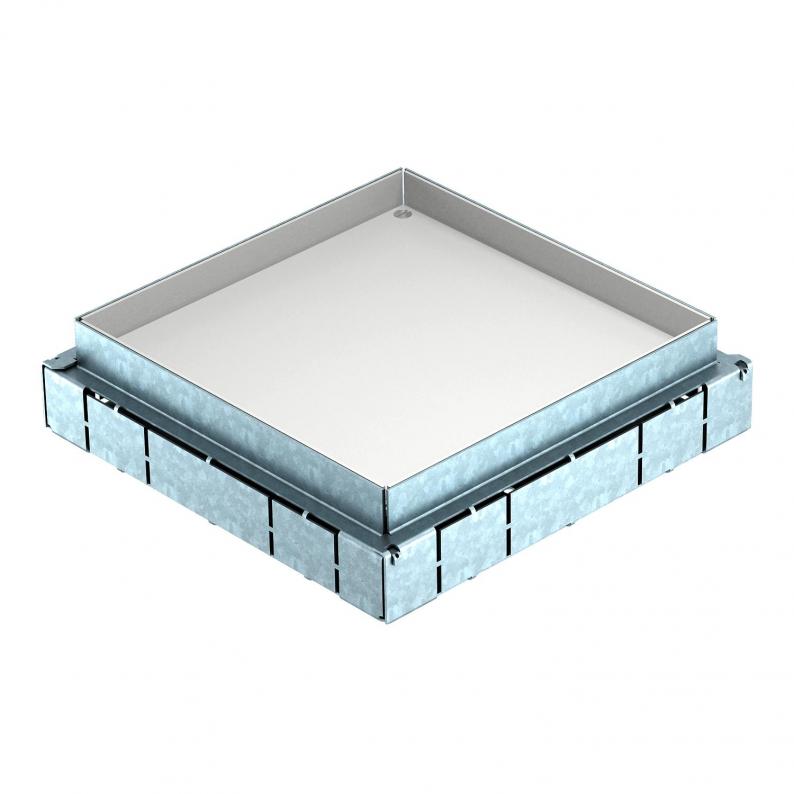

Underfloor junction box for metal duct in the heights 25 mm and 38 mm.
-
- Technical data
-
Technical data
Decouplable no Depth of floor covering recess 20 mm Dimension 272x272x70 Duct height, min. 38 mm Expansion option For installation of accessories Floor plate yes For pipe connection no Installation opening for on-floor tank no Material Steel Suitable for screed-covered underfloor ducts yes Suitable for underfloor ducts no Surface Strip galvanized Trunking width, max. 200 mm Trunking width, min. 50 mm Dimensions

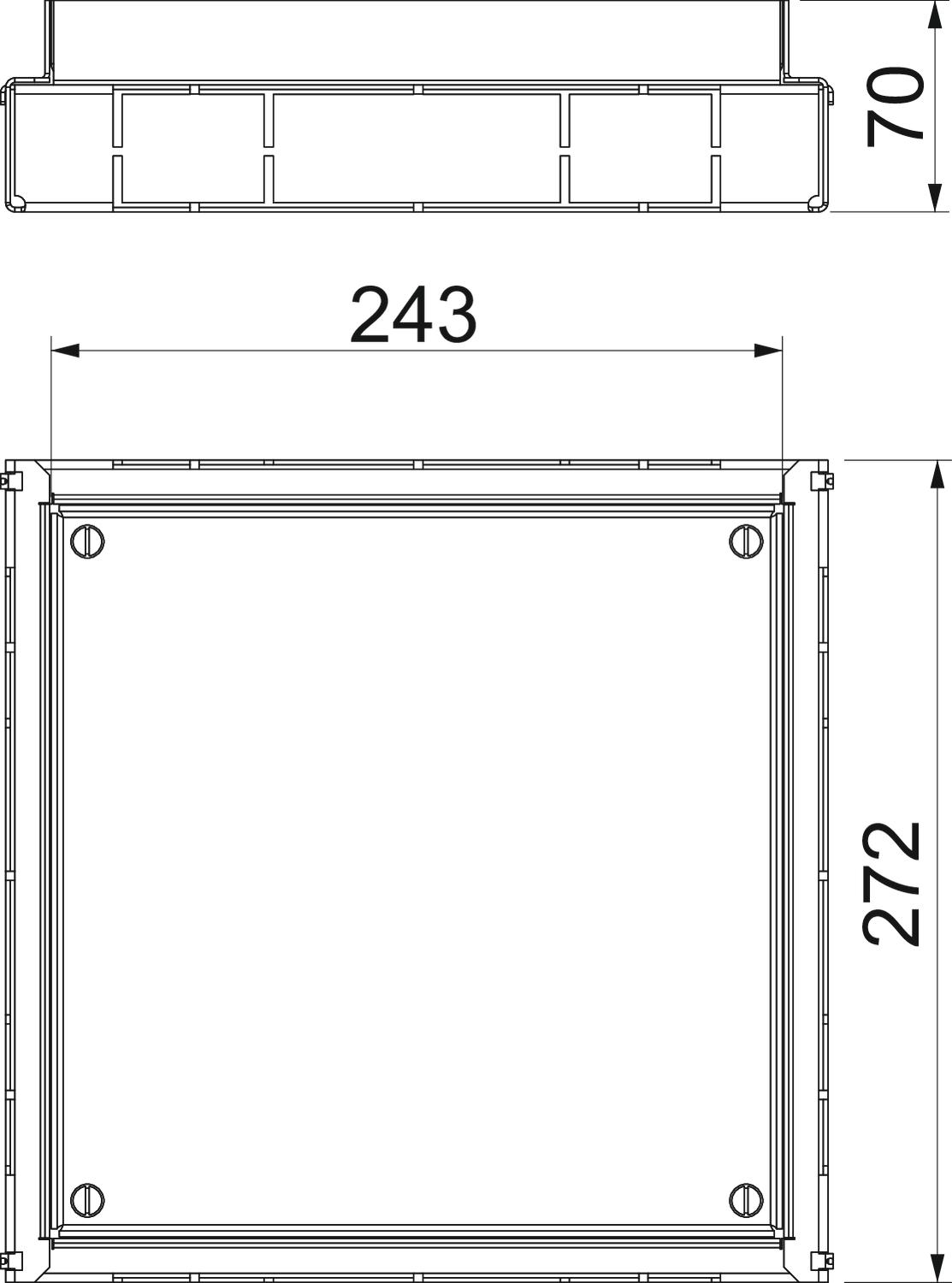

Dimension a 243 mm Dimension A 272 mm Dimension b 243 mm Dimension B 272 mm Dimension h 70 mm - All types
- Downloads
-
Data sheet JBM 20038 20 / 7490132 , 0.24MB , pdfCatalogue Underfloor systems , 2.10MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdf
