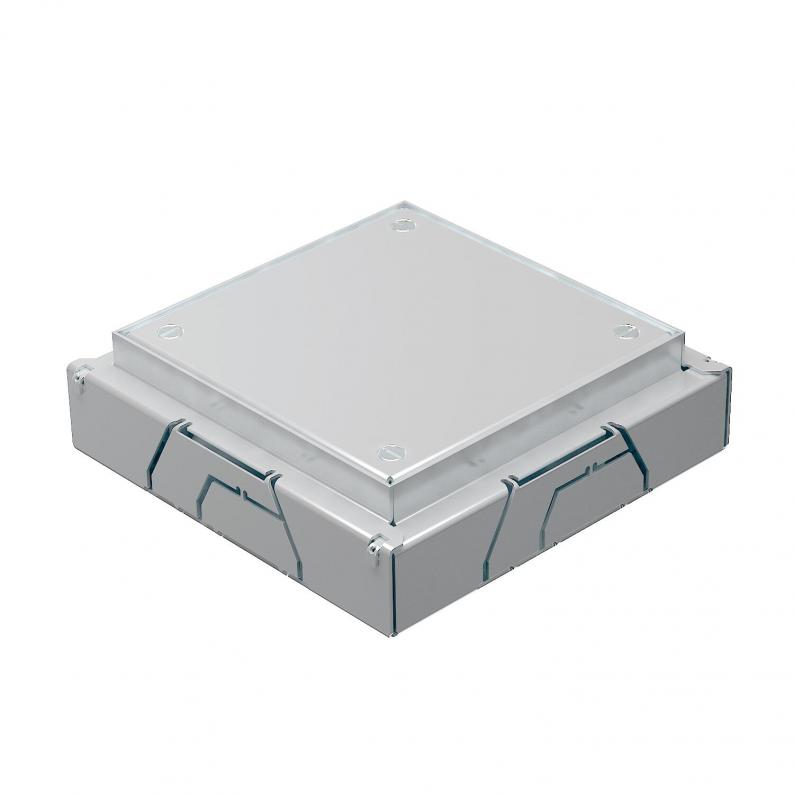

JBF underfloor connection socket for 1 PVC duct
Item no. 7490140 | EAN 4012196432325
- Product description
-
Product description
Underfloor junction box for PVC ducts in the heights 25 mm and 35 mm.
-
- Technical data
-
Technical data
Decouplable no Dimension 185x185x55 Duct height, min. 25 mm Expansion option For installation of accessories Floor plate yes For pipe connection no Installation opening for on-floor tank no Material Steel Minimum screed height 55 Number of compartments 1 St. Suitable for screed-covered underfloor ducts yes Surface Strip galvanized Trunking height, max. 35 mm Trunking width, max. 90 mm Trunking width, min. 60 mm Dimensions

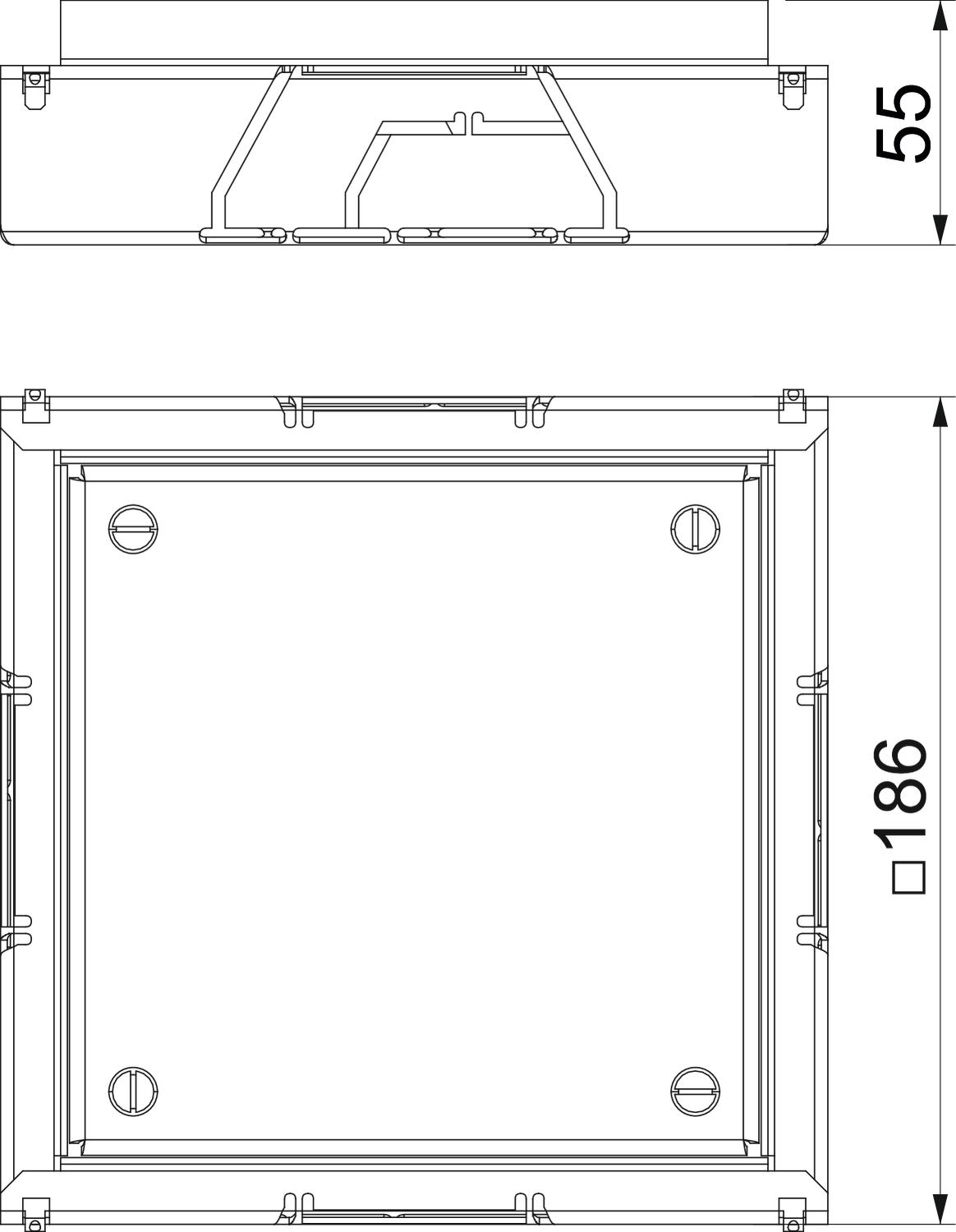

Dimension a 156 mm Dimension A 186 mm Dimension b 156 mm Dimension h 55 mm Height 55 mm Length 186 mm Width 186 mm - All types
- Downloads
-
Data sheet JBF1 9035 / 7490140 , 0.26MB , pdfCatalogue Underfloor systems , 2.10MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdf
