JBC underfloor junction box - for MD duct

Item no. / Types

Trunking width, min.	50 mm

Trunking width, max.

Duct height, min.	25 mm

Trunking height, max.	38 mm

Back to overview

Product description

Product description

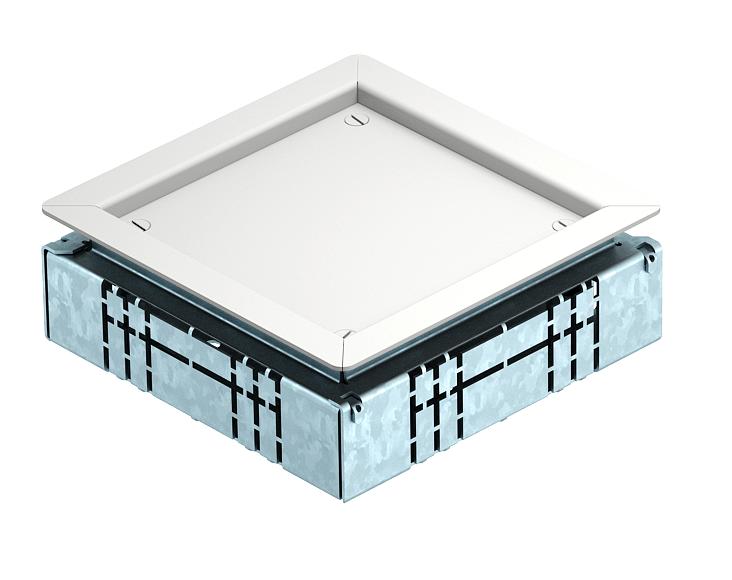

Underfloor junction box for metal ducts in the heights 25 mm and 38 mm.

Technical data

Decouplable	no
Depth of floor covering recess	10 mm

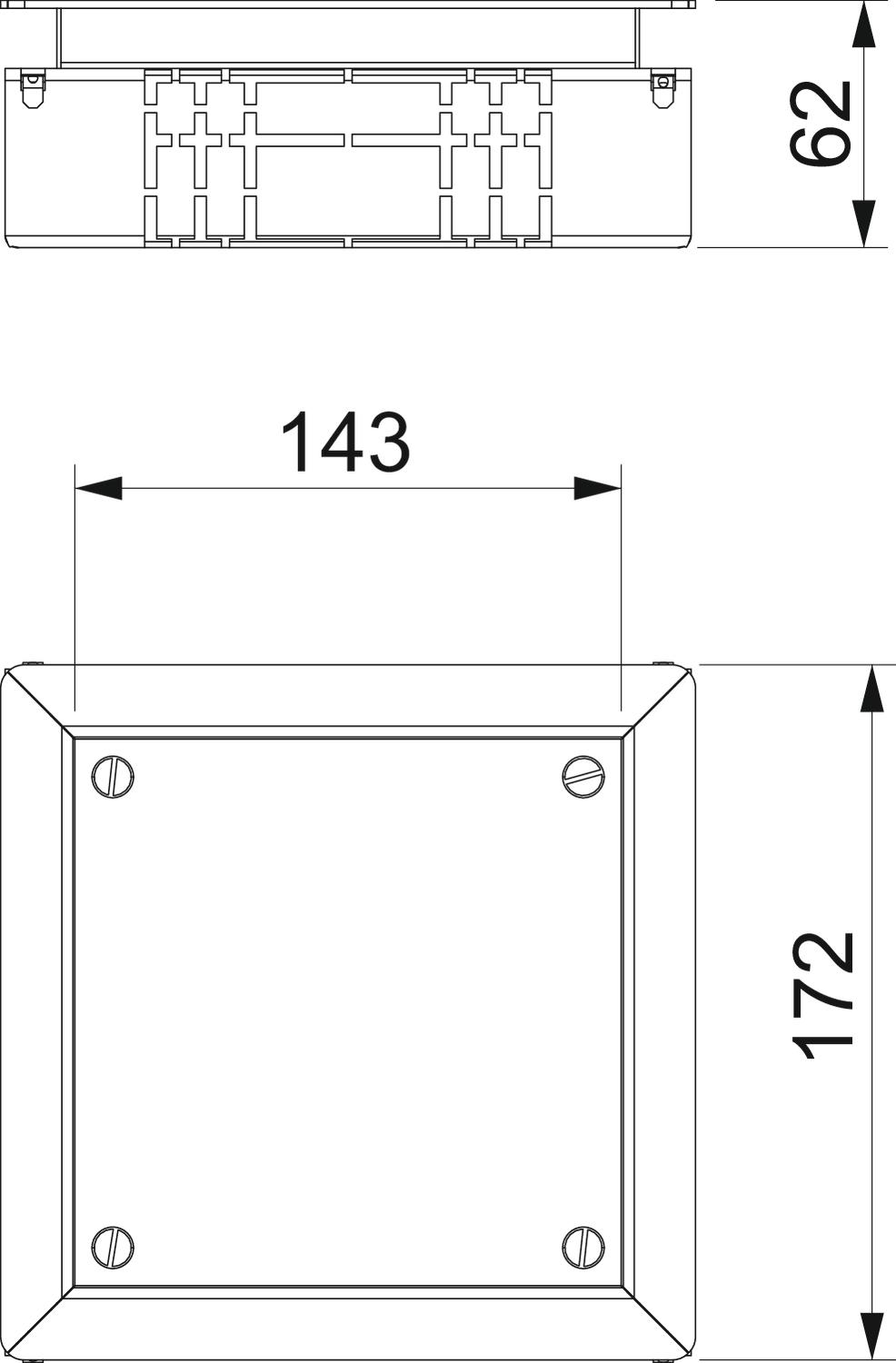

Dimension	172x172x60
Dimension h	64 mm
Duct height, min.	25 mm
Expansion option	For installation of accessories
Floor plate	yes

For pipe connection	no
Installation opening for on-floor tank	no
Material	Steel
Suitable for screed-covered underfloor ducts	yes
Trunking height, max.	38 mm
Trunking width, max.	300 mm
Trunking width, min.	50 mm

All types

All types

Types	Trunking width, min.	Trunking width, max.	Duct height, min.	Trunking height, max.	Item no.	Quantity	SSU
JBC 10038 10	50 mm	100 mm	25 mm	38 mm	7490126	piece	1 piece
JBC 20038 10	50 mm	200 mm	25 mm	38 mm	7490127	piece	1 piece
JBC 30038 10	50 mm	300 mm	25 mm	38 mm	7490128	piece	1 piece
JBC 10038 10 1.6	50 mm	300 mm	25 mm	38 mm	7490146	piece	1 piece
JBC 20038 10 1.6	50 mm	300 mm	25 mm	38 mm	7490147	piece	1 piece
JBC 30038 10 1.6	50 mm	300 mm	25 mm	38 mm	7490148	piece	1 piece
JBC 40038 10 1.6	50 mm	300 mm	25 mm	38 mm	7490149	piece	1 piece
