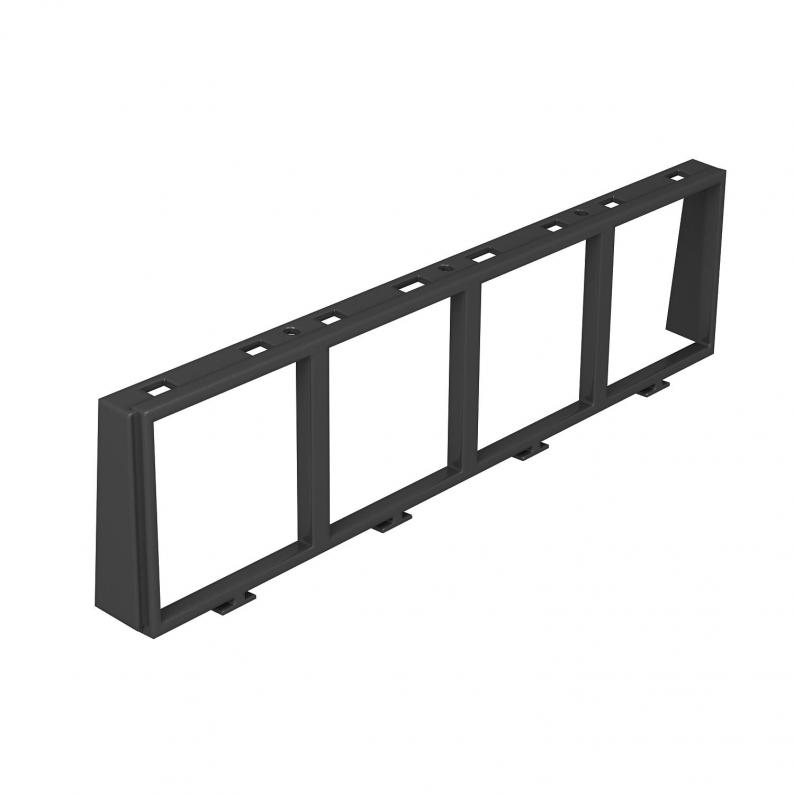

Installation frame for four single Modul 45® devices
Item no. 7408670 | EAN 4012195674498
- Product description
-
Product descriptionFor the installation of 4 individual Modul 45 devices for System 55 service outlets with mounting support for vertical installation of Modul 45 devices.
The installation frame is designed for use with 0° sockets (normal installation position, contact openings on right and left) and their use in conjunction with straight connectors (not angled connectors).
-
- Technical data
-
Technical data
Accessory mounting type Lock Colour Graphite black; RAL 9011 Floor plate no Material Polycarbonate/Acrylnitrile-butadiene-styrene Number of installable devices 4 Seal installation option no Suitable for cavity floor installation no Suitable for raised floor installation no Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no - All types
- Downloads
-
Data sheet MT45V 4 / 7408670 , 0.17MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Floor socket GES R2 , 1.06MB , pdfMounting instructions Mounting instructions Universal support , 0.16MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdfMounting instructions Mounting instructions OKB-U and OKB-E , 1.39MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 3.48MB , pdfMounting instructions Service outlet for universal mounting GES9-3B GES-3S , 4.68MB , pdfMounting instructions Mounting instructions, GES9-3B, GES9-3S plastic service unit , 0.04MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.83MB , pdfNo invitation to tender text is available for this product.
