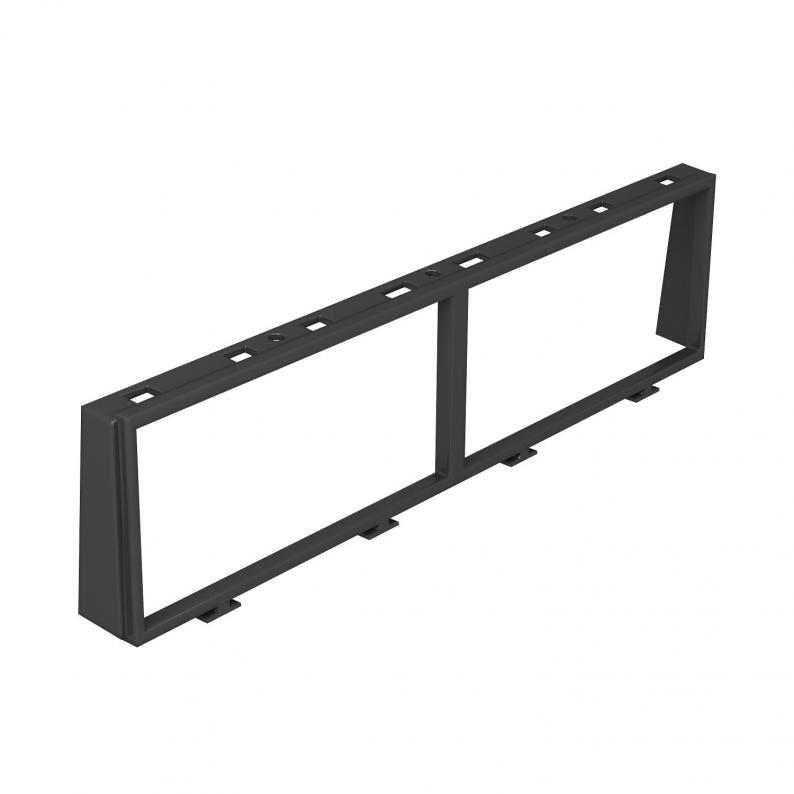

Installation frame for combination of 2x and 2x Modul 45® devices
Item no. 7408682 | EAN 4012195674528
- Product description
-
Product descriptionFor the installation of a combination of double and double Modul 45 sockets for System 55 service outlets with mounting support for vertical installation of Modul 45 devices. The installation frame is designed for use with 0° sockets for straight connectors (not angled connectors).
-
- Technical data
-
Technical data
Accessory mounting type Lock Colour Graphite black; RAL 9011 Floor plate no Material Polycarbonate/Acrylnitrile-butadiene-styrene Number of installable devices 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes - All types
- Downloads
-
Data sheet MT45V 2+2 / 7408682 , 0.16MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Floor socket GES R2 , 1.06MB , pdfMounting instructions Mounting instructions Universal support , 0.16MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdfMounting instructions Mounting instructions OKB-U and OKB-E , 1.39MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 3.48MB , pdfMounting instructions Service outlet for universal mounting GES9-3B GES-3S , 4.68MB , pdfMounting instructions Mounting instructions, GES9-3B, GES9-3S plastic service unit , 0.04MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.83MB , pdfNo invitation to tender text is available for this product.
