Impact head for earth rod BS

Item no. / Types

for earth rods

Product description

Product description

• Suitable for earth rod types CBER or SER

Technical data

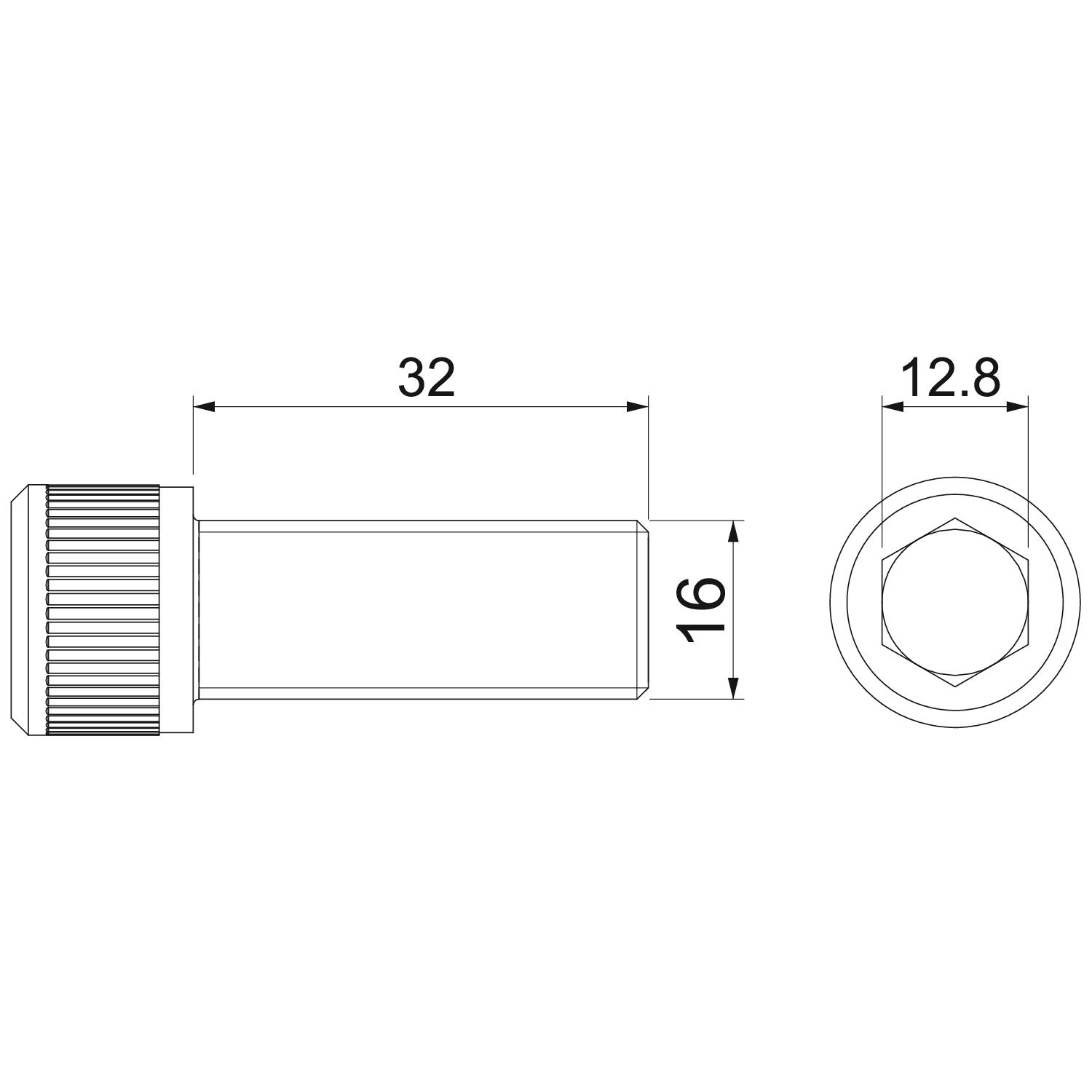

for earth rods	16 mm
Length	32 mm

Seat systems	Hexagonal seat

All types

All types

Types	for earth rods	Item no.	Quantity	SSU
1820 16 CBER	16 mm	5450120	piece	25 piece
1820 17 CBER	17.2 mm	5450121	piece	25 piece
1820 20 CBER	20 mm	5450122	piece	25 piece
1820 16 SER	16 mm	5450130	piece	25 piece
1820 20 SER	20 mm	5450132	piece	25 piece
