Head plate US 5 NOK FT
Item no. 6348939 | EAN 4012196437771
- Product description
-

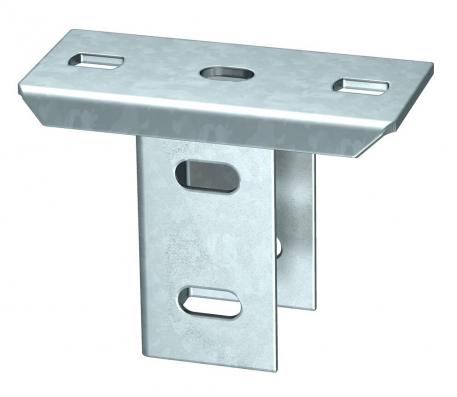

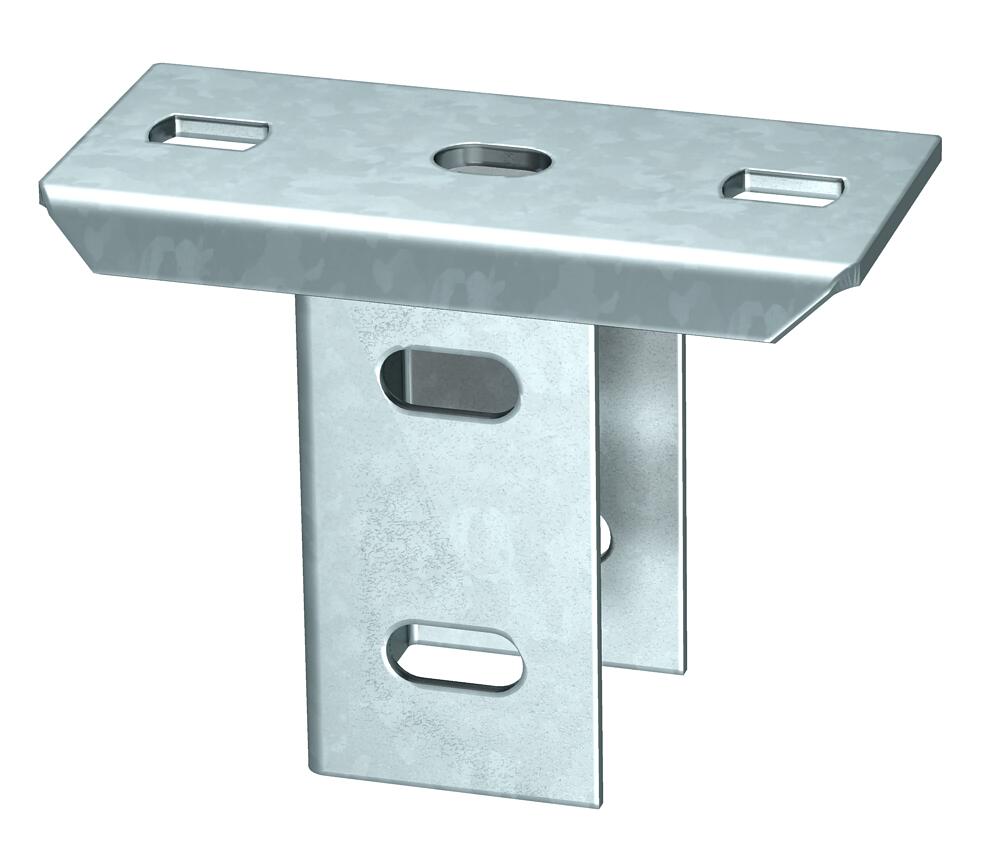

Product descriptionHead plate with U support mounting rotated 90°.
-
- Technical data
-
Technical data

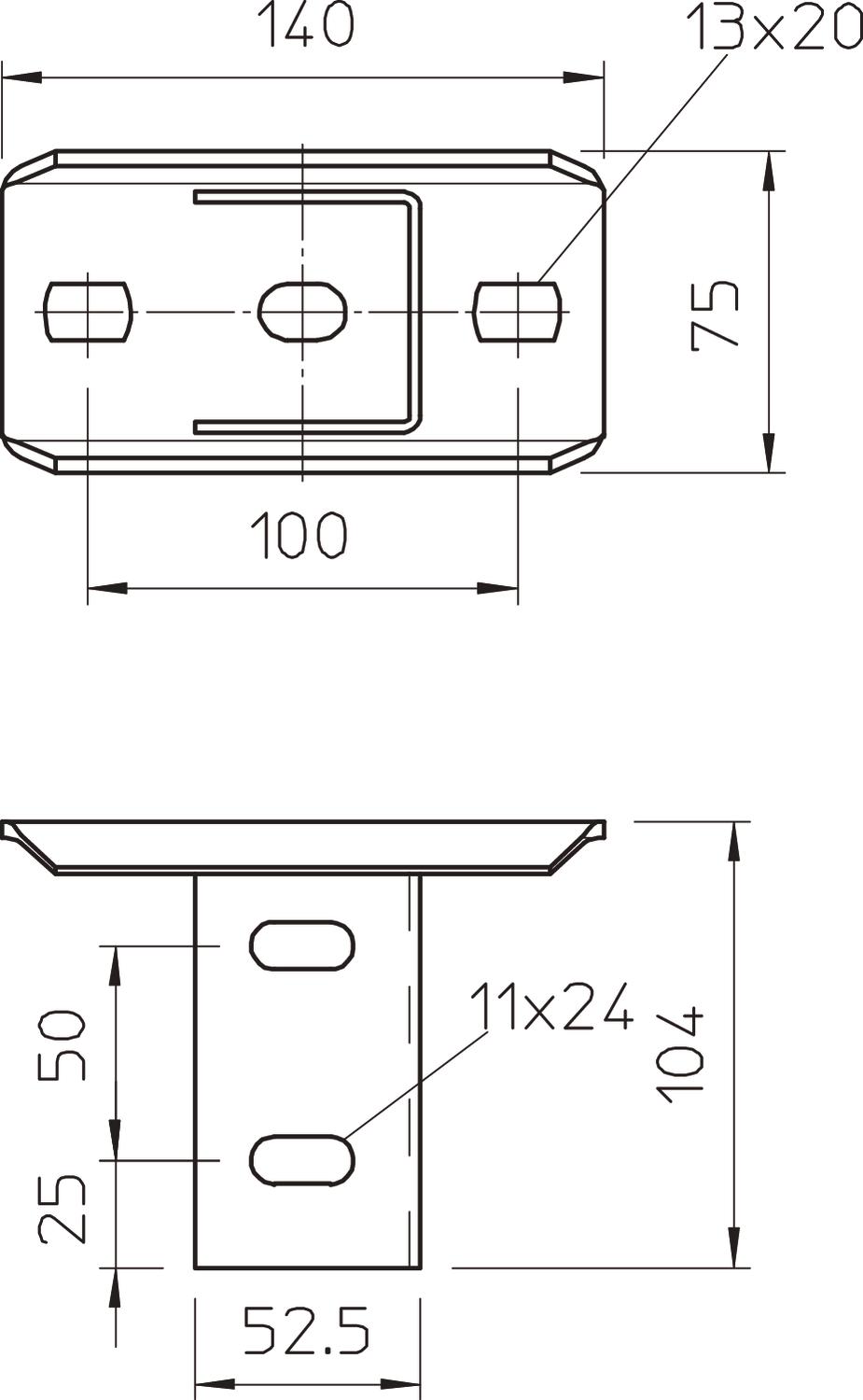

Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension 140x75x104 Height 104 mm Length 140 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for ceiling fastening yes Suitable for panel fastening no Suitable for profile shapes U profile Surface Hot-dip galvanised Version for Screw head plate Width 75 mm - All types
- Downloads
-
Data sheet KUS 5 NOK FT / 6348939 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity KUS 5 NOK FT / 6348939 , 0.13MB , pdfREACH Declaration of conformity KUS 5 NOK FT / 6348939 , 0.12MB , pdfRoHS Declaration of conformity KUS 5 NOK FT / 6348939 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
