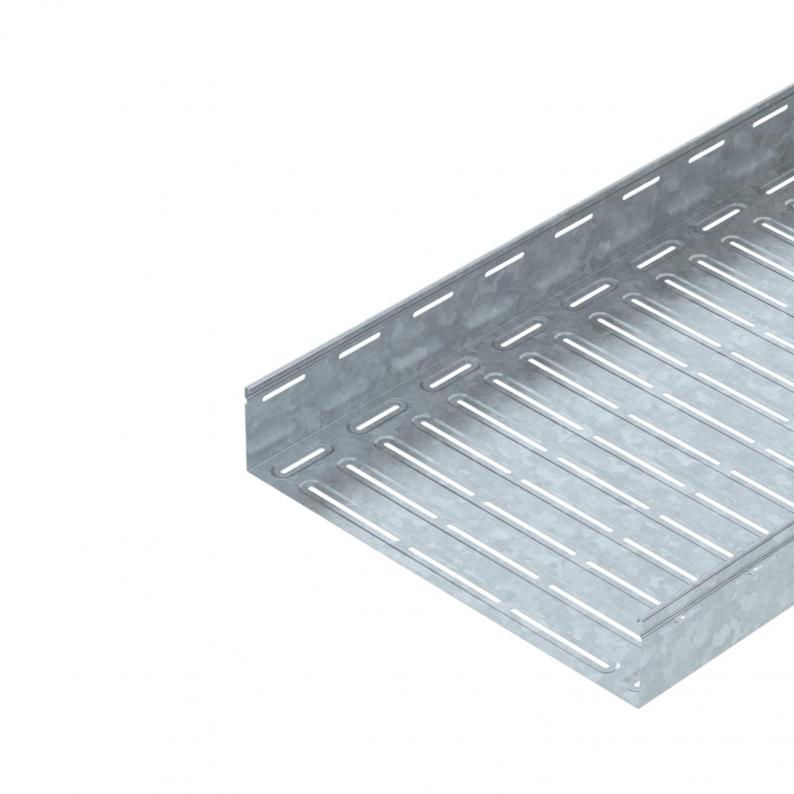

GX cable tray, perforated, FT
Item no. 6483056 | EAN 4012195506676
- Product description
-
Product descriptionGKS 100 GX = perforated cable tray system with 100 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data

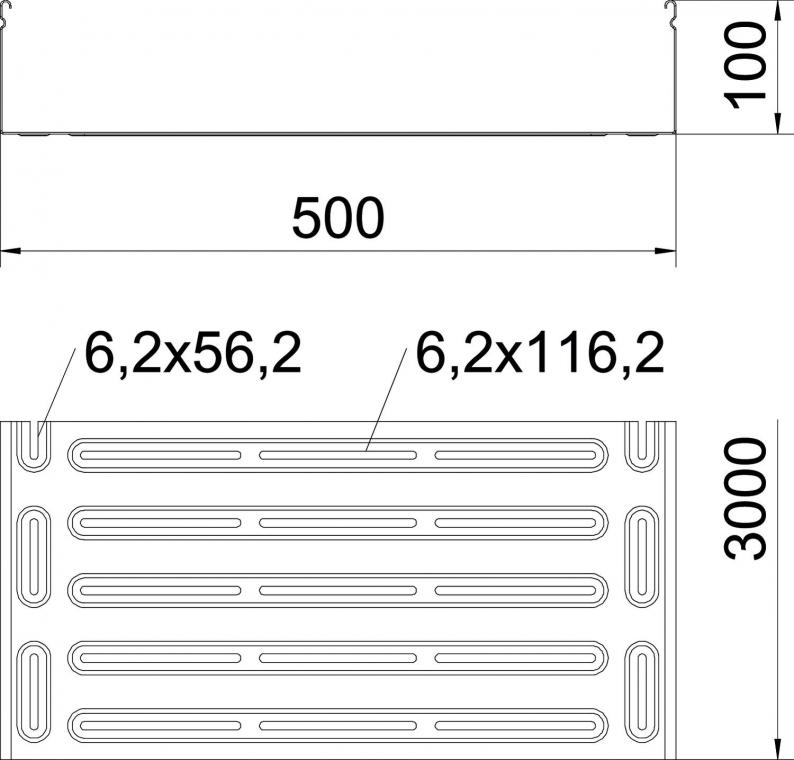

Colour zinc Dimension 100x500x3000 Dimension B 500 mm Dimension D 110 mm Dimension H 100 mm Dimension L 3000 mm Height 100 mm Length 3000 mm Load test type according to IEC 61537 Type II Material Steel Mounting perforation in base yes Plate thickness 1,2 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 1,6 kN/m Support spacing 1.5 m 0,9 kN/m Support spacing 2.0 m 0,8 kN/m Support spacing 2.5 m 0,65 kN/m Support spacing 3.0 m 0,6 kN/m Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 49800 mm² Usable cross-section 498 cm² Wide-span version no Width 500 mm With cover no Technical data
Load diagram, cable tray, type GKS GX100
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
- Downloads
-
Data sheet GKS GX 150 FT / 6483056 , 0.44MB , pdfCatalogue Cable support systems , 2.10MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfNo invitation to tender text is available for this product.
