GX cable tray, perforated, FT
Item no. 6483054 | EAN 4012195506652
- Product description
-
Product description

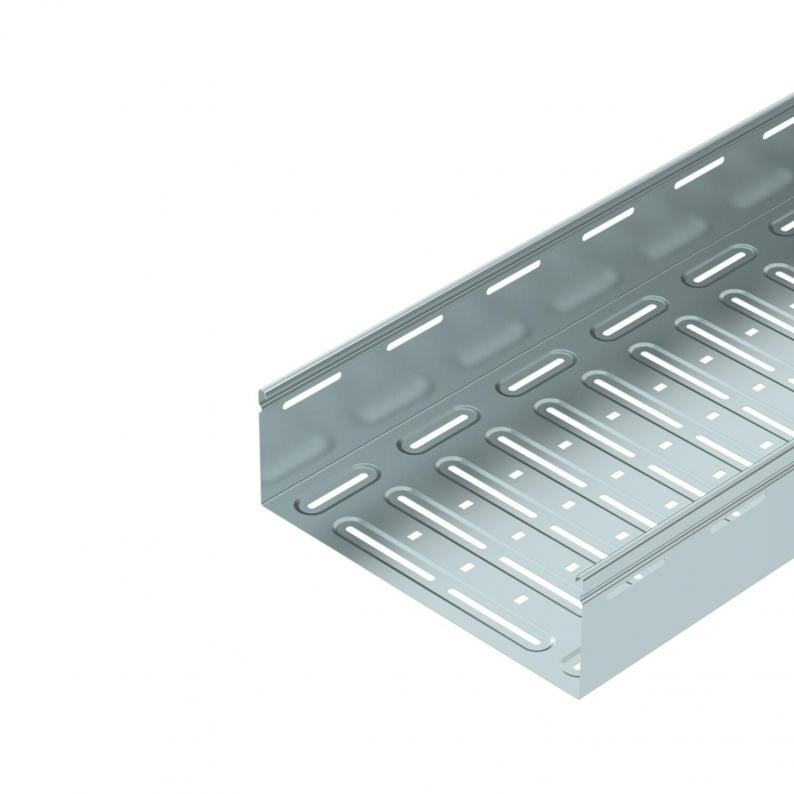

GKS 100 GX = perforated cable tray system with 100 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data
Dimension 100x300x3000 Load test type according to IEC 61537 Type II Material Steel Mounting perforation in base yes Plate thickness 1 mm Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 29800 mm² Usable cross-section 298 cm² Wide-span version no With cover no Dimensions
Dimension B 300 mm Dimension D 75 mm Dimension H 100 mm Dimension L 3000 mm Height 100 mm Length 3000 mm Width 300 mm Loads
Support spacing 1.0 m 1,5 kN/m Support spacing 1.5 m 1 kN/m Support spacing 2.0 m 0,8 kN/m Support spacing 2.5 m 0,7 kN/m Support spacing 3.0 m 0,6 kN/m Technical data
Load diagram, cable tray, type GKS GX100
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
- Downloads
-
Data sheet GKS GX 130 FT / 6483054 , 0.44MB , pdfCatalogue Cable support systems , 2.10MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfNo invitation to tender text is available for this product.
