Product description

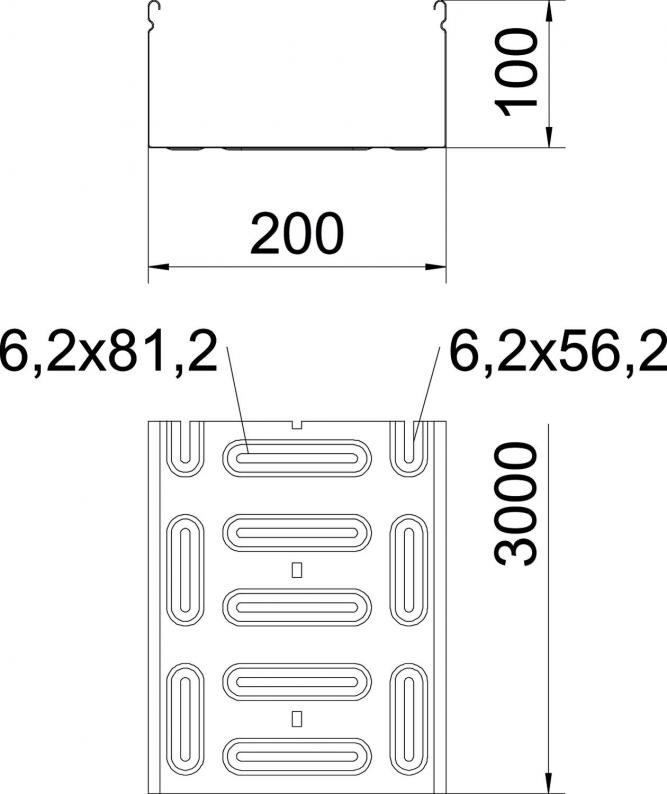

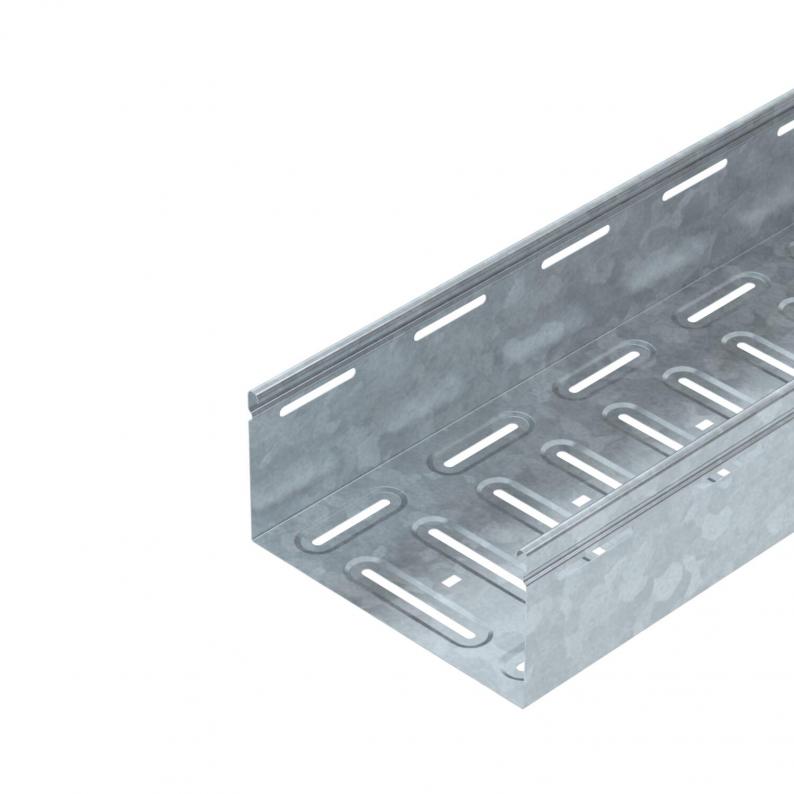

GKS 100 GX = perforated cable tray system with 100 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data
Dimension 100x200x3000 Load test type according to IEC 61537 Type II Material Steel Mounting perforation in base yes Plate thickness 0,9 mm Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 198 cm² Usable cross-section 19800 mm² Wide-span version no With cover no Dimensions
Dimension B 200 mm Dimension D 75 mm Dimension H 100 mm Dimension L 3000 mm Height 100 mm Length 3000 mm Width 200 mm Loads
Support spacing 1.0 m 1,5 kN/m Support spacing 1.5 m 1 kN/m Support spacing 2.0 m 0,8 kN/m Support spacing 2.5 m 0,7 kN/m Support spacing 3.0 m 0,6 kN/m Technical data
Load diagram, cable tray, type GKS GX100
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
-
All types
