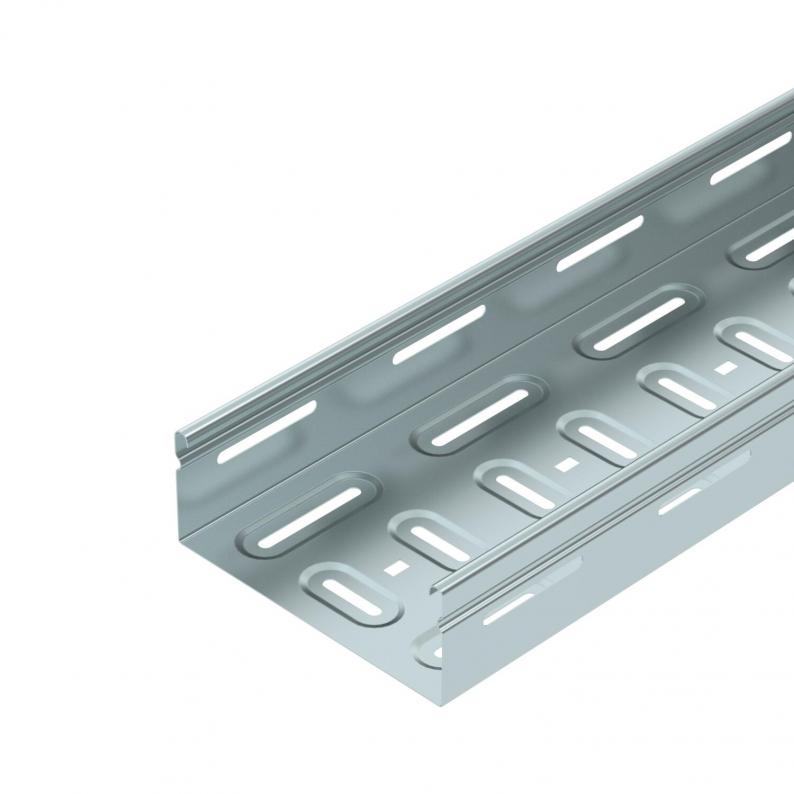

GKS GX 60 FS cable tray
Item no. 6480032 | EAN 4012195486404
- Product description
-
Product descriptionGKS 60 GX = perforated cable tray system with 60 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data

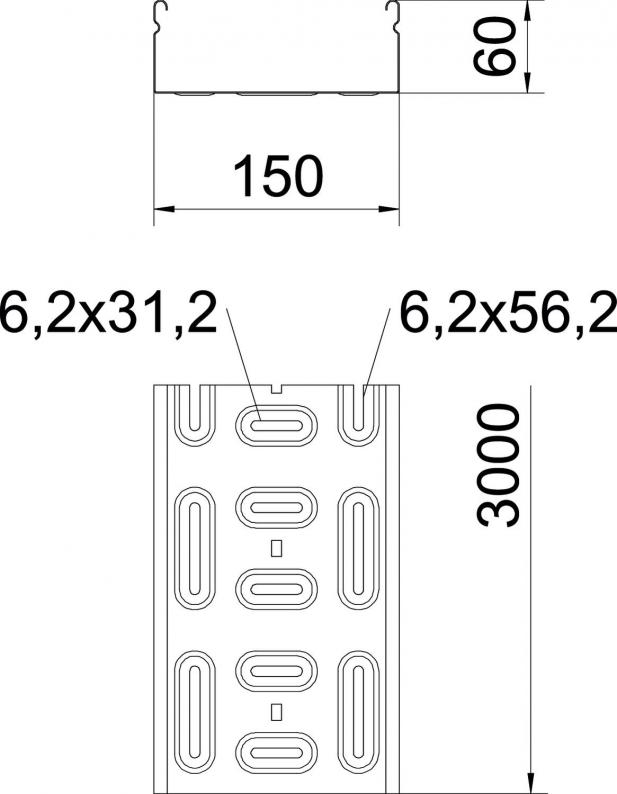

Colour zinc Connector version Without connectors Dimension 60x150x3000 Dimension B 150 mm Dimension D 25 mm Dimension H 60 mm Dimension L 3000 mm Height 60 mm Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 0,7 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 0,8 kN/m Support spacing 1.5 m 0,6 kN/m Support spacing 2.0 m 0,5 kN/m Support spacing 2.5 m 0,3 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 8800 mm² Usable cross-section 88 cm² Wide-span version no Width 150 mm With cover no Technical data
Load diagram, cable tray, type GKS GX60
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
