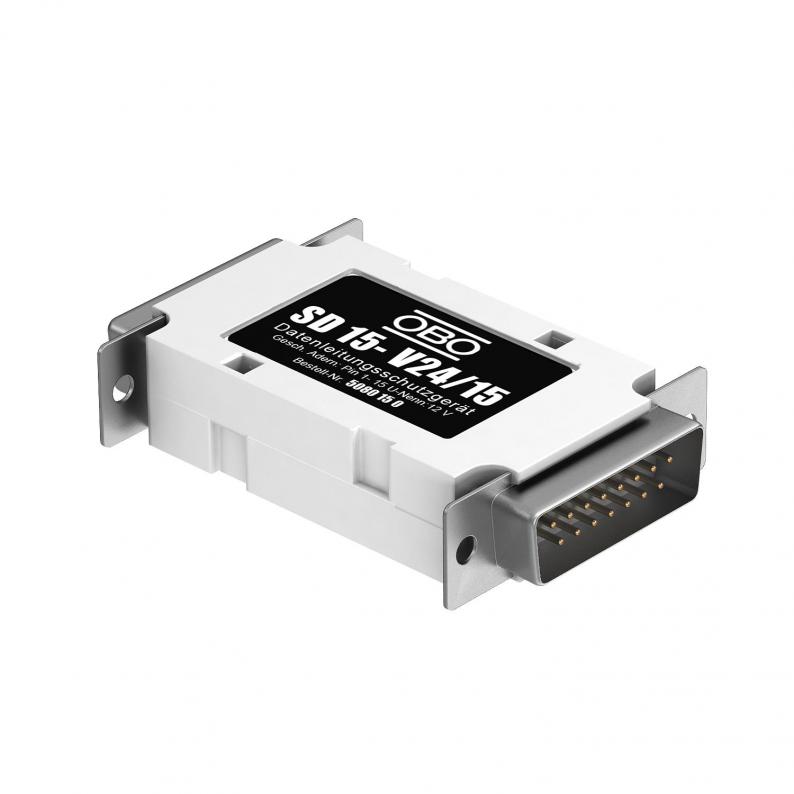

Fine protection for 15-pole RS232 interface

Item no. 5080150 | EAN 4012195916031

Item no. / Types

Number of poles

Version for

Maximum continuous voltage DC

Plug-in system

Product description

Product description

Data cable protection device for serial interfaces

• Various connection technologies available
• Low voltage protection level

Application: PLC, alarm systems, controllers

Technical data

Technical data

Arrestor monitoring	no
Dimension	12V
Explosion-tested version	no

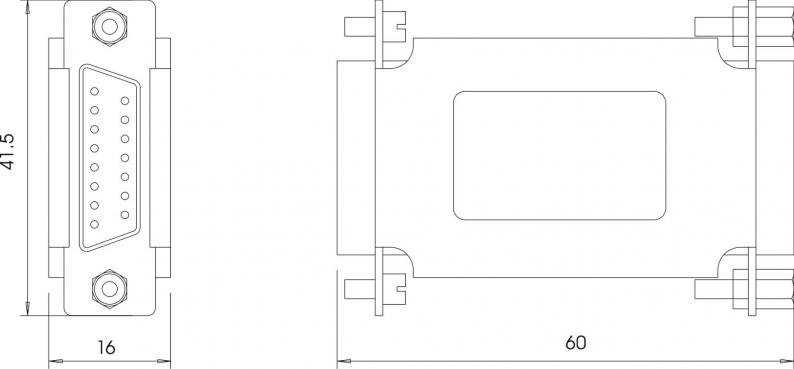

Height	41,5 mm
Impulse durability wire-earth	0,34 kA (8/20µs)
Impulse durability wire-wire	0,34 kA (8/20µs)
Kategorie	Type 3 / C1
Length	60 mm
Lightning protection zone LPZ	2→3
Maximum continuous voltage AC	12 V
Maximum continuous voltage DC	18 V
Nominal voltage	12 V
Number of poles	15
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C

Plug-in system	D-Sub 15-pin
Protection level wire-earth	<50 V
Protection level wire-wire	<50 V
Protection level, wire-earth at 1 kV/µs (C3)	<25
Protection level, wire-wire at 1 kV/µs (C3)	<25 V
Protection rating	IP40
Response time	<10 ns
Screening	Direct
Shielding connection available	yes
SPD to IEC 61643-21	Class III / C1
Telecommunications contact	no
Testing standard	IEC 61643-21
Version for	SUB-D-15; V24 RS232
Width	16 mm
