Earth rod BS with copper sheath 3000 | 25 | Stainless steel
morepic-1 morepic-2

Earth rod BS with copper sheath

Item no. 5450206 | EAN 4012197007720

Product description
Product description
• Made of steel with a copper jacket of min. 0.25 mm
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data

Technical data

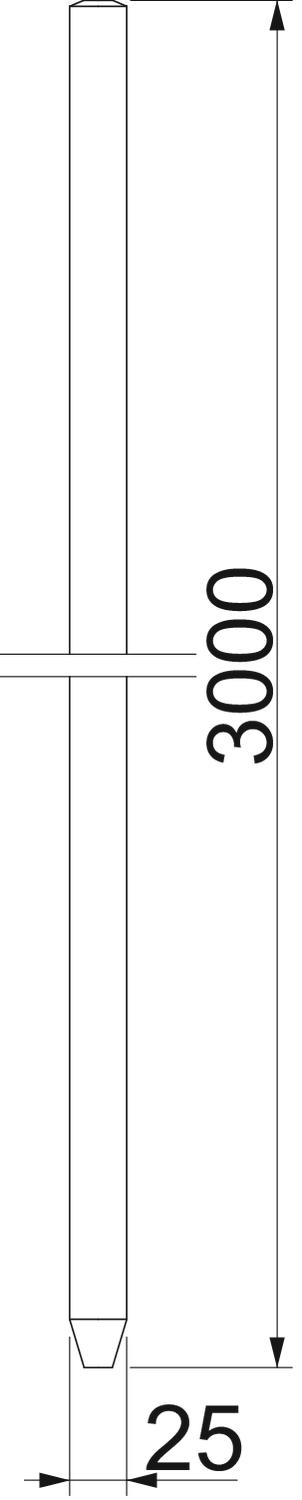

Dimension 25 M25
Dimension D 16 mm
External diameter 25 mm
Length 3000 mm
Material Stainless steel
Profile type Miscellaneous
All types

All types

Types Length External diameter Material Item no. Quantity SSU
17 1200 CCER 1200 mm 17 mm Steel 5450011
1 piece
25 2000 CCER 2000 mm 25 mm Steel 5450026
1 piece
16 1200 CBER 1200 mm 16 mm Steel 5450150
5 piece
16 1500 CBER 1500 mm 16 mm Steel 5450152
5 piece
16 1800 CBER 1800 mm 16 mm Steel 5450154
5 piece
16 3000 CBER 3000 mm 16 mm Steel 5450156
5 piece
20 1200 CBER 1200 mm 20 mm Steel 5450160
5 piece
20 1500 CBER 1500 mm 20 mm Steel 5450162
5 piece
20 1800 CBER 1800 mm 20 mm Steel 5450164
5 piece
20 3000 CBER 3000 mm 20 mm Steel 5450166
5 piece
25 3000 CBER 3000 mm 25 mm Steel 5450168
5 piece
16 1200 SER 1200 mm 16 mm Copper 5450180
5 piece
16 1500 SER 1500 mm 16 mm Copper 5450182
5 piece
16 1800 SER 1800 mm 16 mm Copper 5450184
5 piece
16 3000 SER 3000 mm 16 mm Copper 5450186
5 piece
20 1200 SER 1200 mm 20 mm Copper 5450190
5 piece
20 1500 SER 1500 mm 20 mm Copper 5450192
5 piece
20 1800 SER 1800 mm 20 mm Copper 5450194
5 piece
20 3000 SER 3000 mm 20 mm Copper 5450196
5 piece
14 3000 SS316 3000 mm 14.2 mm Stainless steel 5450200
5 piece
17 3000 SS316 3000 mm 17 mm Stainless steel 5450202
5 piece
20 3000 SS316 3000 mm 20 mm Stainless steel 5450204
5 piece
25 3000 SS316 3000 mm 25 mm Stainless steel 5450206
5 piece
14 3000 CBER 250 3000 mm 14.2 mm Steel 5450210
5 piece
17 3000 CBER 250 3000 mm 17 mm Steel 5450212
5 piece
20 3000 CBER 250 3000 mm 20 mm Steel 5450214
5 piece
