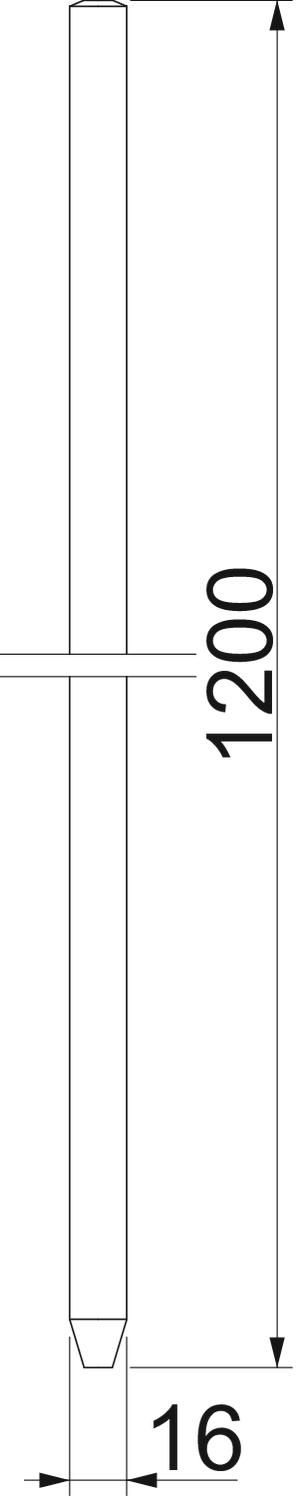

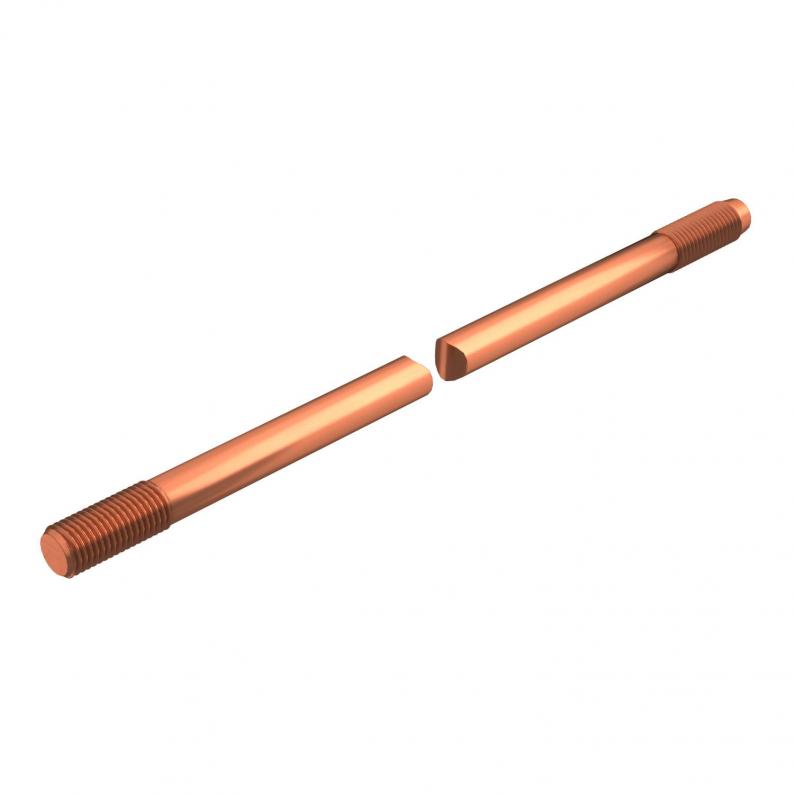

Earth rod BS with copper sheath

Item no. / Types

Length

External diameter

Material

Product description

Product description

• Made of steel with a copper sheath
• Complies with the requirements of VDE 0185-305 (IEC 62305)

Technical data

All types

All types

Types	Length	External diameter	Material	Item no.	Quantity	SSU
17 1200 CCER	1200 mm	17 mm	Steel	5450011	piece	1 piece
25 2000 CCER	2000 mm	25 mm	Steel	5450026	piece	1 piece
16 1200 CBER	1200 mm	16 mm	Steel	5450150	piece	5 piece
16 1500 CBER	1500 mm	16 mm	Steel	5450152	piece	5 piece
16 1800 CBER	1800 mm	16 mm	Steel	5450154	piece	5 piece
16 3000 CBER	3000 mm	16 mm	Steel	5450156	piece	5 piece
20 1200 CBER	1200 mm	20 mm	Steel	5450160	piece	5 piece
20 1500 CBER	1500 mm	20 mm	Steel	5450162	piece	5 piece
20 1800 CBER	1800 mm	20 mm	Steel	5450164	piece	5 piece
20 3000 CBER	3000 mm	20 mm	Steel	5450166	piece	5 piece
25 3000 CBER	3000 mm	25 mm	Steel	5450168	piece	5 piece
16 1200 SER	1200 mm	16 mm	Copper	5450180	piece	5 piece
16 1500 SER	1500 mm	16 mm	Copper	5450182	piece	5 piece
16 1800 SER	1800 mm	16 mm	Copper	5450184	piece	5 piece
16 3000 SER	3000 mm	16 mm	Copper	5450186	piece	5 piece
20 1200 SER	1200 mm	20 mm	Copper	5450190	piece	5 piece
20 1500 SER	1500 mm	20 mm	Copper	5450192	piece	5 piece
20 1800 SER	1800 mm	20 mm	Copper	5450194	piece	5 piece
20 3000 SER	3000 mm	20 mm	Copper	5450196	piece	5 piece
14 3000 SS316	3000 mm	14.2 mm	Stainless steel	5450200	piece	5 piece
17 3000 SS316	3000 mm	17 mm	Stainless steel	5450202	piece	5 piece
20 3000 SS316	3000 mm	20 mm	Stainless steel	5450204	piece	5 piece
25 3000 SS316	3000 mm	25 mm	Stainless steel	5450206	piece	5 piece
14 3000 CBER 250	3000 mm	14.2 mm	Steel	5450210	piece	5 piece
17 3000 CBER 250	3000 mm	17 mm	Steel	5450212	piece	5 piece
20 3000 CBER 250	3000 mm	20 mm	Steel	5450214	piece	5 piece
