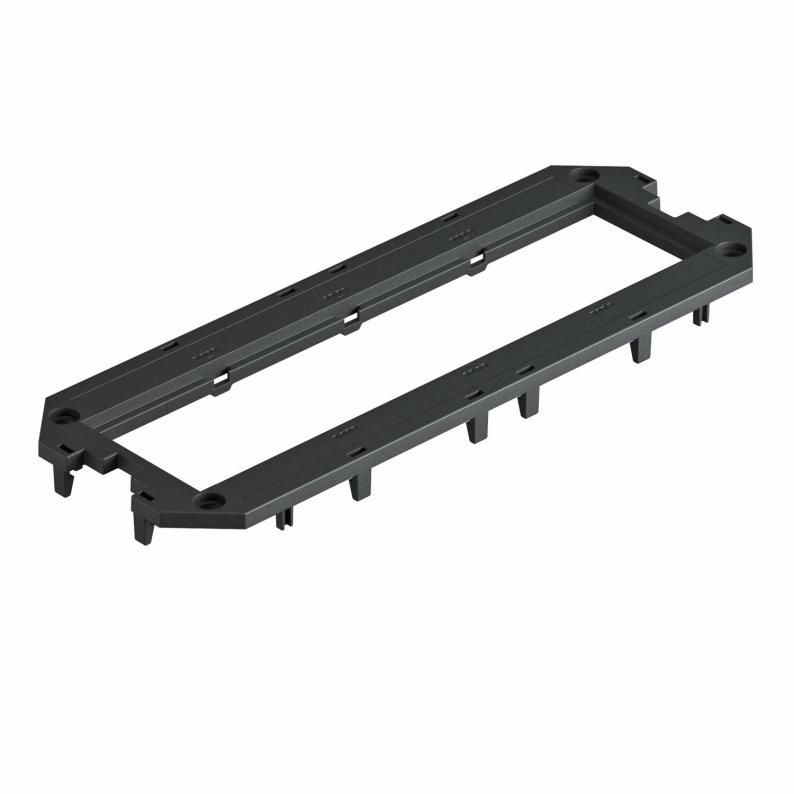

Cover plate for universal support UT4, Modul 45® installation opening
Type UT4 P4
|Item no. 7408763
|EAN 4012196435340
Item no. / Type
7408763 / UT4 P4
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate for the installation of 4 Modul 45 devices.
Mounting bridge UT34T for the installation of individual devices or socket combinations should be ordered separately.
Mounting bridge UT34T for the installation of individual devices or socket combinations should be ordered separately.
Technical data
Dimensions
| Length | 208 mm |
|---|
Technical data
| Labelling panel | no |
|---|---|
| Application | Mounting box |
| Number of installable devices | 4 |
| Blanking lid | no |
| Installation technology | Grid M45 |
| Number of single openings | 0 |
| Number of double openings | 0 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT4 | 1/1 |
| Fastening type | Lockable |

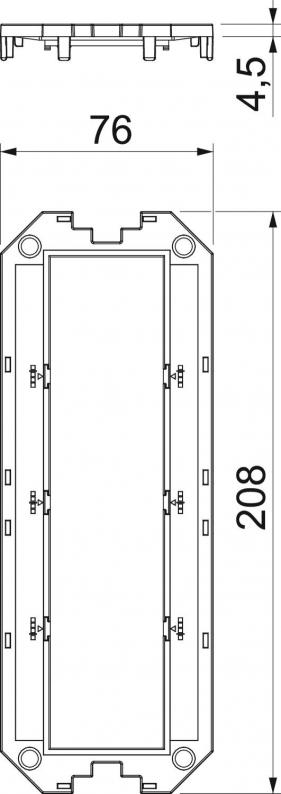

| Dimension | 208x76x4 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1609 kg CO2e / 1 Piece |
