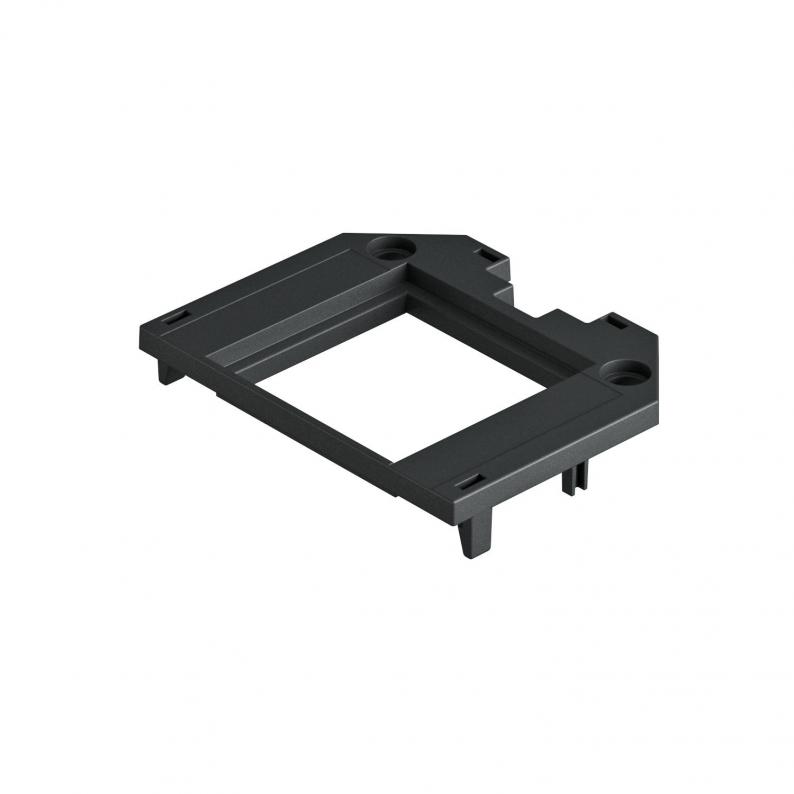

Cover plate for universal support UT3 and UT4, Modul 45® installation opening
Type UT34 P1
|Item no. 7408771
|EAN 4012196435357
Item no. / Type
7408771 / UT34 P1
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate for the installation of 1 Modul 45.
Technical data
Dimensions
| Length | 61 mm |
|---|
Technical data
| Labelling panel | yes |
|---|---|
| Application | Mounting box |
| Number of installable devices | 1 |
| Blanking lid | no |
| Installation technology | Grid M45 |
| Number of single openings | 1 |
| Number of double openings | 0 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 1 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT3 | 1/3 |
| Division in UT4 | 1/4 |
| Fastening type | Lockable |

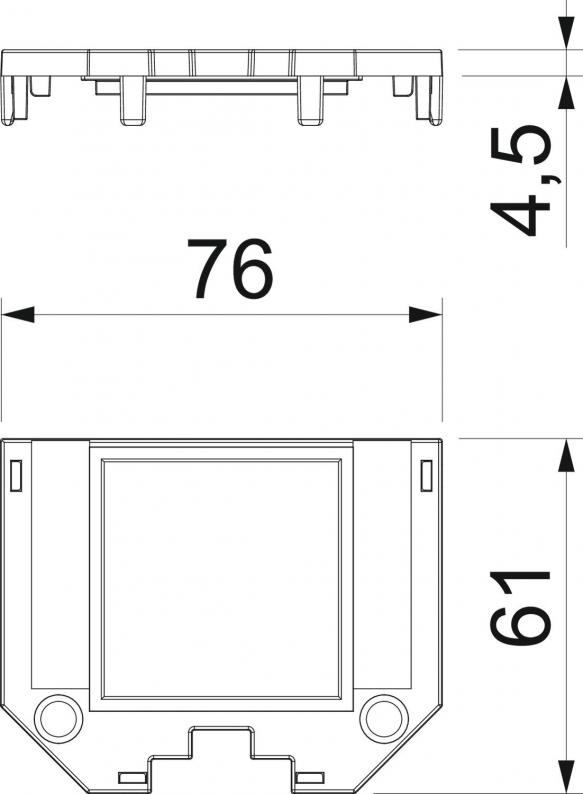

| Dimension | 61x76x4 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0498 kg CO2e / 1 Piece |
