- Product description
-

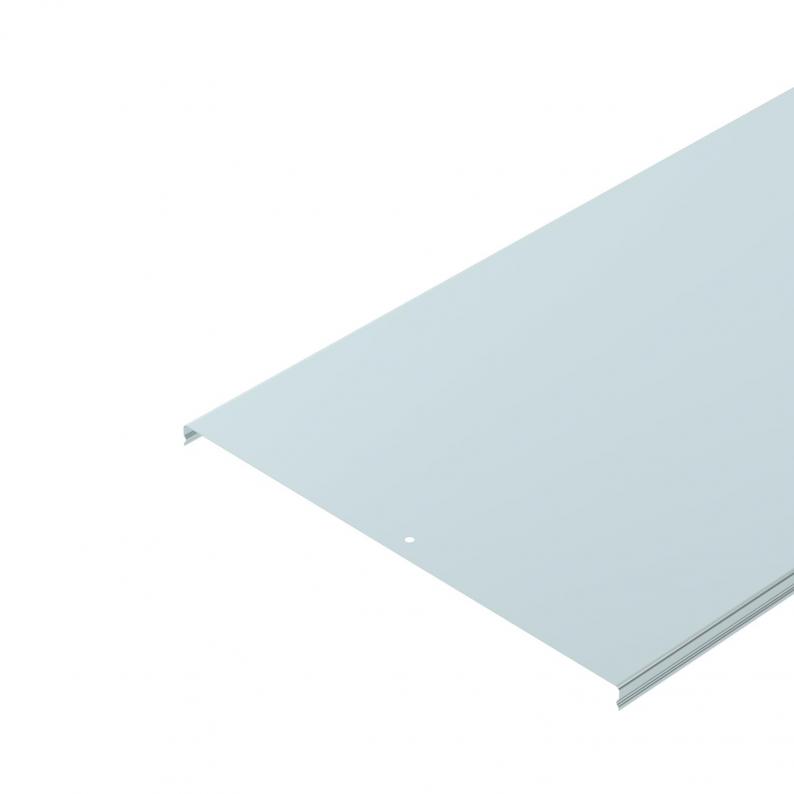

Product descriptionUnperforated cover for cable trays for direct attachment.
When using covers outdoors, additional measures against the influence of wind must be taken.
- Technical data
-
Technical data

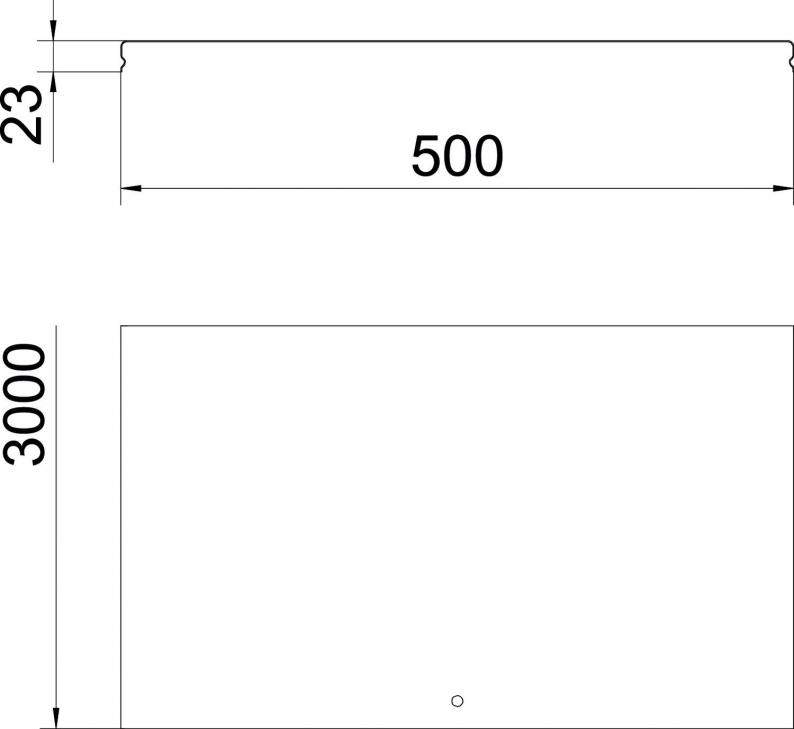

Colour zinc Dimension 500x3000 Dimension B 500 mm Dimension D 8 mm Dimension L 3000 mm Fastening type Locking Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 0,7 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Width 500 mm - All types
- Downloads
-
Data sheet GDRL 500 FS / 6480106 , 0.16MB , pdfCatalogue Cable support systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity GDRL 500 FS / 6480106 , 0.10MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
