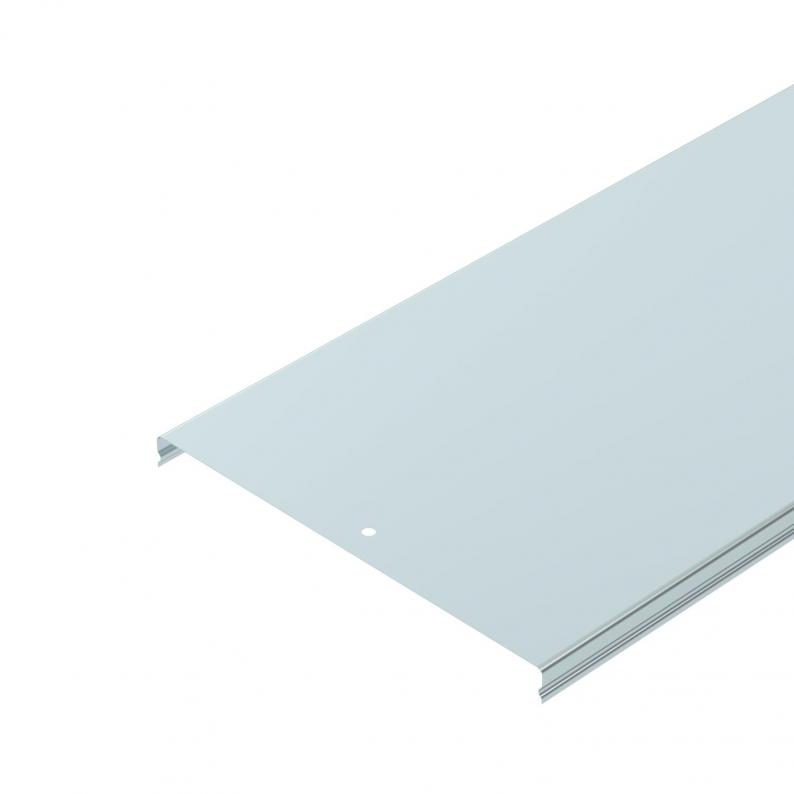

Cover, GKS FS cable tray

Item no. 6480104 | EAN 4012195486626

3000 mm
Product description

Product description

Unperforated cover for cable trays for direct attachment.
When using covers outdoors, additional measures against the influence of wind must be taken.
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
Technical data

Technical data

Dimension 300x3000
Fastening type Locking
Maintain electrical functions no
Material Steel
Plate thickness 0,6 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Strip galvanized

Dimensions

Dimension B 300 mm
Dimension D 8 mm
Dimension L 3000 mm
Length 3000 mm
Width 300 mm
All types

All types

Types Length Width Plate thickness Item no. Quantity SSU

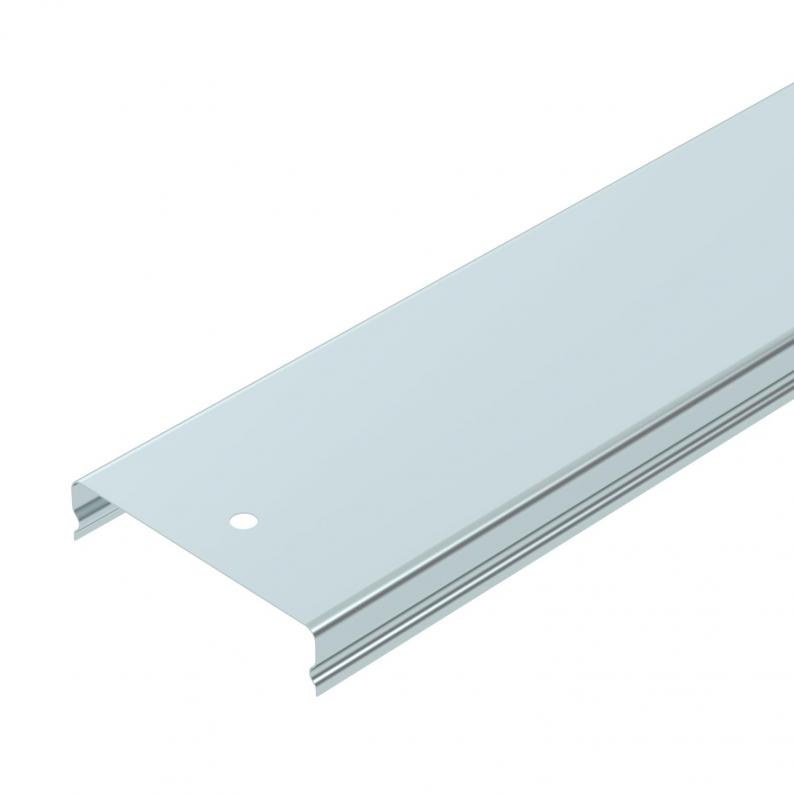

GDRL 100 FS 3000 mm 100 mm 0.6 mm 6480101
3 m
GDRL 150 FS 3000 mm 150 mm 0.6 mm 6480102
3 m
GDRL 200 FS 3000 mm 200 mm 0.6 mm 6480103
3 m
GDRL 300 FS 3000 mm 300 mm 0.6 mm 6480104
3 m
GDRL 400 FS 3000 mm 400 mm 0.7 mm 6480105
3 m
GDRL 500 FS 3000 mm 500 mm 0.7 mm 6480106
3 m
