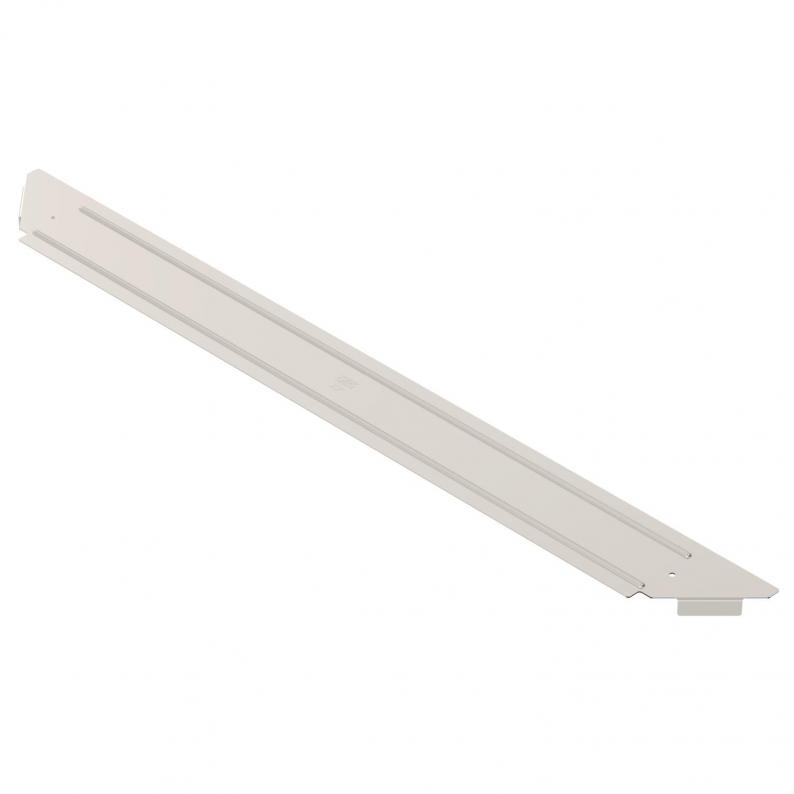

Cover for add-on tee A2

Item no. 6042463 | EAN 4012197407070

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Colour	stainless steel
Dimension	B600mm
Fastening type	On top
Material	Stainless steel
Material thickness	1 mm
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Bright, treated
Wide-span version	no
Width	600 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RAAD 100 A2	100 mm	0.75 mm	6042451	piece	1 piece
RAAD 200 A2	200 mm	0.75 mm	6042455	piece	1 piece
RAAD 300 A2	300 mm	0.75 mm	6042457	piece	1 piece
RAAD 400 A2	400 mm	1 mm	6042459	piece	1 piece
RAAD 500 A2	500 mm	1 mm	6042461	piece	1 piece
RAAD 600 A2	600 mm	1 mm	6042463	piece	1 piece
