Cover for 90° bend, horizontal FS 300 | 1

morepic-1

morepic-2

Cover for 90° bend, horizontal FS

Item no. 6480154 | EAN 4012195486930

Item no. / Types

Width

Plate thickness	1 mm

Product description

Product description

Lock-on cover for the 90° bend.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Dimension	B300mm
Dimension B	300 mm
Dimension D	8 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no

Material	Steel
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	300 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
GKSDB 90 100 FS	100 mm	1 mm	6480151	piece	1 piece
GKSDB 90 150 FS	150 mm	1 mm	6480152	piece	1 piece
GKSDB 90 200 FS	200 mm	1 mm	6480153	piece	1 piece
GKSDB 90 300 FS	300 mm	1 mm	6480154	piece	1 piece
GKSDB 90 400 FS	400 mm	1 mm	6480155	piece	1 piece
GKSDB 90 500 FS	500 mm	1 mm	6480156	piece	1 piece

Downloads

Data sheet GKSDB 90 300 FS / 6480154 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Cable tray systems MKS SKS , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity GKSDB 90 300 FS / 6480154 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic GKSDB 90 300 FS / 6480154, 24.07 kB, jpg

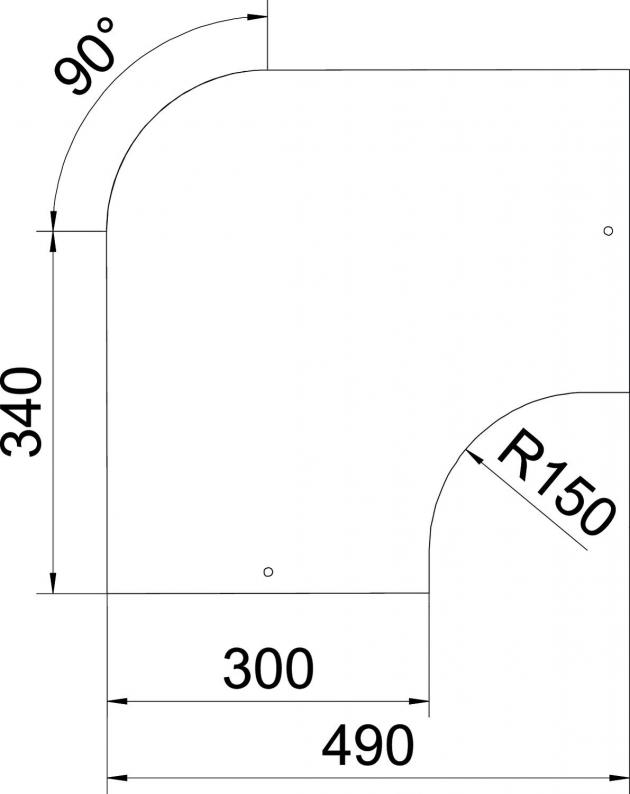

Scale drawing GKSDB 90 300 FS / 6480154, 55.71 kB, jpg

No invitation to tender text is available for this product.
