Cover for 45° bend, horizontal FS 400 |

morepic-1

morepic-2

Cover for 45° bend, horizontal FS

Item no. 6480195 | EAN 4012195487234

Item no. / Types

Width

Product description

Product description

Lock-on cover for the 45° bend.

Technical data

Technical data

Bend (angle)	45°
Change of direction	Horizontal
Colour	zinc
Dimension	B400mm
Dimension B	400 mm
Dimension D	8 mm
Fastening type	Locking
Hinged	no

Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	400 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
GKSDB 45 100 FS	100 mm	6480191	piece	1 piece
GKSDB 45 150 FS	150 mm	6480192	piece	1 piece
GKSDB 45 200 FS	200 mm	6480193	piece	1 piece
GKSDB 45 300 FS	300 mm	6480194	piece	1 piece
GKSDB 45 400 FS	400 mm	6480195	piece	1 piece
GKSDB 45 500 FS	500 mm	6480196	piece	1 piece

Downloads

Data sheet GKSDB 45 400 FS / 6480195 , 0.16MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Cable tray systems MKS SKS , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity GKSDB 45 400 FS / 6480195 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

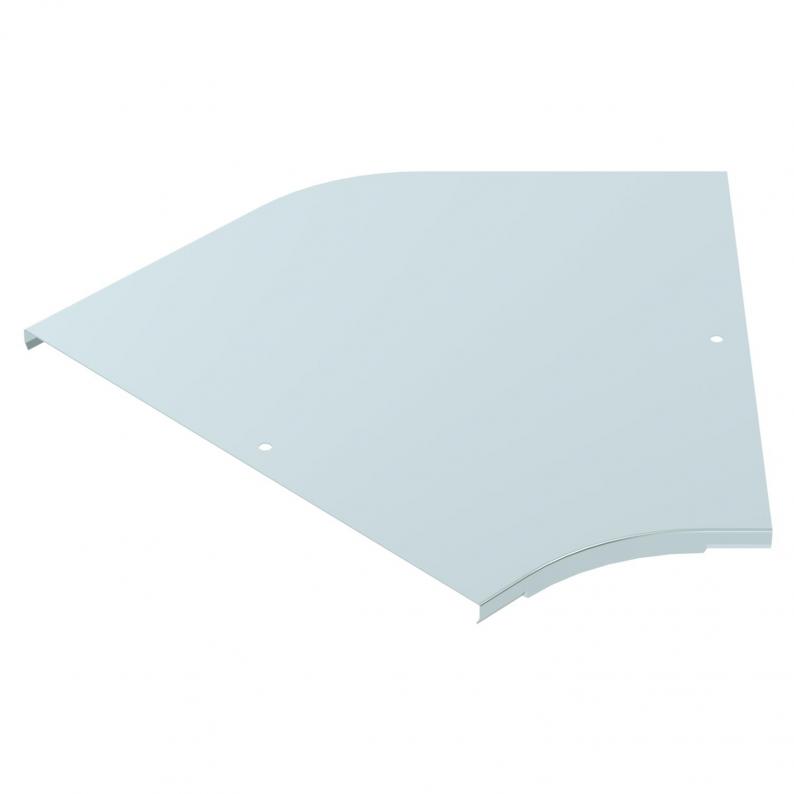

Product graphic GKSDB 45 400 FS / 6480195, 24.71 kB, jpg

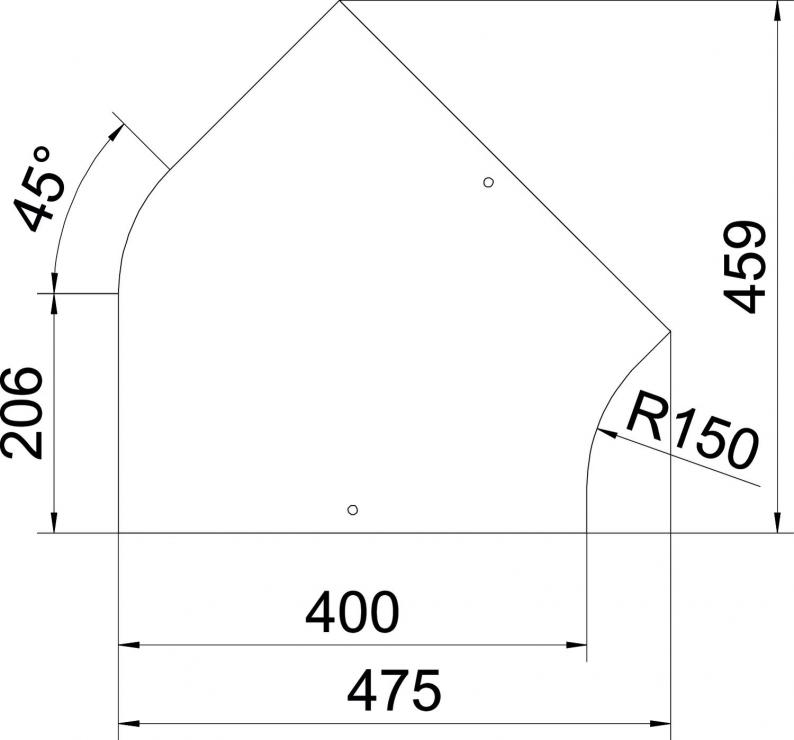

Scale drawing GKSDB 45 400 FS / 6480195, 69.82 kB, jpg

No invitation to tender text is available for this product.
