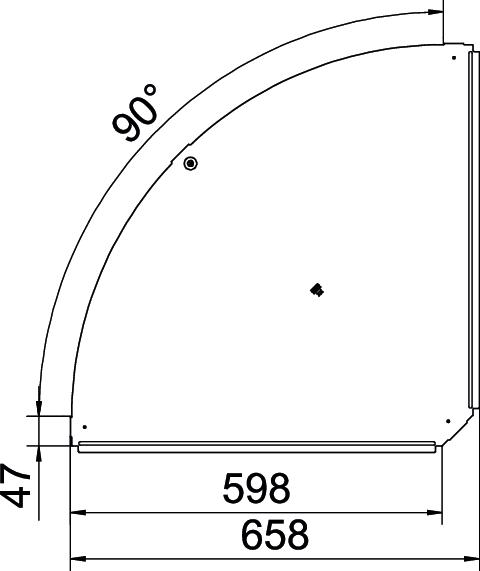

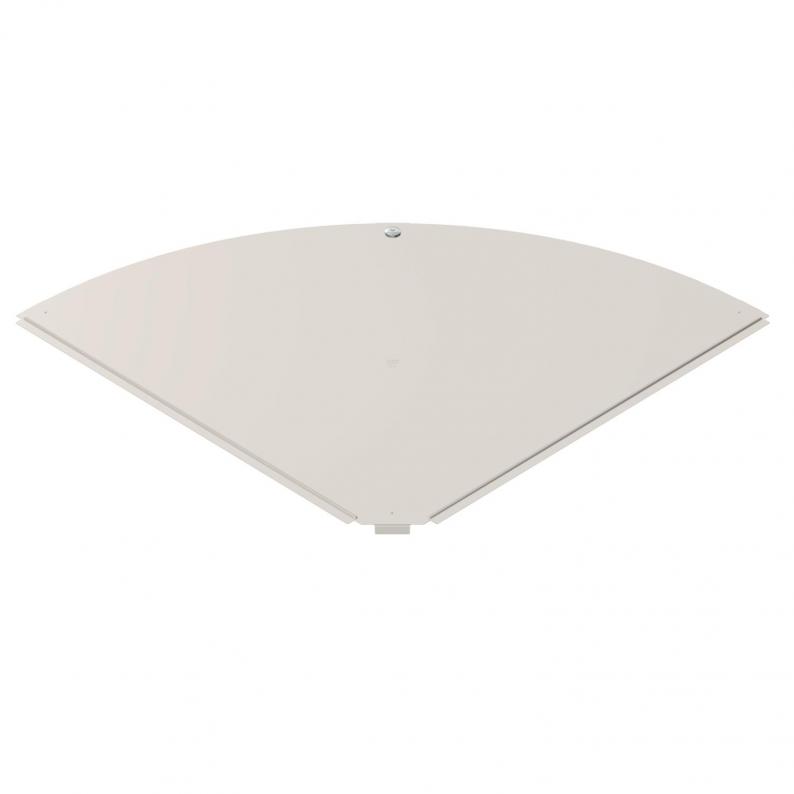

Cover, 90° bend A2

Item no. 6036982 | EAN 4012197406028

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	stainless steel
Dimension	B600mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Stainless steel
Number of turn buckles	1 St.

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	600 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RBD 90 100 A2	100 mm	0.75 mm	6036970	piece	1 piece
RBD 90 200 A2	200 mm	0.75 mm	6036974	piece	1 piece
RBD 90 300 A2	300 mm	0.75 mm	6036976	piece	1 piece
RBD 90 400 A2	400 mm	1 mm	6036978	piece	1 piece
RBD 90 500 A2	500 mm	1 mm	6036980	piece	1 piece
RBD 90 600 A2	600 mm	1 mm	6036982	piece	1 piece
